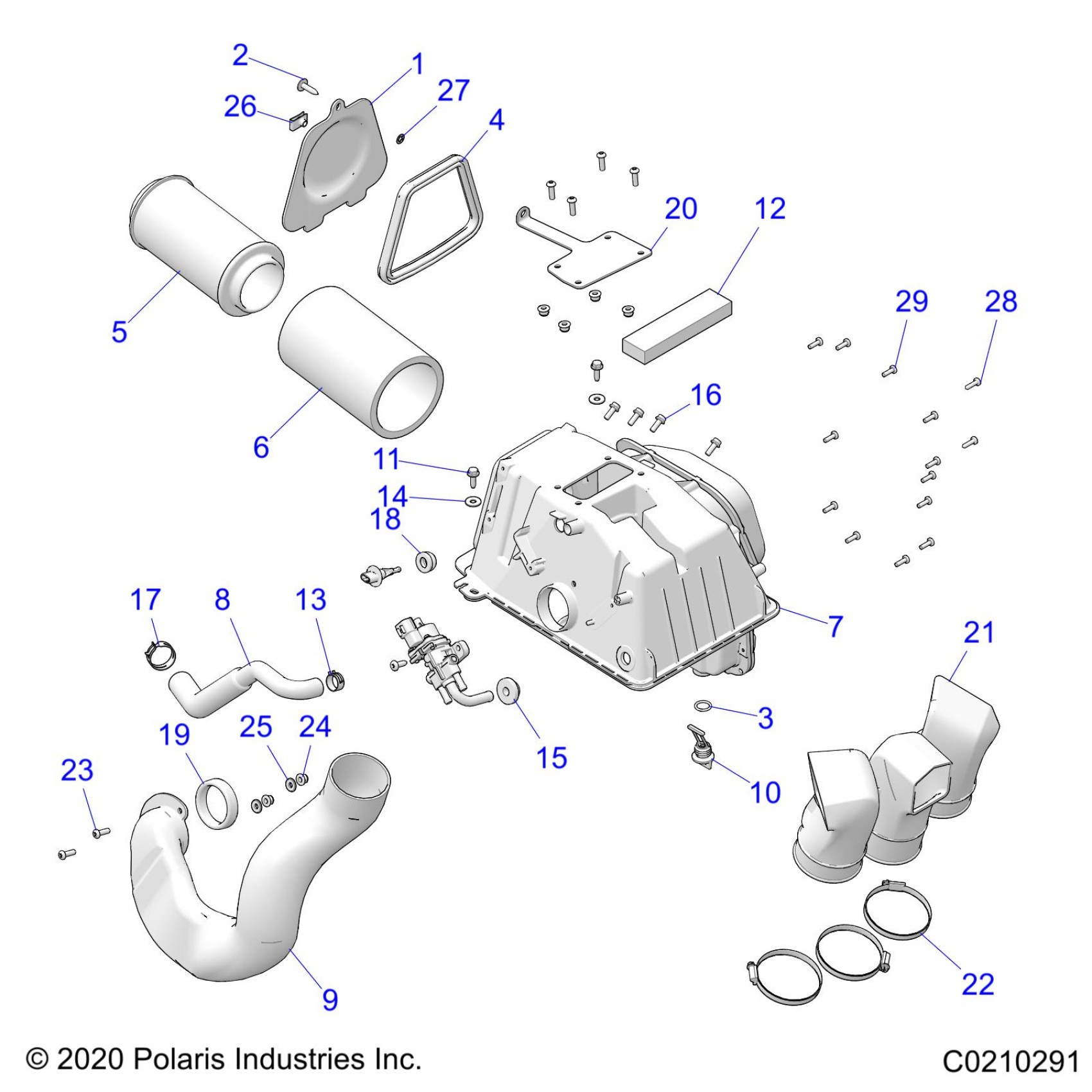

Polaris SPORTSMAN 850 HIGH LIFTER (R02) - A21SXN85A4 ENGINE, AIR INTAKE - A21SXN85A4 (C0210291) Diagram

#

Description
Price

1

COVER, AIRBOX

5261827

$55.99

2

SCR-1/4-20X1.00 TR/TX-M

7517685

$1.59

3

O-RING

5414246

$1.59

4

SEAL, AIRBOX COVER

5814345

$27.99

5

FILTER, AIR INTAKE

7082101

Unavailable

5

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

6

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

7

ASM-AIR INTAKE,BOX W/RUNNERS

1240953

$167.99

8

HOSE, BREATHER, TWIN

5414322

$39.99

9

DUCT-AIR INLET,FRONT

5452407

$59.99

10

PLUG, AIR BOX

5451429

$14.39

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

FOAM-CAB,SGUARD,254X38.1X19.05

5813409

$6.39

13

CLAMP-HOSE,SPRING .81

7081026

$7.99

14

WASHER-FL .281X.750X.062-Y

7555859

$1.49

15

GROMMET, SUPPORT, TRUNK

5413423

$3.19

16

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

17

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

18

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.79

19

SEAL-AIRBOX,INTAKE DUCT

5814346

$1.59

20

PLATE-CLOSEOUT

5261826

$27.99

21

BOOT-AIR NTAKE

5415531

$55.99

22

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

23

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

24

NUT-M6 FLANGE,NYLOC

7547274

$1.49

25

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

26

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

27

RETAINER-BOLT,1/4-20

7670154

$1.49

28

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M �

7512026

$1.49

29

SCREW-10X5/8-HI/LO,PN-T25,TRX-M �

7518238

$3.99
