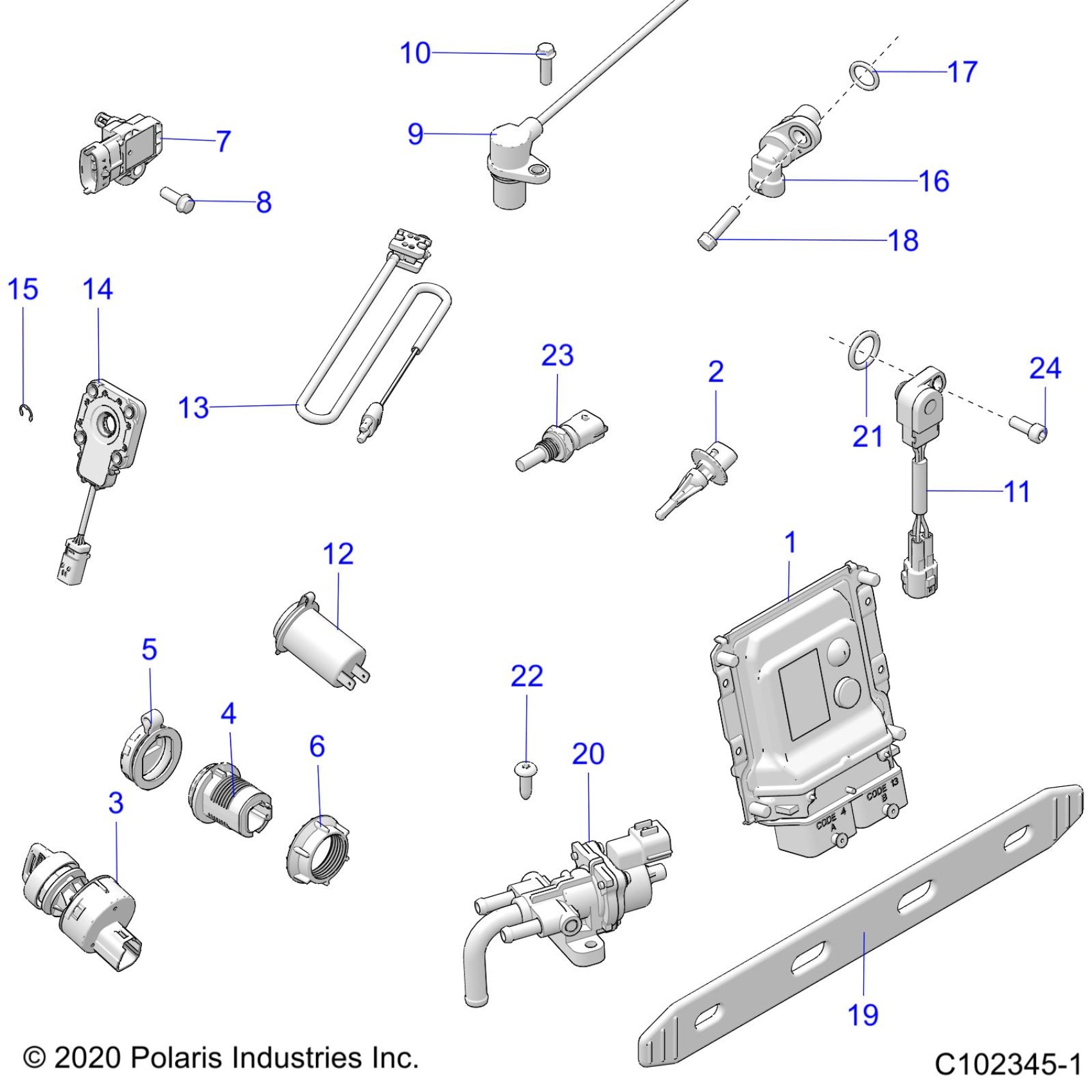

Polaris SPORTSMAN 850 EPS 48" (R02) - A21SXE85A9/AF/AP/CA9/CAF/CAP ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A21SXE85A9/AF/AP/CA9/CAF/CAP (C102345-1) Diagram

ECU, BASE, M17

4012838

$565.24

Sensor, Air Temperature

2410687

$153.79

SWITCH-KEY,3 POS,SEALED [INCL. SWITCH, COVER, and NUT]

4017237

$57.76

KEY SWITCH KEY COVER

5433534

$13.75

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

PLUG-HARNESS CHARGE PORT

2415198

$44.51

ASM-CHARGE PORT,BASE [INCL. PLUG, CAP, and NUT]

2415295

$44.51

CAP-CHARGE PORT

5417215

$12.94

NUT-CHARGE PORT

5456622

$44.51

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCR-SENSOR TMAP [USED WITH T-MAP SENSOR]

3131726

$3.17

Sensor, Crank Position

2411589

$79.37

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

SENSOR, THROTTLE POSITION

2412634

$259.03

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7662383

$113.32

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

SENSOR-SPEED,TRANS

4013908

$109.27

O-RING, -113 VITON

3233840

$11.32

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

STRAP, ECU

5414193

$27.78

KIT, HARNESS, IAC

2878507

$179.99

VALVE, IAC

4013313

$222.68

O-RING

3131729

$14.99

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

SENSOR-THERMISTER

4010644

$91.97

Screw [MAG Side]

3131010

$4.76
