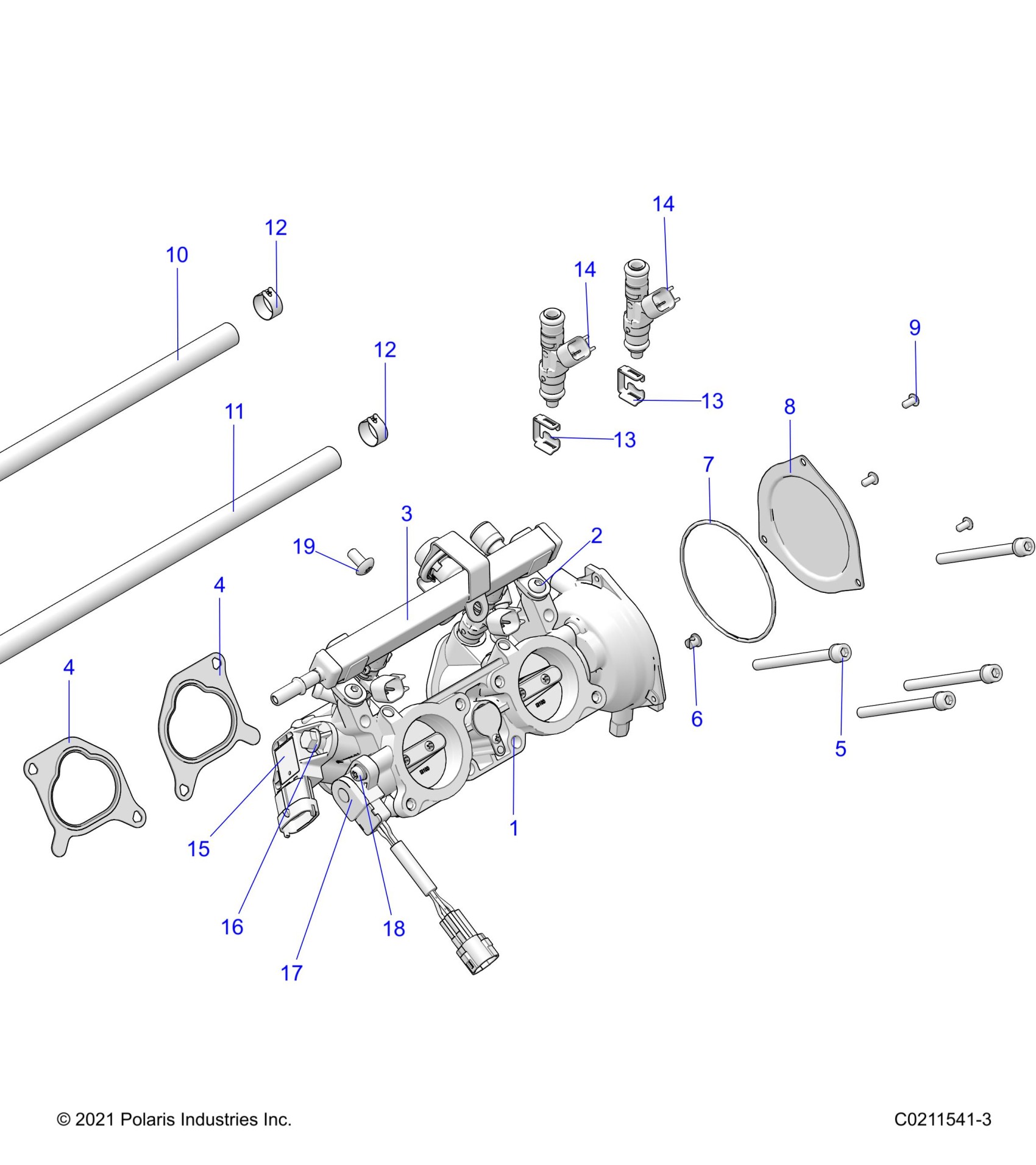

Polaris SPORTSMAN 850 EPS 48" (R01) - A23SXA85A6/A1/E85A9/AG/AM ENGINE, THROTTLE BODY - A23SXA85A6/A1/EA9/AG/AM (C0211541-3) Diagram

K-THROTTLE BODY [INCL. THROTTLE BODY, 1-3,6-9,13-18]

2208004

$999.99

BOLT, FUEL RAIL

3131716

$4.76

ASM., FUEL RAIL

----

Unavailable

GASKET, ITB

5814296

$13.75

GASKET, ITB

5814296

$13.75

SCREW

5137620

$5.56

CABLE GUIDE,MIKUNI BTM36/30

3130543

$32.37

O-RING, THROTTLE CAM COVER

5413599

$12.13

COVER, THROTTLE CAM [TO 10/4/2024]

5252518

$53.32

COVER, THROTTLE CAM [FRM 10/4/2024]

5262110

$15.37

SCREW-MIKUNI C2=0408 [TO 10/4/2024]

3130592

$1.59

SCREW [FRM 10/4/2024]

7519292

$0.79

Hose, Fuel

8450123-153

$104.99

Hose, Fuel

8450123-153

$104.99

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

CLIP-INJECTOR

3131725

$12.43

CLIP-INJECTOR

3131725

$12.43

INJECTOR-180G/MIN SINGLE CONE

1203568

$99.21

INJECTOR-180G/MIN SINGLE CONE

1203568

$99.21

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCR-SENSOR TMAP [T-MAP SCREW]

3131726

$3.17

SENSOR, THROTTLE POSITION

2412634

$259.03

Screw [MAG Side] [TPS SCREW]

3131010

$4.76

SCR-BTNHD,M6X12,TX,TMPRF,188SS

7518808

$11.99
