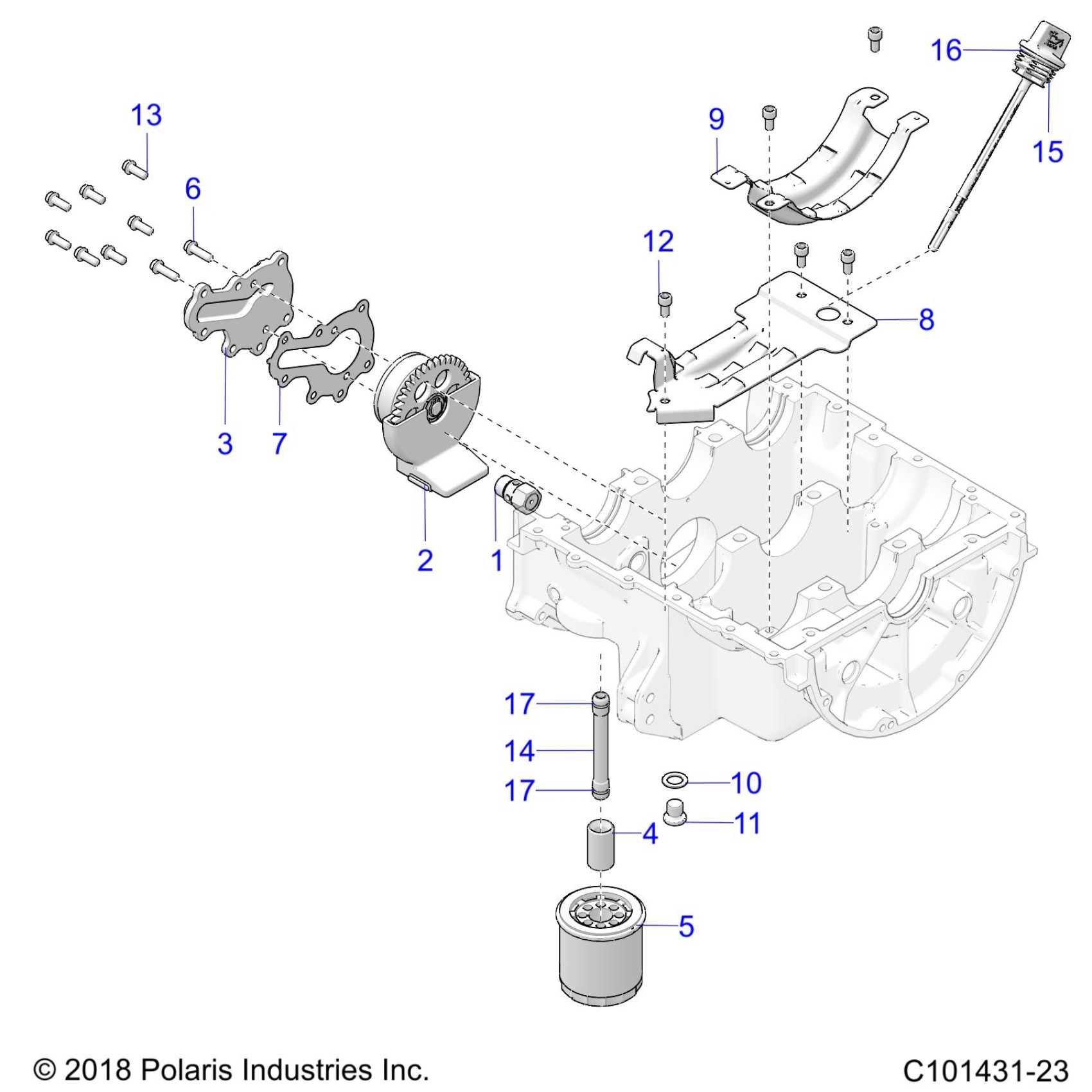

Polaris SPORTSMAN 850 EPS 48" (R01) - A23SXA85A6/A1/E85A9/AG/AM ENGINE, OIL SYSTEM - A23SXA85A6/A1/EA9/AG/AM (C101431-23) Diagram

ASM-REGULATOR VALVE,85 PSI

2520672

$43.99

ASM., PUMP, OIL

2521041

$155.99

CAP, OIL PUMP

2520560

$31.99

ADAPTOR-FILTER,STRAIGHT

2521530

$31.99

FILTER-OIL,10 MICRON

2520799

$11.99

FILTER-HD,OIL (3.355) [HD OPTION]

2522498

$15.99

SCREW-HXFL-M6X1.0X20 8.8 ZY3 [TO 6/1/2023]

7518576

$3.19

SCREW-HXFL-M6X1.0X20 8.8 ZY3 [FRM 6/1/2023][INCL 7518576 W/SEALANT]

7528224

$4.79

SEAL, OIL PUMP CAP

3610128

$6.39

PLATE, WINDAGE, PTO

5257984

$51.99

PLATE, WINDAGE, MAG

5250397

$31.99

WASHER-19X12X1.3,COPPER [TO 5/30/2025]

5812232

$1.59

WASHER-COPPER SEALING [FRM 5/30/2025]

7556937

$2.39

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

SCREW-SH-M6X1.0X12 10.9 ZPB D204

7517739

$9.59

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

TUBE, OIL TRANSFER [INCL. 17]

2522027

$27.99

DIPSTICK, OIL FILL [INCL. 5412530]

2521028

$31.99

O-RING-26.65X2.62,0600083

5412530

$1.59

O-RING,.364X.504X.07, 0600083

5413007

Unavailable

O-RING,.364X.504X.07, 0600083

5413007

Unavailable
