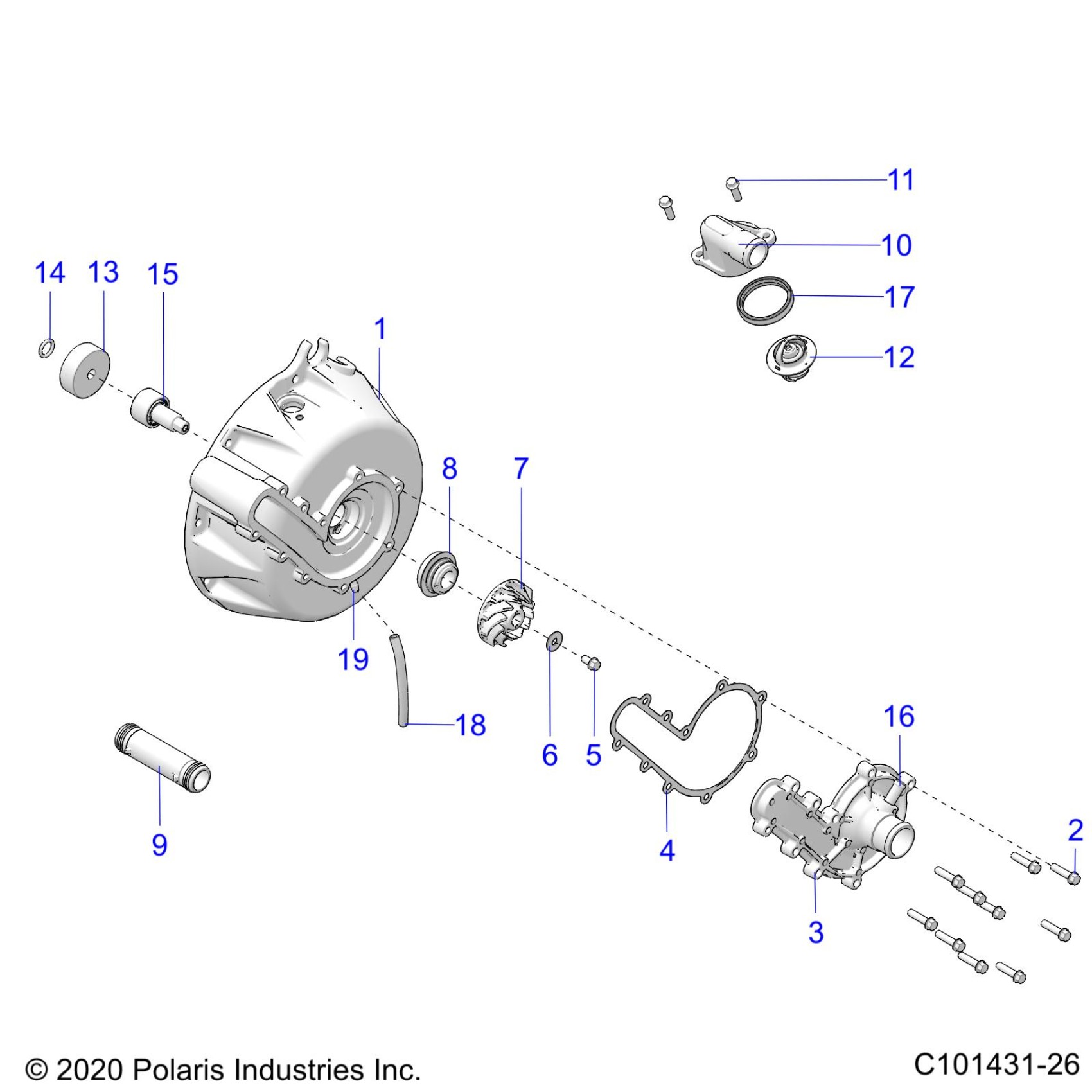

Polaris SPORTSMAN 850 EPS 48" (R01) - A23SXA85A6/A1/E85A9/AG/AM ENGINE, COOLING SYSTEM and WATER PUMP - A23SXA85A6/A1/EA9/AG/AM (C101431-26) Diagram

Description

Price

ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19]

1208906

$489.99

COVER-STATOR W/WATERPMP [COVER ONLY]

5144073

$89.99

SCREW

7518855

$2.38

COVER-WATERPMP W/BP [INCL. COVER, FITTING, GASKET]

5144074

$68.79

GASKET, COVER

5412954

$32.37

BOLT

7518854

$2.38

WASHER, FLAT

7556451

$4.76

IMPELLER, WATER PUMP, CAST

5632427

$48.00

SEAL

3610136

$79.98

O-RING,.864X1.00X.07 [USED W/ 5453707]

5412955

$7.14

TUBE, WATER TRANSFER [INCL. O-RINGS]

5453707

$84.98

COVER-THERMOSTAT

5632606

$44.51

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

THERMOSTAT

7052561

$44.51

COUPLER, SPLINE INT, WP BEARING

5140079

$37.99

O-RING-12.37X2.62,VITON

5417753

$1.59

BEARING-W/SHAFT,WATERPUMP OPC

3514921

$61.74

FITTING, COOLANT

----

Unavailable

SEAL-THERMOSTAT

5413948

$8.08

TUBING-NYLON 5MMX100MM BLK

8360209

$14.56

FITTING-6 MM,BRASS

7055562

$13.49
