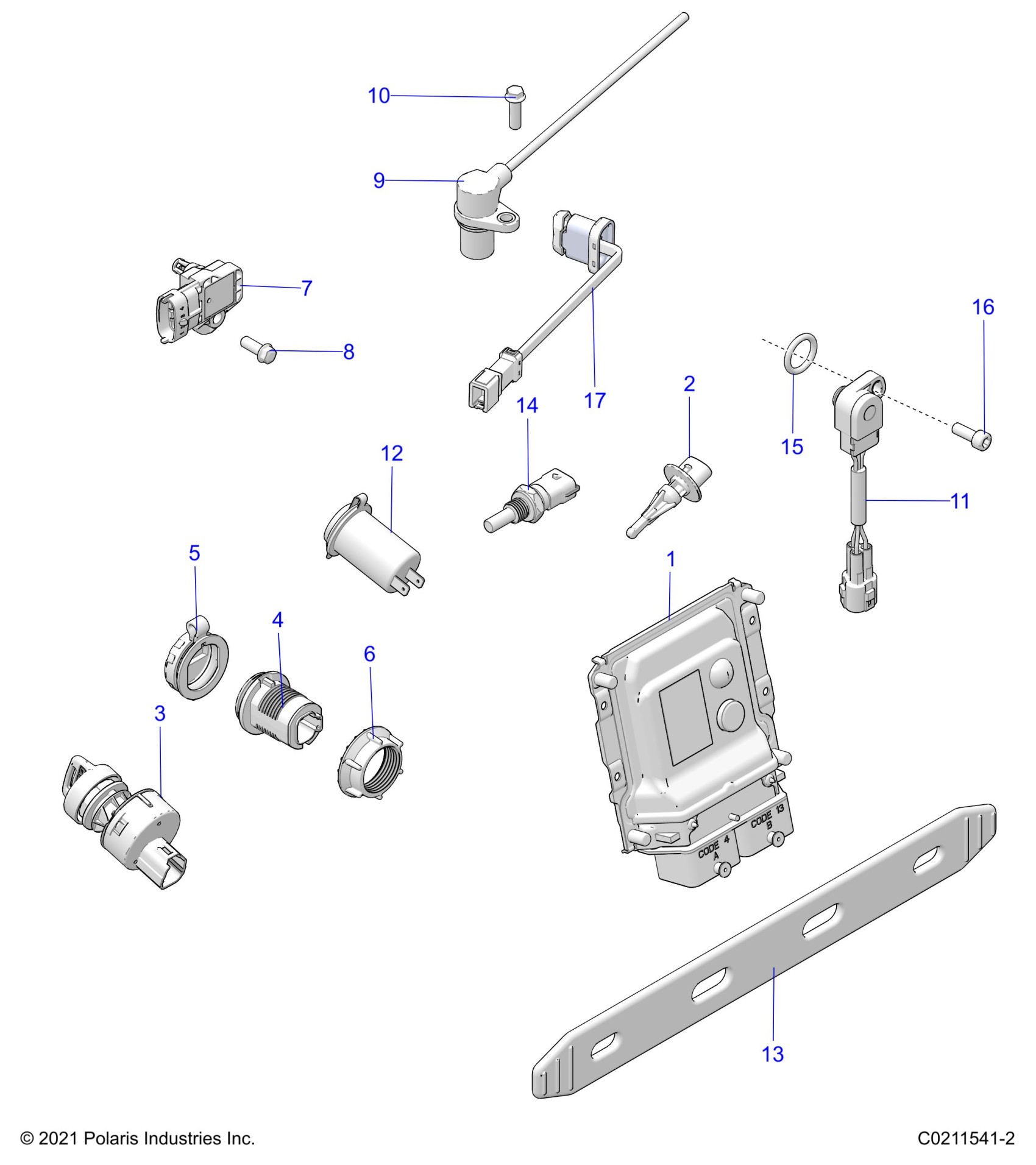

Polaris SPORTSMAN 850 48" ULTIMATE TRAIL PACKAGE (R01) - A23SXZ85A9/AG/AM ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A23SXZ85A9/AG/AM (C0211541-2) Diagram

ECU, BASE, M17

4012838

$565.24

Sensor, Air Temperature

2410687

$153.79

SWITCH-KEY,3 POS,SEALED [INCL. SWITCH, COVER, and NUT][TO 11/1/2021]

4080413

$62.21

SWITCH-KEY,3 POS,SEALED [INCL. SWITCH, COVER, and NUT][FROM 11/1/2021]

4017237

$57.76

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

KEY COVER-KEYSWITCH

5458344

$13.75

PLUG-HARNESS CHARGE PORT

2415198

$44.51

ASM-CHARGE PORT,BASE [INCL. PLUG, CAP, and NUT]

2415295

$44.51

CAP-CHARGE PORT

5417215

$12.94

NUT-CHARGE PORT

5456622

$44.51

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCR-SENSOR TMAP [USED WITH T-MAP SENSOR]

3131726

$3.17

Sensor, Crank Position

2411589

$79.37

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

SENSOR, THROTTLE POSITION

2412634

$259.03

RECEPTACLE-POD MNT,12 VOLT

4080487

$36.41

STRAP, ECU

5414193

$27.78

SENSOR-THERMISTER

4010644

$91.97

O-RING

3131729

$14.99

Screw [MAG Side]

3131010

$4.76

SWITCH-HBR,EU,ATV

4017111

$64.75
