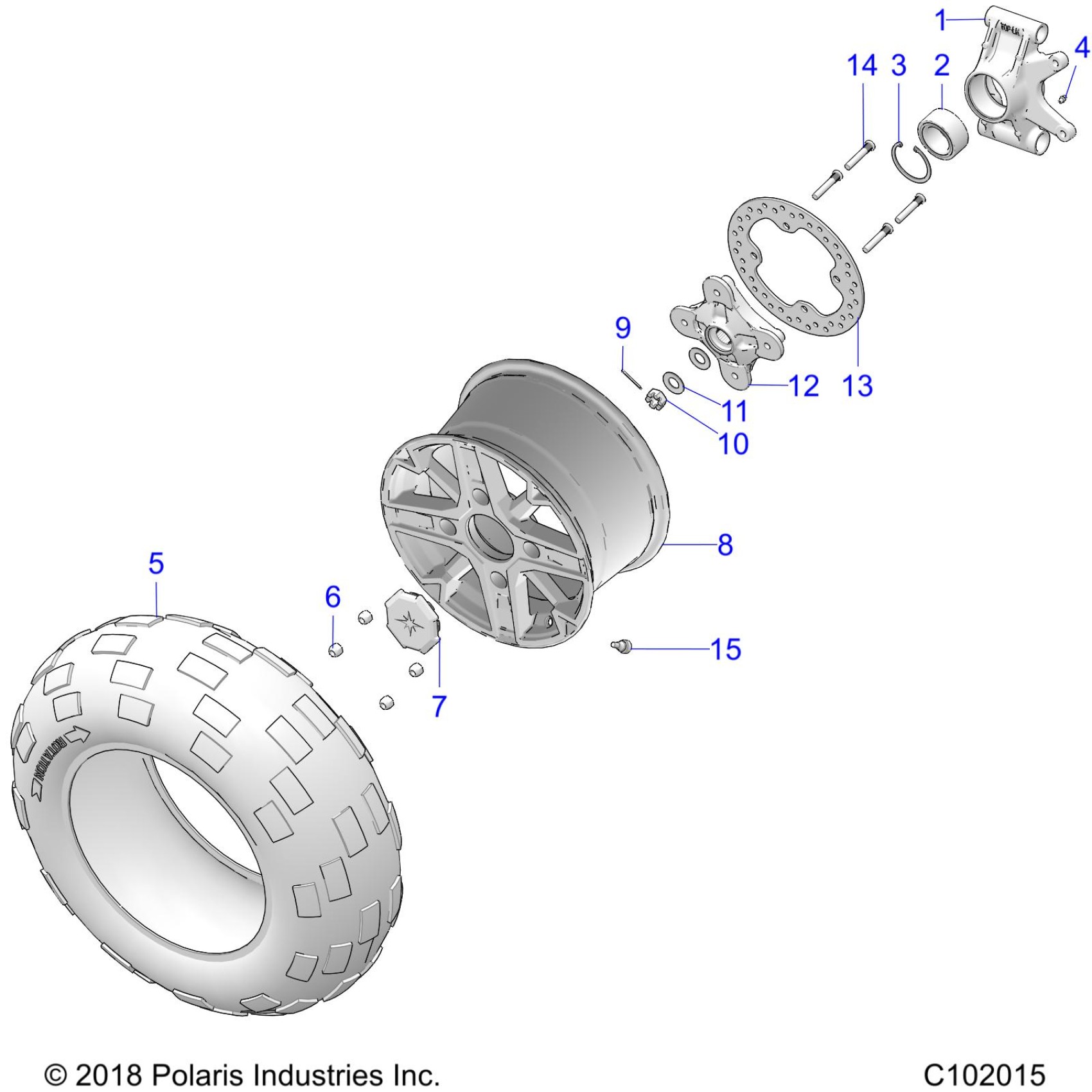

Polaris SPORTSMAN 850 48" TRAIL PACKAGE (R04) - A20SXZ85AF/AP/CAF/CAP WHEELS, REAR and HUB - A20SXZ85AF/AP/CAF/CAP (C102015) Diagram

#

Description
Price

1

CARRIER, BEARING, LH

5136689

Unavailable

1

CARRIER, BEARING, RH

5136690

Unavailable

2

BEARING, BALL, SEALED

3514699

$39.99

3

RING, RETAINING

7710440

$10.39

4

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

TIRE,27X11-R14,DURO

5417041

$135.59

6

NUT, WHEEL

7547361

$2.39

7

CAP, RIM, MATTE BLACK [TO 4/15/2024]

1521999-458

$31.99

7

CAP-RIM,MATTE BLK [FRM 4/15/2024]

1525398-458

$31.99

8

RIM-RR,CST,NO MACH,14X7.5-57.4 [INCL. 7]

1522530-458

$164.79

9

PIN, COTTER

7661404

$4.79

10

NUT, CASTLE

7547406

$4.79

11

WASHER, CONE

7555796

$7.99

12

HUB, WHEEL

5136946

$93.08

13

DISC, BRAKE

5250205

$75.99

14

STUD, WHEEL

7518671

$1.59

15

VALVE-RIM

1525017

$5.59
