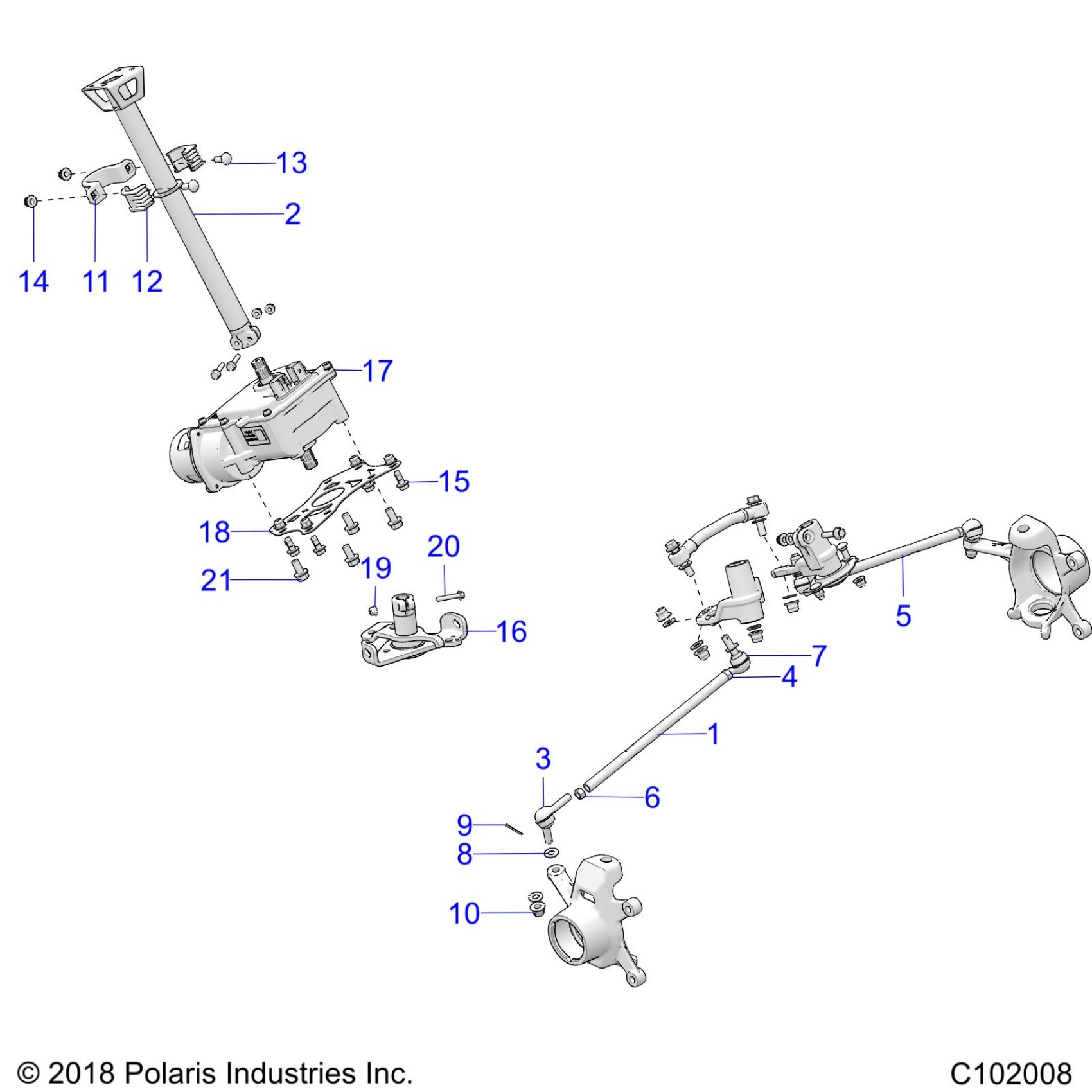

Polaris SPORTSMAN 850 48" TRAIL PACKAGE (R04) - A20SXZ85AF/AP/CAF/CAP STEERING, STEERING POST ASM. - A20SXZ85AF/AP/CAF/CAP (C102008) Diagram

#

Description
Price

1

ASM., TIE ROD [INCL. 3-7][3-7 AVAILABLE ONLY IN THIS ASSEMBLY]

1824007

$99.99

2

POST, STEERING, UPPER, BLACK

1823781-329

$111.99

3

Rod End, RH

-------

Unavailable

4

NUT, JAM, RH

-------

Unavailable

5

Tie Rod

-------

Unavailable

6

NUT, JAM, LH

-------

Unavailable

7

Rod End, LH

-------

Unavailable

8

WASHER

7556153

$1.99

9

Pin, Cotter

7661203

$1.49

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

BRKT-BUSHING STRAP

5262582

$27.99

12

BUSHING-SWAY BAR,1.25

5450101

Unavailable

13

BOLT, CARRIAGE

7518479

$3.99

14

Nut, Flange

7547317

Unavailable

15

Bolt, Flange

7518450

$1.59

16

KIT, POST, STEERING, LOWER, BOLTED [INCL. POST AND HARDWARE]

2205364

$151.99

17

ASM-POWER STEERING,GEN2,ATV

2415061

Unavailable

18

BRACKET, POWER STEERING, BLACK

5254633-329

$39.99

19

NUT-M6 FLANGE,NYLOC

7547274

$1.49

20

SCREW, FLANGE

7516827

$6.39

21

BOLT, FLANGE

7518558

$3.99
