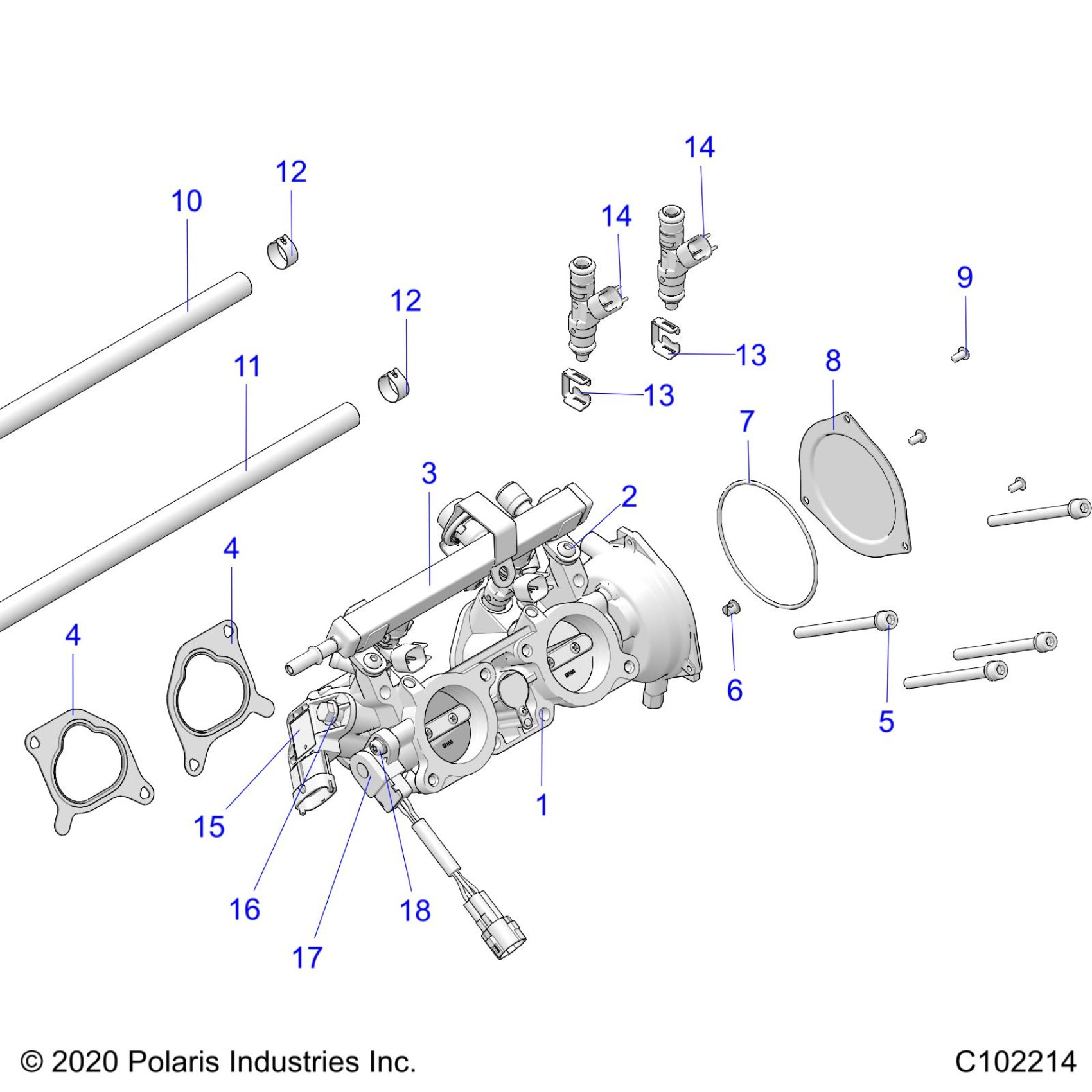

Polaris SPORTSMAN 850 48" TRAIL PACKAGE (R04) - A20SXZ85AF/AP/CAF/CAP ENGINE, THROTTLE BODY - A20SXZ85AF/AP/CAF/CAP (C102214) Diagram

#

Description
Price

1

K-THROTTLE BODY [INCL. THROTTLE BODY, 1-3,6-9,13-18]

2208004

$999.99

2

BOLT, FUEL RAIL

3131716

$4.76

3

ASM., FUEL RAIL

----

Unavailable

4

GASKET, ITB

5814296

$13.75

4

GASKET, ITB

5814296

$13.75

5

SCREW

5137620

$5.56

6

CABLE GUIDE,MIKUNI BTM36/30

3130543

$32.37

7

O-RING, THROTTLE CAM COVER

5413599

$12.13

8

COVER, THROTTLE CAM [TO 10/4/2024]

5252518

$53.32

8

COVER, THROTTLE CAM [FRM 10/4/2024]

5262110

$15.37

9

SCREW-MIKUNI C2=0408 [TO 10/4/2024]

3130592

$1.59

9

SCREW [FRM 10/4/2024]

7519292

$0.79

10

HOSE, FUEL

8450123-56

$104.99

11

HOSE, FUEL

8450123-71

$104.99

12

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

12

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

13

CLIP-INJECTOR

3131725

$12.43

13

CLIP-INJECTOR

3131725

$12.43

14

INJECTOR-180G/MIN SINGLE CONE

1203568

$99.21

14

INJECTOR-180G/MIN SINGLE CONE

1203568

$99.21

15

SENSOR-TMAP DSS3-TF

2411528

$97.13

16

SCR-SENSOR TMAP [T-MAP SCREW]

3131726

$3.17

17

SENSOR, THROTTLE POSITION

2412634

$259.03

18

Screw [MAG Side] [TPS SCREW]

3131010

$4.76
