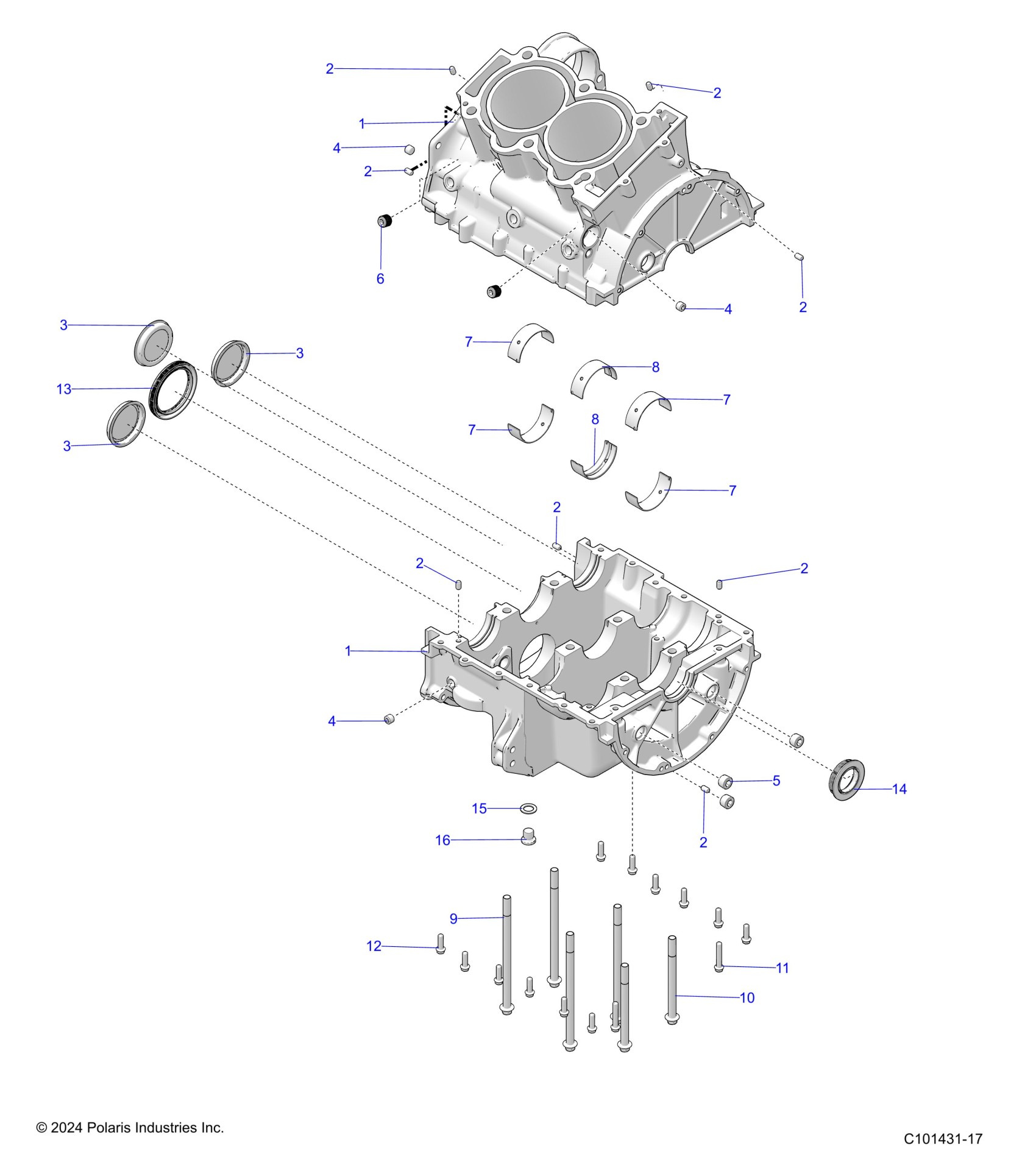

Polaris SPORTSMAN 850 48" TRAIL PACKAGE (R04) - A20SXZ85AF/AP/CAF/CAP ENGINE, CRANKCASE - A20SXZ85AF/AP/CAF/CAP (C101431-17) Diagram

#

Description
Price

1

KIT, CRANKCASE [INCL. 2,4-6, 9-12, CASES]

2204957

$1,680.79

1

KIT, CRANKCASE [INCL. 2,4-6, 9-12, CASES]

2204957

$1,680.79

2

PIN-DOWEL,M6X10

5132835

$2.39

2

PIN-DOWEL,M6X10

5132835

$2.39

2

PIN-DOWEL,M6X10

5132835

$2.39

2

PIN-DOWEL,M6X10

5132835

$2.39

2

PIN-DOWEL,M6X10

5132835

$2.39

2

PIN-DOWEL,M6X10

5132835

$2.39

2

PIN-DOWEL,M6X10

5132835

$2.39

2

PIN-DOWEL,M6X10

5132835

$2.39

3

SEAL, BALANCE SHAFT

3610144

$7.99

3

SEAL, BALANCE SHAFT

3610144

$7.99

3

SEAL, BALANCE SHAFT

3610144

$7.99

4

PLUG

7052337

$3.22

4

PLUG

7052337

$3.22

4

PLUG

7052337

$3.22

5

PLUG

7052413

$3.99

6

PLUG [TO 2/14/2024]

7518835

$5.59

6

PLUG-SH,W/O-RING,M10X1 [FRM 2/14/2024]

7520842

$7.19

7

BEARING, MAIN, UPPER, FRONT

3514534

Unavailable

7

BEARING, MAIN, UPPER, FRONT

3514534

Unavailable

7

BEARING, MAIN, UPPER, FRONT

3514534

Unavailable

7

BEARING, MAIN, UPPER, FRONT

3514534

Unavailable

8

BEARING, MAIN, UPPER, CENTER

3514535

$11.99

8

BEARING, MAIN, UPPER, CENTER

3514535

$11.99

9

SCREW

7518804

$3.19

10

SCREW

7518805

$5.59

11

SCREW

7518578

$3.99

12

SCREW

7518576

$3.19

13

SEAL, CRANKSHAFT

3610152

$39.99

14

SEAL, CRANKSHAFT

3610220

$19.99

15

WASHER-19X12X1.3,COPPER

5812232

$1.59

16

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37
