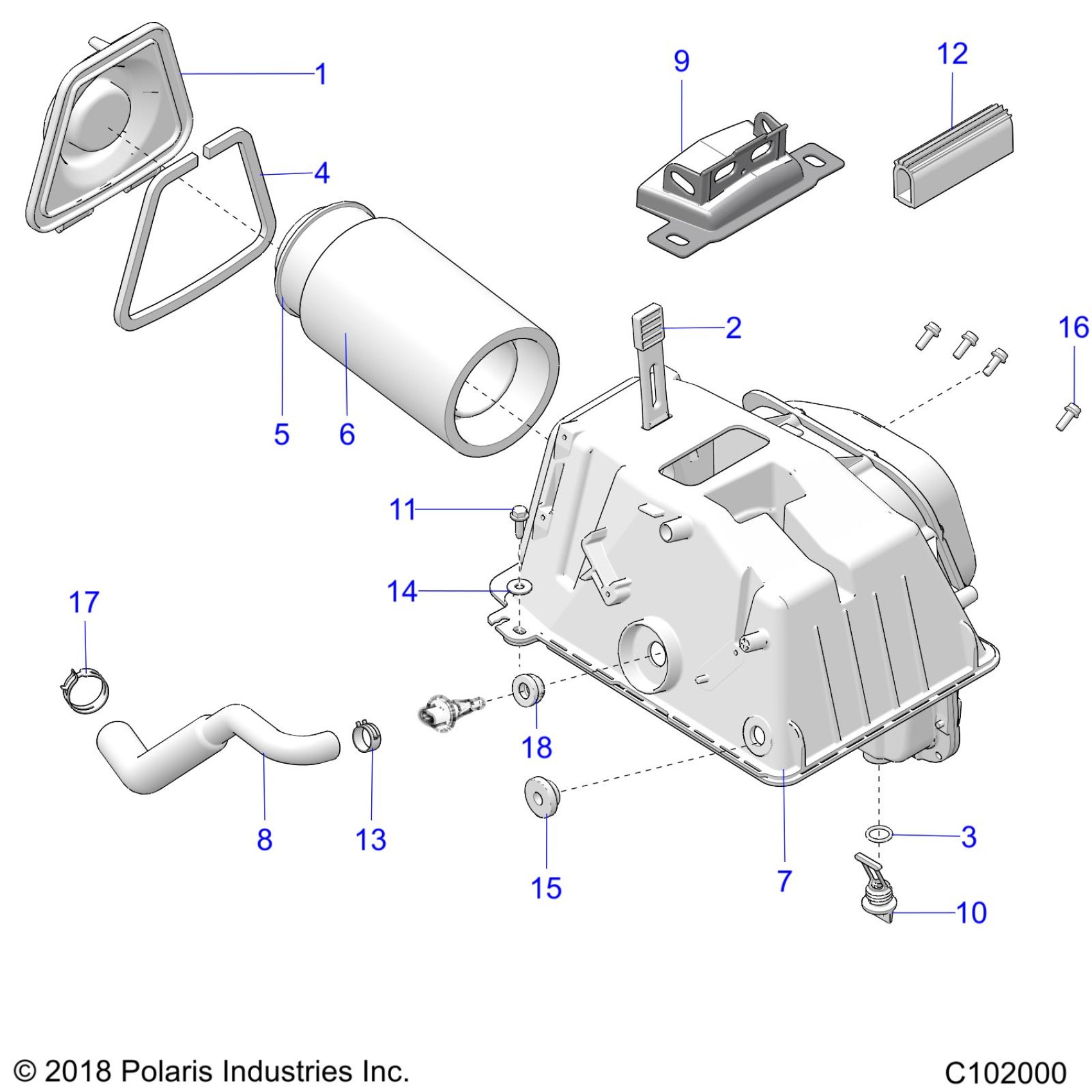

Polaris SPORTSMAN 850 48" TRAIL PACKAGE (R04) - A20SXZ85AF/AP/CAF/CAP ENGINE, AIR INTAKE - A20SXZ85AF/AP/CAF/CAP (C102000) Diagram

#

Description
Price

1

COVER, AIRBOX

5438983

$39.99

2

STRAP-AIRBOX TOP

5433150

$24.27

3

O-RING

5414246

$1.59

4

SEAL, AIRBOX COVER

5813359

$6.79

5

FILTER, AIR INTAKE

7082101

Unavailable

5

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

6

Filter, Precleaner Sleeve

5811633

$11.99

7

ASM., AIR INTAKE, BOX W/RUNNERS

1240825

$167.99

8

HOSE, BREATHER, TWIN

5414322

$39.99

9

HOOD, AIR INTAKE [TO 1/1/2020]

5414252

$39.99

9

HOOD-AIR INTAKE [FROM 1/1/2020]

5416841

$27.99

10

PLUG, AIR BOX

5451429

$14.39

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

SEAL-RUBBER 108MM

5522220-108

$6.79

13

CLAMP, HOSE

7081026

$7.99

14

Washer, Flat

7555859

$1.49

15

GROMMET, SUPPORT, TRUNK

5413423

$3.19

16

SCREW

7518803

$3.99

17

CLAMP, SPRINGBAND, BLACK

7080842

$7.19

18

Grommet, Air Temp Sensor

5436346

$4.79
