Partiron

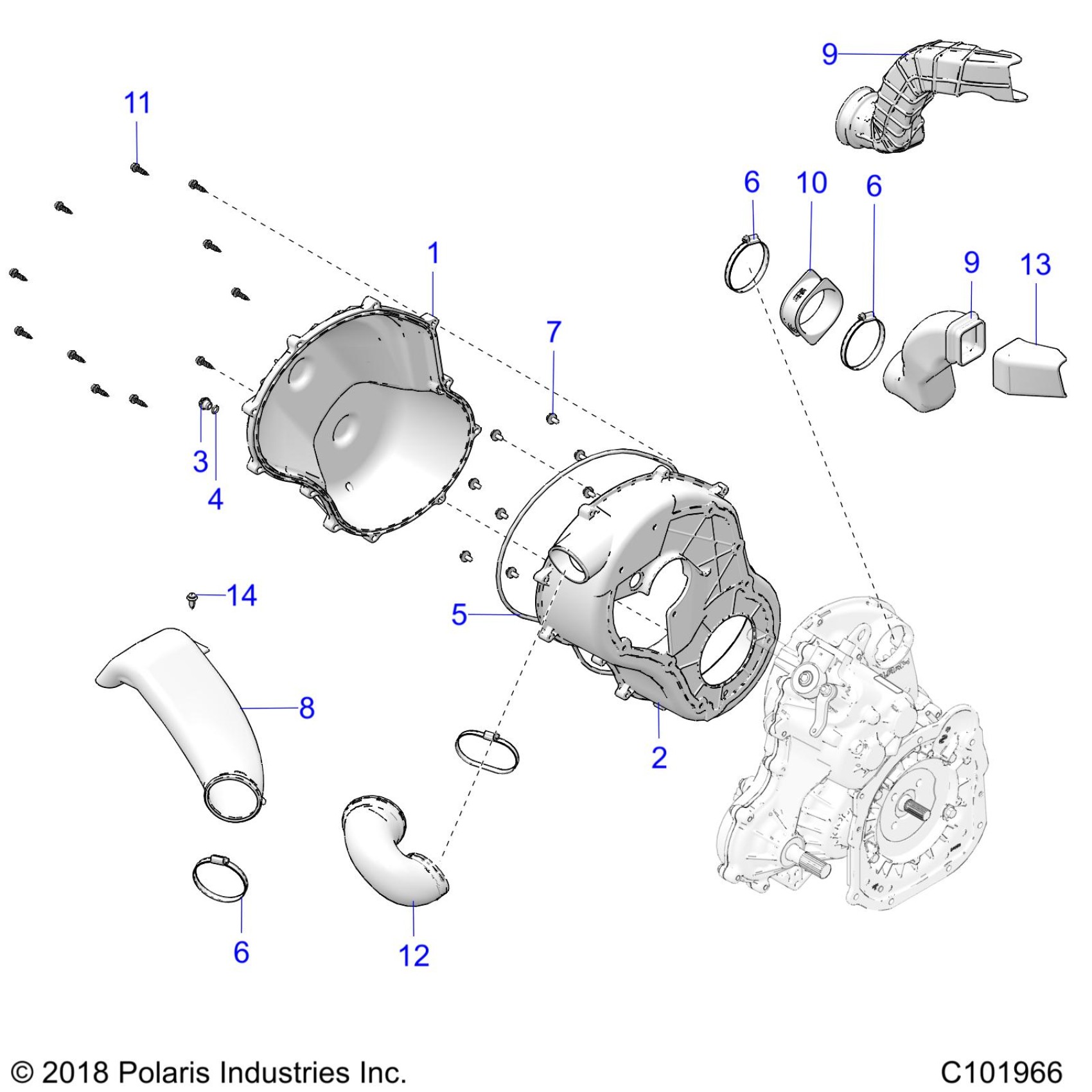

Polaris SPORTSMAN 850 48" TRAIL PACKAGE (R04) - A20SXZ85AF/AP/CAF/CAP BODY, CLUTCH COVER - A20SXZ85AF/AP/CAF/CAP (C101966) Diagram

#

Description
Price

1

ASM., COVER, OUTER [INCL. OUTER COVER,3,4]

2633919

$149.75

2

COVER, CLUTCH INNER

5438127

$178.08

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

4

O RING-.364X.504X.07

5410542

$4.84

5

SEAL, COVER, CLUTCH

5521802

$36.41

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

7

SCR-M6X1.0X14,PN/TX

7520472

$3.17

8

DUCT-OUTLET,CLUTCH

5453521

$72.60

9

DUCT-AIR INLET,CLUTCH

5436820

$48.56

9

DUCT-AIR INLET,CLUTCH

5436820

$48.56

10

Boot, Clutch, Inlet

5413177

$40.46

11

SCREW

7519849

$3.17

12

DUCT-CLUTCH,RUBBER

5416051

$44.51

13

BOOT, INLET, DUCT

5413516

$9.70

14

Rivet

7661855

$1.19
