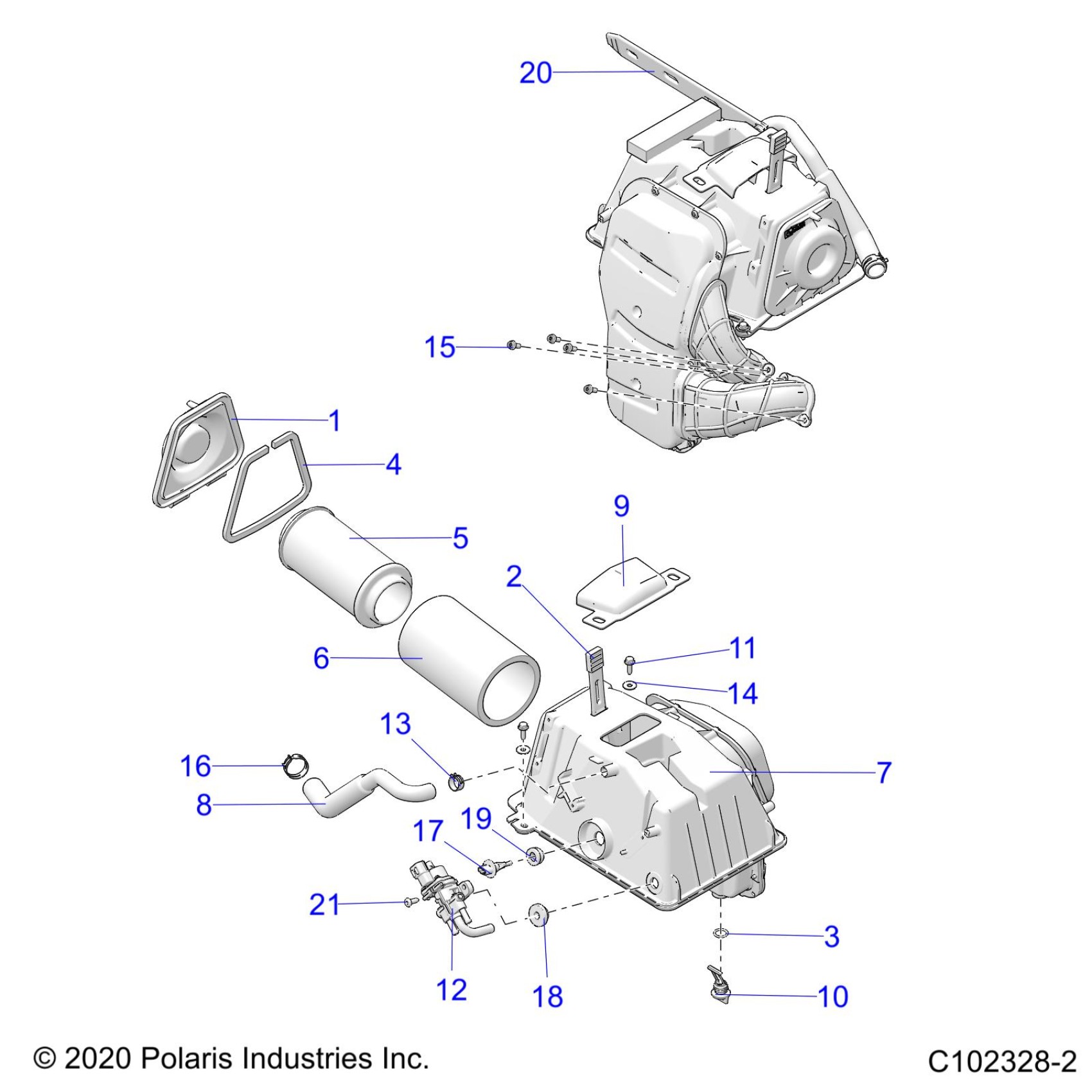

Polaris SPORTSMAN 850 48" TRAIL PACKAGE (R01) - A21SXZ85AN ENGINE, AIR INTAKE - A21SXZ85AN (C102328-2) Diagram

#

Description
Price

1

COVER, AIRBOX

5438983

$39.99

2

STRAP-AIRBOX TOP

5433150

$24.27

3

O-RING

5414246

$1.59

4

SEAL, AIRBOX COVER

5813359

$6.79

5

FILTER, AIR INTAKE

7082101

Unavailable

5

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

6

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

7

ASM., AIR INTAKE, BOX W/RUNNERS

1240825

$167.99

8

HOSE, BREATHER, TWIN

5414322

$39.99

9

HOOD, AIR INTAKE

5416841

$27.99

10

PLUG, AIR BOX

5451429

$14.39

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

VALVE, IAC

4013313

$175.99

13

CLAMP-HOSE,SPRING .81

7081026

$7.99

14

WASHER-FL .281X.750X.062-Y

7555859

$1.49

15

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

16

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

17

Sensor, Air Temperature

2410687

$143.99

18

GROMMET, SUPPORT, TRUNK

5413423

$3.19

19

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.79

20

STRAP, ECU

5414193

$27.99

21

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19
