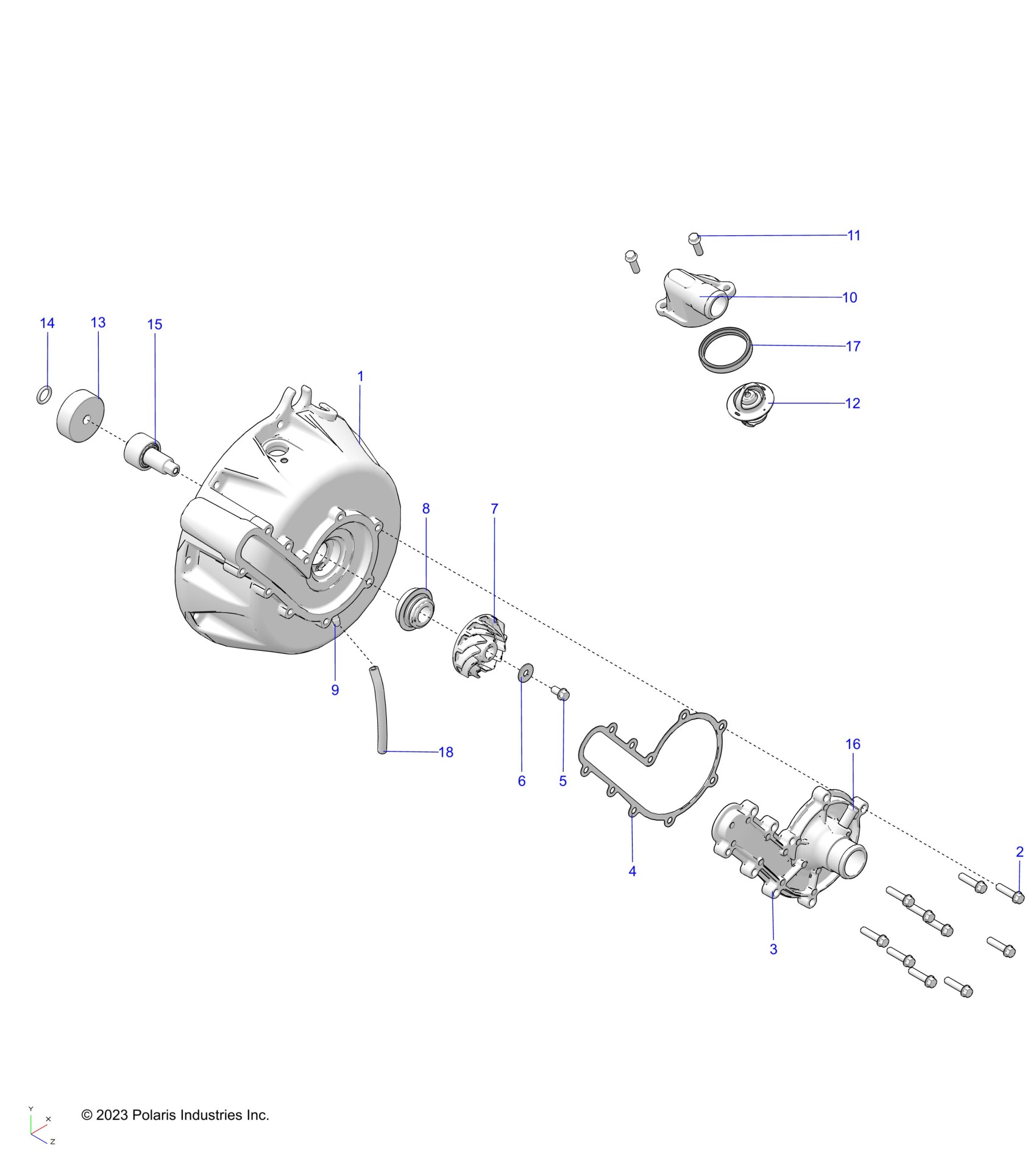

Polaris SPORTSMAN 850 48" (R03) - A24SXA85A1/A6 ENGINE, COOLING SYSTEM and WATER PUMP - A24SXA85A1/A6 (C102561) Diagram

ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19]

1209135

$359.99

COVER-STATOR W/WATERPMP [COVER ONLY]

5144073

$371.99

SCR-M6X1.0X25-HXHD CLR COAT

7527861

$2.39

COVER-WATERPMP W/BP [INCL. COVER, FITTING, GASKET]

5144074

$63.99

GASKET, COVER

5412954

$31.99

SCR-M6X1.0X12-HXHD

7527860

$2.39

WASHER-FLAT M6

7558730

$3.99

IMPELLER-WATERPMP,CAST,60MM

5639192

$43.99

SEAL

3610136

$71.99

FITTING-6 MM,BRASS

7055562

$13.59

COVER-THERMOSTAT

5632606

$39.99

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

THERMOSTAT

7052561

$39.99

COUPLER, SPLINE INT, WP BEARING

5140079

$31.99

O-RING-12.37X2.62,VITON

5417753

$1.59

BEARING-W/SHAFT,WATERPUMP OPC

3514921

$51.99

FITTING-COOLANT 3/8

7055563

$8.79

SEAL-THERMOSTAT

5413948

$7.99

TUBING-NYLON 5MMX100MM BLK

8360209

$13.59
