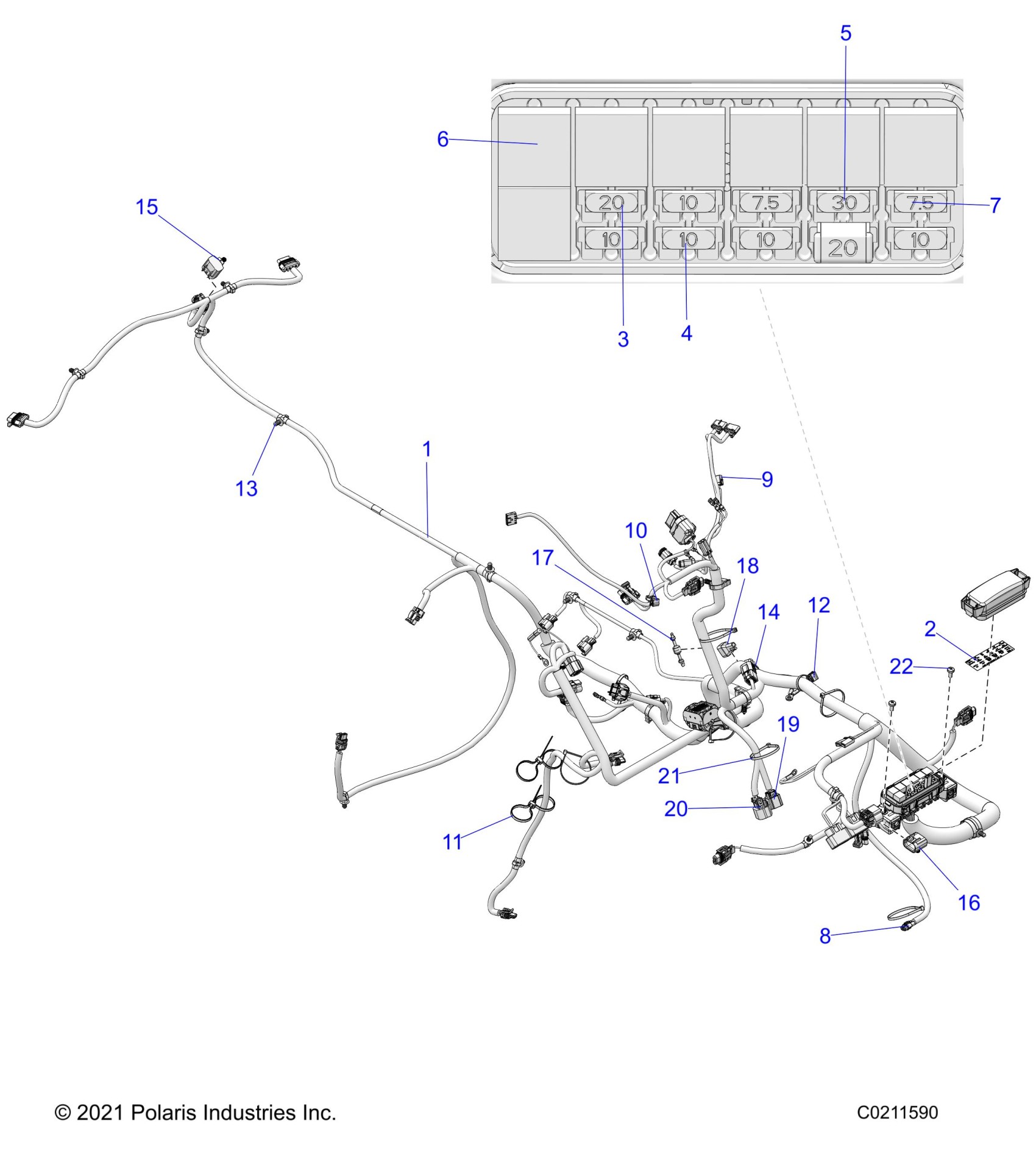

Polaris SPORTSMAN 850 48" (R03) - A22SXA85A1/A6 ELECTRICAL, HARNESS - A22SXA85A1/A6 (C0211590) Diagram

HARN-MAIN,SPXP NON-ETC [INCL. 1-18]

2416125

$1,003.19

LABEL, FUSE BOX

7300362

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-MAIN,30 AMP

2434015

$7.19

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$7.99

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

COVER, TAILLIGHT, LED W/CLIP

4016259

$6.39

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

CONNECTOR, CAP, EPS, SIGNAL

4014235

$7.99

CONNECTOR, CAP, EPS POWER

4014236

$9.59

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19
