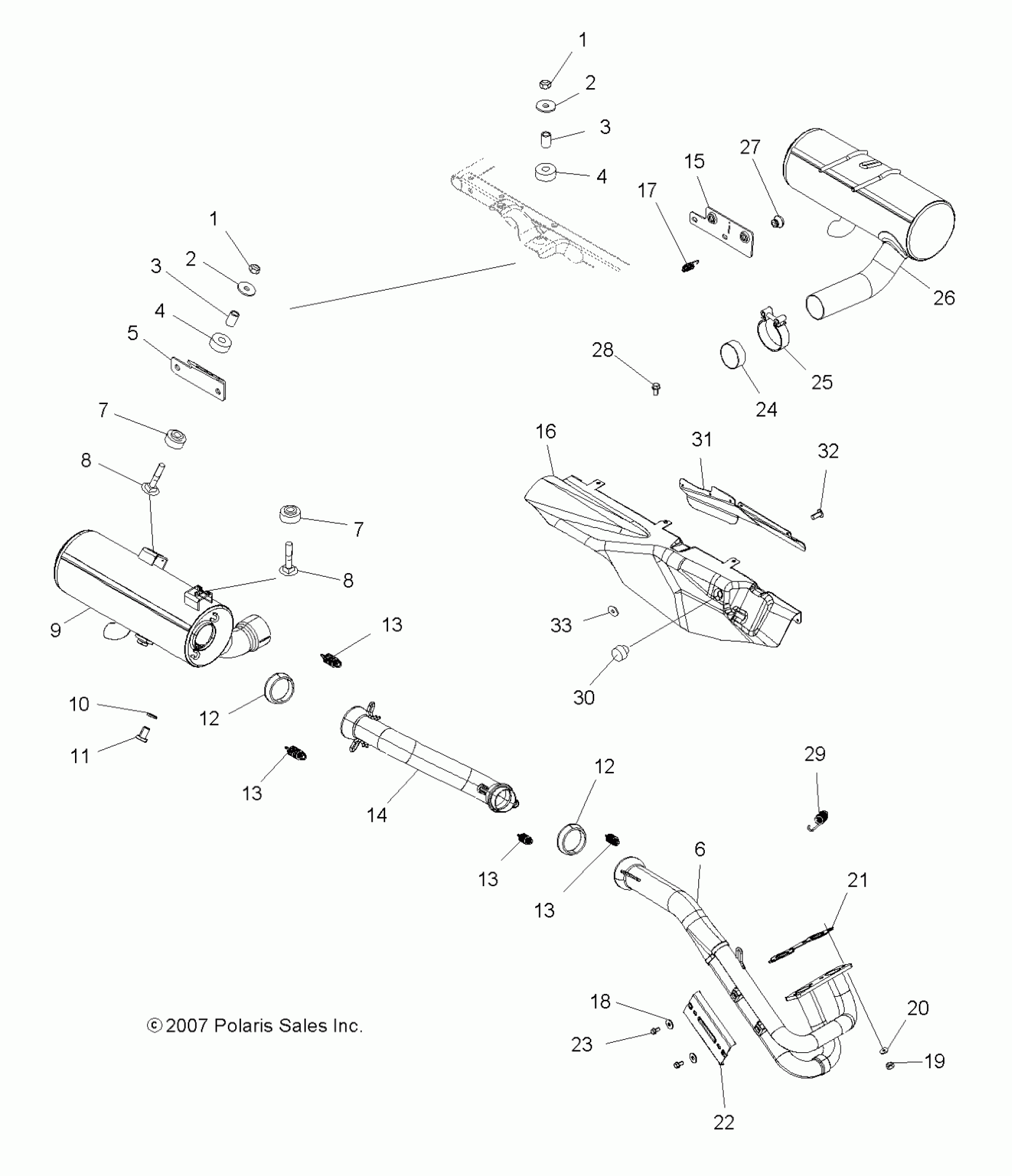

Polaris SPORTSMAN 800 HO EFI - A09MN76AX/AZ ENGINE, EXHAUST SYSTEM, DUAL - A09MN76AX/AZ (49ATVEXHAUST08SP800EFI) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

BUSHING

5010192

$6.39

3

BUSHING

5010192

$6.39

4

WASHER, RUBBER

5410436

$1.59

4

WASHER, RUBBER

5410436

$1.59

5

BRACKET, SILENCER, FRAME

5241663

$10.39

6

Exhaust, Dual, Black

1261797-489

Unavailable

7

Dampener, Vibration

5412508

$4.79

7

Dampener, Vibration

5412508

$4.79

8

BOLT

7515316

$2.39

8

BOLT

7515316

$2.39

9

Exhaust, Silencer, RH, Black

1261799-489

$464.99

10

WASHER, CLEAN OUT

7556230

$1.49

11

BOLT

7512666

$2.39

12

SEAL, EXHAUST

3610114

$28.32

12

SEAL, EXHAUST

3610114

$28.32

13

SPRING

7041804

$7.99

13

SPRING

7041804

$7.99

13

SPRING

7041804

$7.99

13

SPRING

7041804

$7.99

14

Exhaust, Secondary, Black

1261798-489

Unavailable

15

Bracket, Silencer, Mount

5248723

Unavailable

16

Shield, Exhaust, Outer

5251237

$111.33

17

Spring

7042266

$6.99

18

Washer

7555935

$2.39

19

NUT

7547076

$2.60

20

Washer, Lock

7556111

$1.59

21

GASKET

5811511

$48.56

22

Shield, Heat

5248702

Unavailable

23

SCREW

7518490

$1.49

24

Seal, Exhaust

5246375

$40.46

25

Clamp, Exhaust

7081284

Unavailable

26

Exhaust, Silencer, LH, Black

1261735-489

Unavailable

27

Grommet, Silencer, Mount

5412727

Unavailable

28

SCREW

7517386

$1.49

29

Spring, Exhaust

7043307

Unavailable

30

BUMPER-RUBBER

5412067

$3.99

31

Shield, Exhaust, Inner

5251532

$54.99

32

RIVET

7621330

$1.49

33

WASHER

7555727

$1.49
