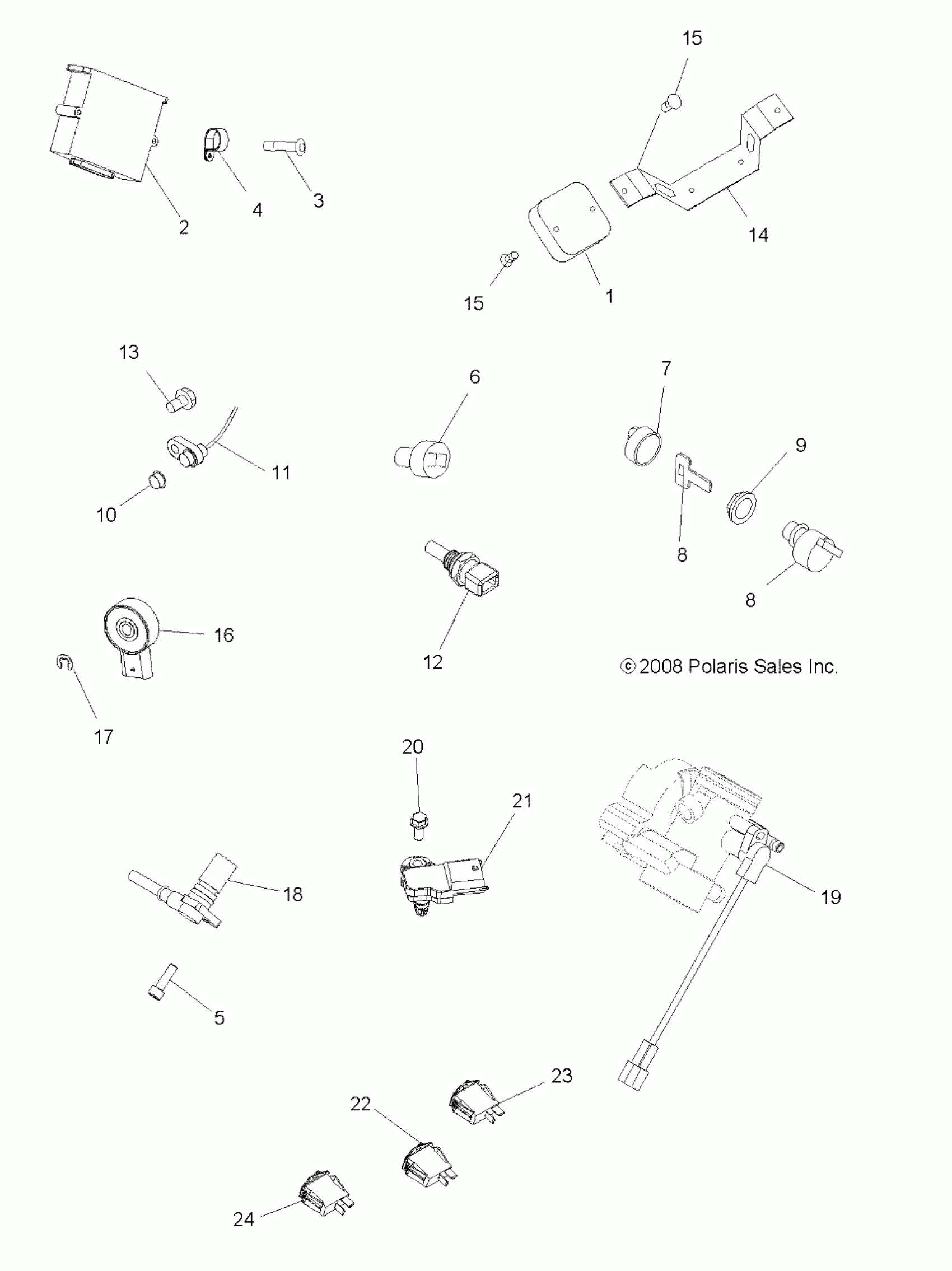

Polaris SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX ELECTRICAL, SWITCHES and SENSORS and ECM - A08MN76AF/AL/AQ/AR/AS/AT/AX (49ATVELECT08SP800) Diagram

Regulator

4012384

$337.24

ECU

4011599

$612.74

SCR-TXPH-10-24X2 CHS ZY3

7518486

$3.17

CLAMP

7080585

$3.97

Screw

7517384

$8.73

SWITCH [BRAKE LIGHTS]

4110164

$204.24

KEY SWITCH KEY COVER

5433534

$13.75

Switch, Key, 3 Position [Incl. Key]

4012165

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

Switch, Key, 3 Position [Incl. Key]

4012165

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

CAP

5132382

$24.27

Sensor, Hall Effect

4011640

$117.37

SENSOR-THERMISTER

4010644

$91.97

Screw

7517658

$5.56

Bracket, Voltage Regulator

5248725

Unavailable

SCREW

7512024

$4.76

SCREW

7512024

$4.76

SWITCH, ROTARY

3233835

$142.49

RING, RETAINING

3233834

$10.32

SENSOR, CRANK POSITION

2410720

$117.37

Sensor, Throttle Position [Must also order O-Ring]

2410342

$105.22

O-Ring, TPS [Used w/2410342]

5413812

$2.02

Screw

7517658

$5.56

Sensor, T-Map

2410422

$97.13

Switch, Worklight, On/Off [AT]

4011074

$49.99

Switch, Hand Warmer, Hi/Lo [AT]

4010963

Unavailable

Switch, Thumb Warmer, Hi/Lo [AT]

4010964

$64.75
