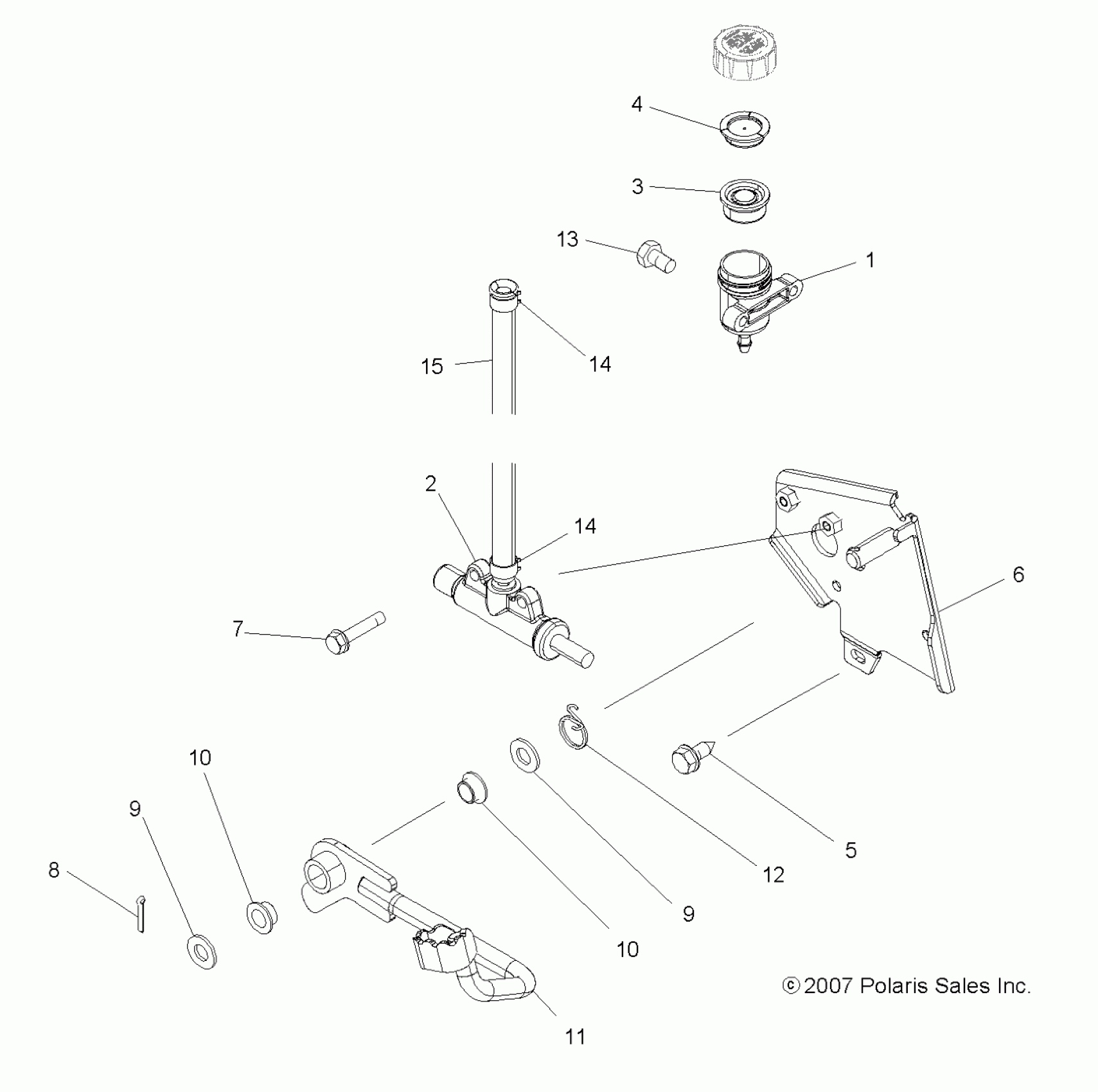

Polaris SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX BRAKES, BRAKE PEDAL and MASTER CYLINDER - A08MN76AF/AL/AQ/AR/AS/AT/AX (49ATVBRAKEFOOT08SP800EFI) Diagram

#

Description
Price

1

ASM., RESERVOIR, BRAKE, REAR [INCL. CAP, 3,4]

1911224

$35.99

2

Asm., Master Cylinder, Brake, Foot [Incl. Hose, Clamps]

1911274

Unavailable

3

DIAPHRAGM, RESERVOIR, BRAKE

5413262

$4.79

4

ing, Reservoir, brake

5437041

$5.59

5

SCREW

7512232

$1.49

6

Mount, Brake, Black

1015617-067

$35.51

7

Screw

7515158

$4.79

8

PIN, COTTER

7661401

$1.49

9

WASHER

7555919

$4.99

9

WASHER

7555919

$4.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

11

Pedal, Brake, Black

1911076-067

$53.17

12

SPRING-TORSION,BRAKE

7041750

$8.79

13

SCREW

7517386

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

HOSE, RESERVOIR

1911267-660

Unavailable
