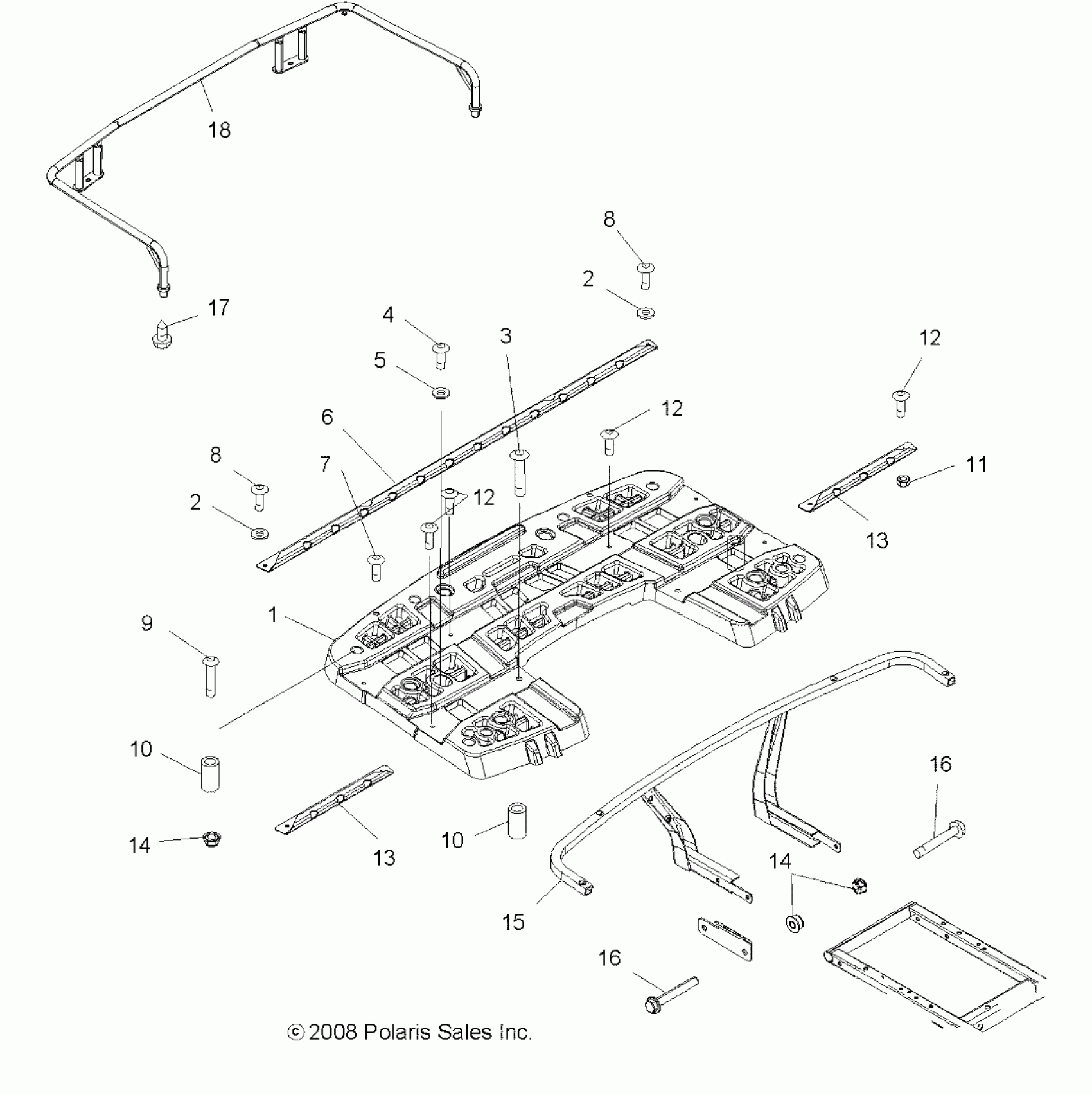

Polaris SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX BODY, REAR RACK ASM. - A08MN76AF/AL/AQ/AR/AS/AT/AX (49ATVRACKMTG08SP800EFI) Diagram

#

Description
Price

1

Asm., Rack, Rear, Black [Incl. Warning Decal and Reflectors]

2633207-070

$354.99

2

Washer

7555935

$2.39

2

Washer

7555935

$2.39

3

SCREW

7518215

$4.79

4

Screw

7512095

$4.79

5

Washer

7555798

$1.49

6

Channel, Rear Rack, Flat Black Wrinkle

5248469-418

$99.99

7

SCREW

7518504

$1.59

8

SCREW

7517686

$1.59

8

SCREW

7517686

$1.59

9

SCREW

7518462

$2.39

10

SPACER

5521747

$3.99

10

SPACER

5521747

$3.99

11

Nut, Nylok, Flange

7542153

$1.59

12

SCREW

7517230

$1.49

12

SCREW

7517230

$1.49

12

SCREW

7517230

$1.49

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.99

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.99

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

15

SUPPORT, REAR RACK, BLACK

1014668-067

$255.19

16

BOLT, FLANGE

7518341

$4.79

16

BOLT, FLANGE

7518341

$4.79

17

Screw [AT]

7517208

$1.99

18

Extender, Rack, Reat [AT]

1014768-418

$259.99
