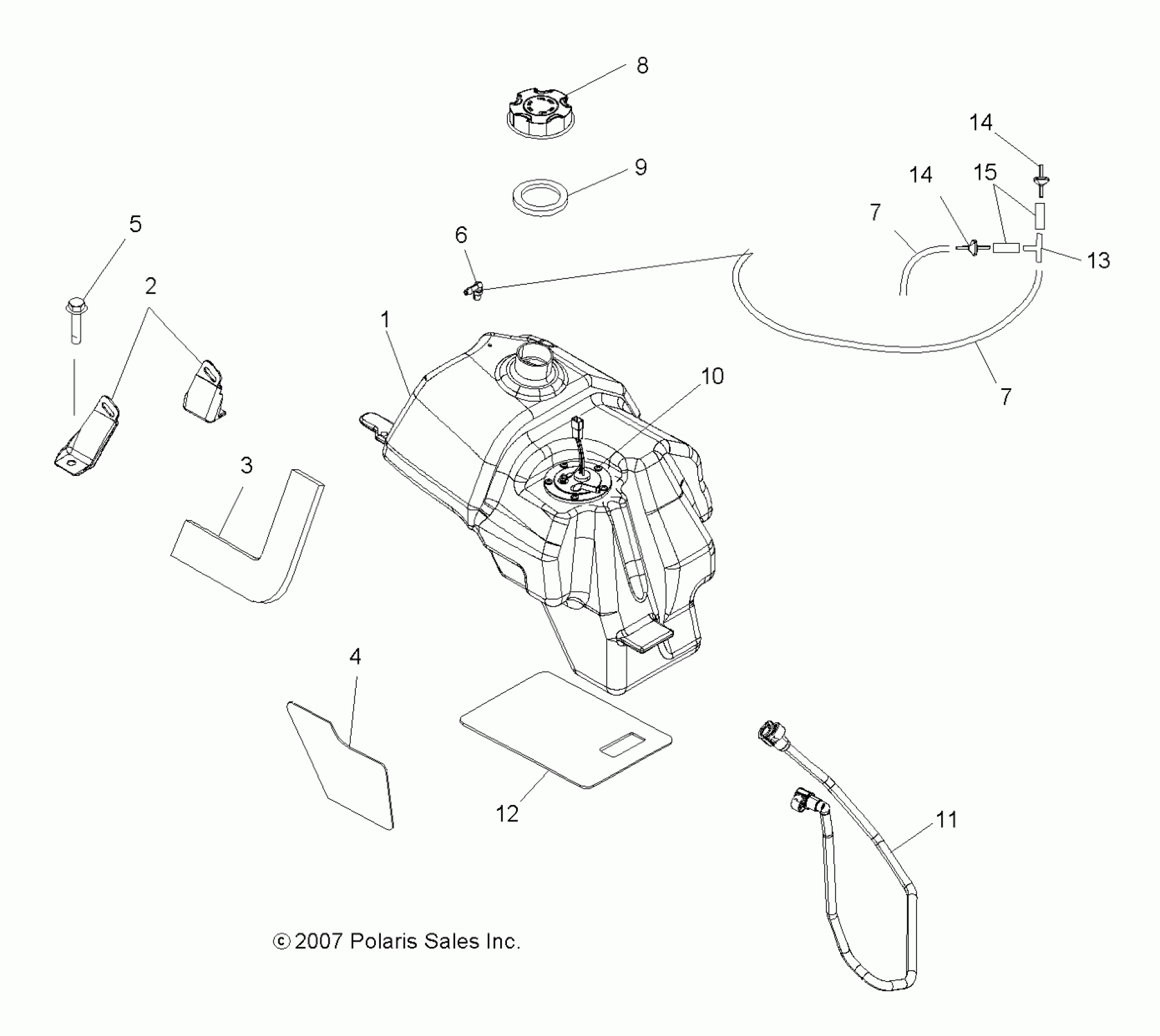

Polaris SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX BODY, FUEL TANK ASM. (Built 8/20/07 and Before) - A08MN76AF/AL/AQ/AS/AX (49ATVFUEL08SP800EFI) Diagram

#

Description
Price

1

Asm., Tank, Fuel [Incl. Pump, 4,6,10,16]

2520502

Unavailable

2

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

2

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

3

SEAL, FOAM

5812265

$27.99

4

Foil

5813044

$20.22

5

Screw

7515179

$2.39

6

Vent, Tank

5431053

$19.99

7

LINE, FUEL

8360009-600

Unavailable

7

LINE, FUEL

8360009-600

Unavailable

8

Cap, Gas Tank

5433687

$20.22

9

GASKET

5812123

$5.65

10

Screw

7518669

Unavailable

11

Fuel Line, Twin

2520859

Unavailable

12

Foil

5813045

$19.99

13

FITTING, T

7052048

$3.99

14

VALVE, CHECK, VENT

7051011

Unavailable

14

VALVE, CHECK, VENT

7051011

Unavailable

15

Line

8450061-600

Unavailable
