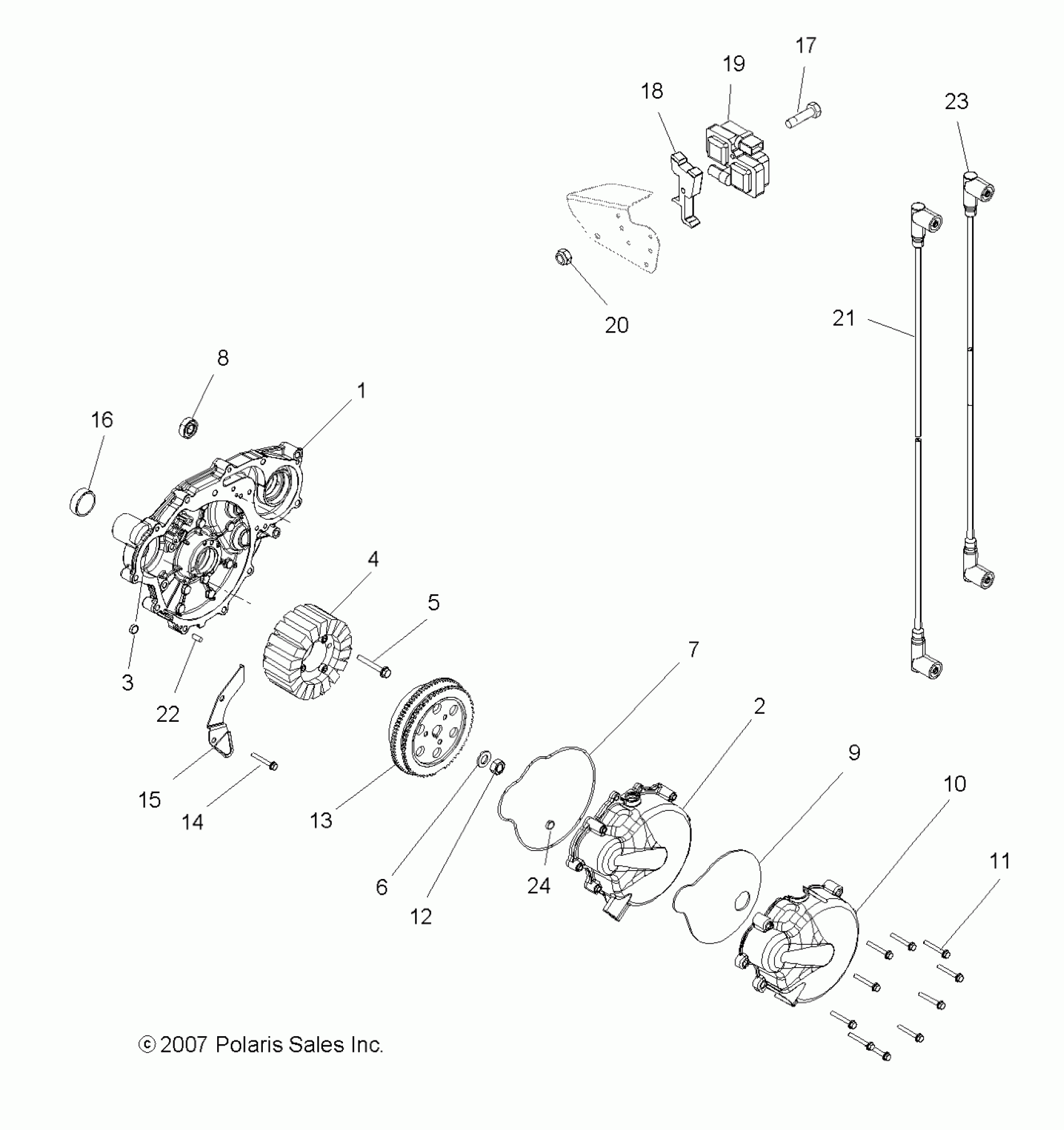

Polaris SPORTSMAN 800 EFI SCANDINAVIAN - A08MH76SS/SF ELECTRICAL, IGNITION SYSTEM - A08MH76SS/SF (49ATVMAGNETO08SP800EFI) Diagram

#

Description
Price

1

Asm., Engine Cover, Magneto [Incl. 3,22]

1203626

$246.89

2

Asm., Cover, Stator [Incl. Bushing]

1203334

Unavailable

3

Bushing

3514378

$12.39

4

Stator

4011982

Unavailable

5

SCREW

7517848

$5.59

6

WASHER

7555907

$5.59

7

O-Ring

5412458

$39.99

8

SEAL, OIL

5412455

$24.27

9

COVER, SOUND DAMPENING

5813050

$31.99

10

COVER, STATOR, OUTER

5436652

Unavailable

11

Screw

7517950

$5.59

12

NUT

7547213

$4.79

13

Flywheel

4011981

Unavailable

14

Screw

7517950

$5.59

15

Bracket, Stator, Wire Holddown

5245364

$49.99

16

SEAL, FLANGED

5412881

$31.99

17

SCREW

7515156

$3.99

18

SPACER-COIL MOUNT

5436577

$3.99

19

KIT, IGNITION COIL [INCL. 17-20]

2876049

$227.99

20

Nut, Nylok

7542122

$1.49

21

Wire, Spark Plug

4011365

$59.99

22

Pin, Dowel

7663002

$4.79

23

Wire, Spark Plug

4011364

$55.99

24

BUSHING

3514553

Unavailable
