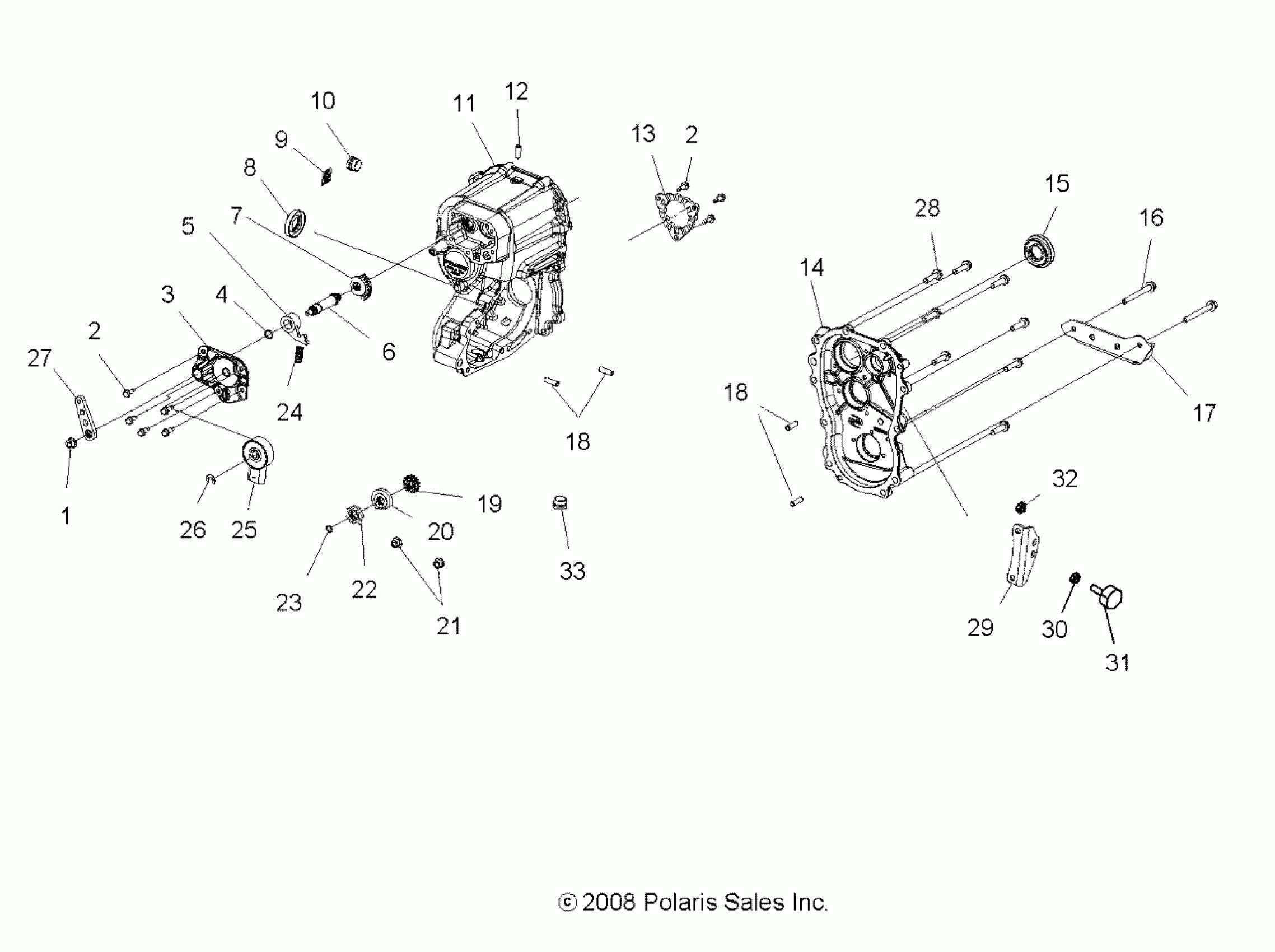

Polaris SPORTSMAN 800 EFI SCANDINAVIAN - A08MH76SS/SF DRIVE TRAIN, MAIN GEARCASE - A08MH76SS/SF (49ATVGEARCASE08SP800EFI) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1332607

Unavailable

1

NUT, LOCK

3233961

$2.79

2

SCREW

3233826

$9.59

2

SCREW

3233826

$9.59

3

COVER

3234188

$107.99

4

O-RING

3233869

$5.59

5

Pawl, Detent

3233829

$31.99

6

SHAFT, SHIFT

3233831

$59.99

7

GEAR-SECTOR,31T

3233832

$31.99

8

Seal, Triple Lip

3233788

$31.99

9

LABEL, OIL FILL/LEVEL CHECK

3234143

Unavailable

10

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.19

11

GEARCASE, MAIN

3234358

Unavailable

12

TUBE, VENT

3233524

$7.19

13

PLATE, PARK

3233915

$39.99

14

COVER, MAIN, LH

3234221

$339.99

15

Seal, Dual Lip

3233874

$31.99

16

SCREW

3234042

$7.19

17

BRACKET, TRANSMISSION MOUNT

3234142

$27.99

18

PIN, DOWEL

3233247

$7.19

18

PIN, DOWEL

3233247

$7.19

19

GEAR, 16T

3233839

$31.99

20

DISC, LOCKOUT

3233838

$26.39

21

NUT

3234043

$5.59

22

Star, Detent

3233909

$23.99

23

O-RING

3233076

$6.39

24

SPRING, COMPRESSION, DETENT

3234578

$12.79

25

SWITCH

3233835

Unavailable

26

RING, RETAINING

3233834

$10.39

27

BELLCRANK

3234584

$23.99

28

SCREW

3234114

$7.19

29

STOP, TORQUE

1016346

Unavailable

30

Nut

7542440

Unavailable

31

STOP, TORQUE

3021354

$24.27

32

Nut

7542414

$4.79

33

PLUG, MAGNETIC

3234529

Unavailable
