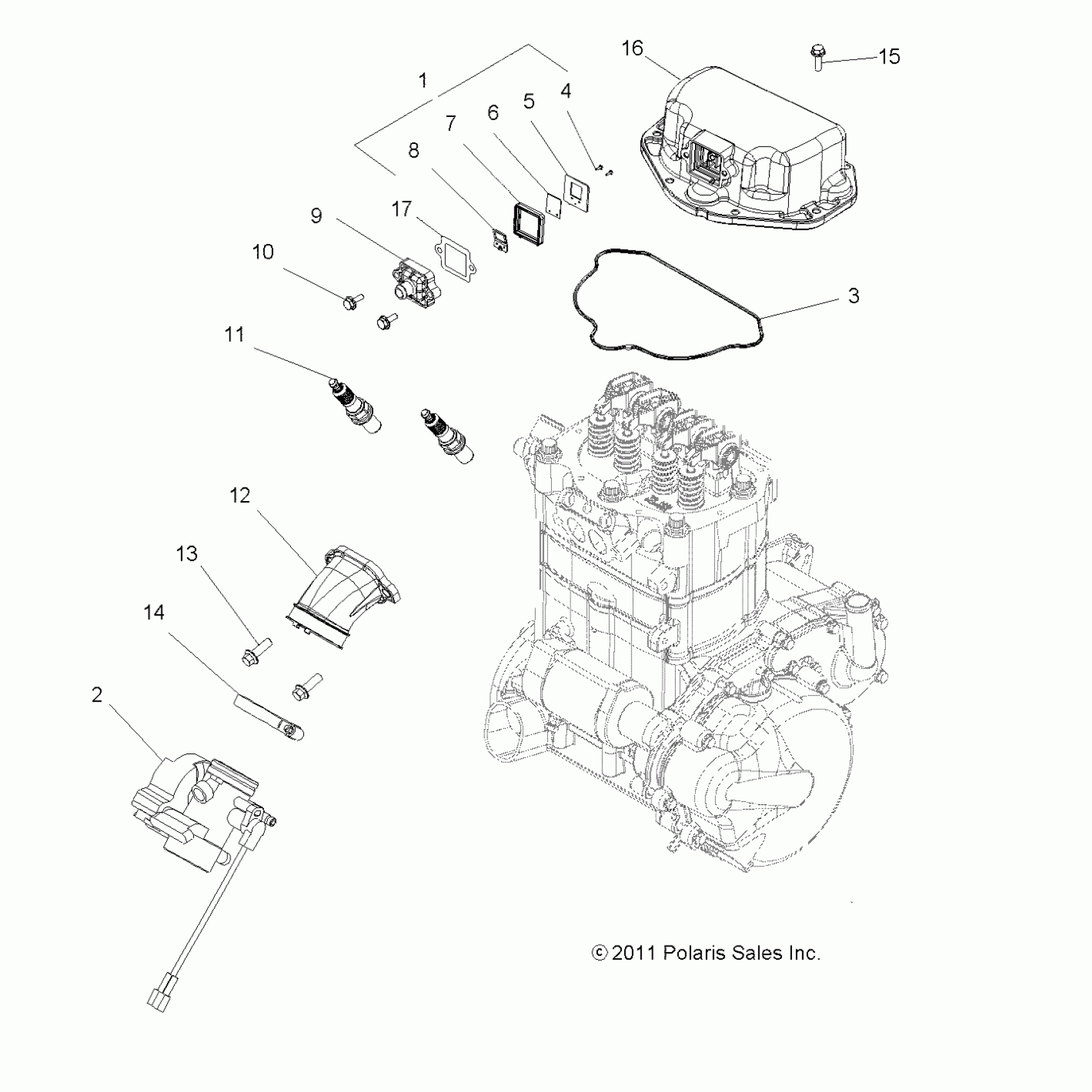

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ENGINE, THROTTLE BODY MOUNTING - A13MH76AD/AX/AZ (49ATVTHROTTLEBODY12SP800) Diagram

ASM-REED W/GASKET [INCL. 4-8]

3021352

$28.32

ASM., THROTTLE BODY [INCL. THROTTLE POSITION SENSOR]

1202836

Unavailable

Seal, Valve Cover

5412836

$7.19

RIVET

-------

Unavailable

PLATE, REED, BREATHER

-------

Unavailable

REED, CASE BREATHER

-------

Unavailable

GASKET, BREATHER

-------

Unavailable

BRACKET, REED SUPPORT

-------

Unavailable

COVER, CASE, BREATHER

5438320

$7.99

SCREW [BUILT 3/22/13 AND AFTER]

7516822

$2.39

SCREW [BUILT 3/21/13 AND BEFORE]

7516607

$10.39

PLUG, SPARK, CHAMPION RC7YC3

3021671

$3.99

ADAPTER, THROTTLE BODY

1240494

$69.99

SCREW

7516734

$3.19

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

SCREW

7516822

$2.39

COVER, VALVE [BUILT 3/22/13 AND AFTER]

5138505

$67.99

COVER, VALVE [BUILT 3/21/13 AND BEFORE]

5137143

Unavailable

GASKET-BREATHER,COVER

5813659

$1.99
