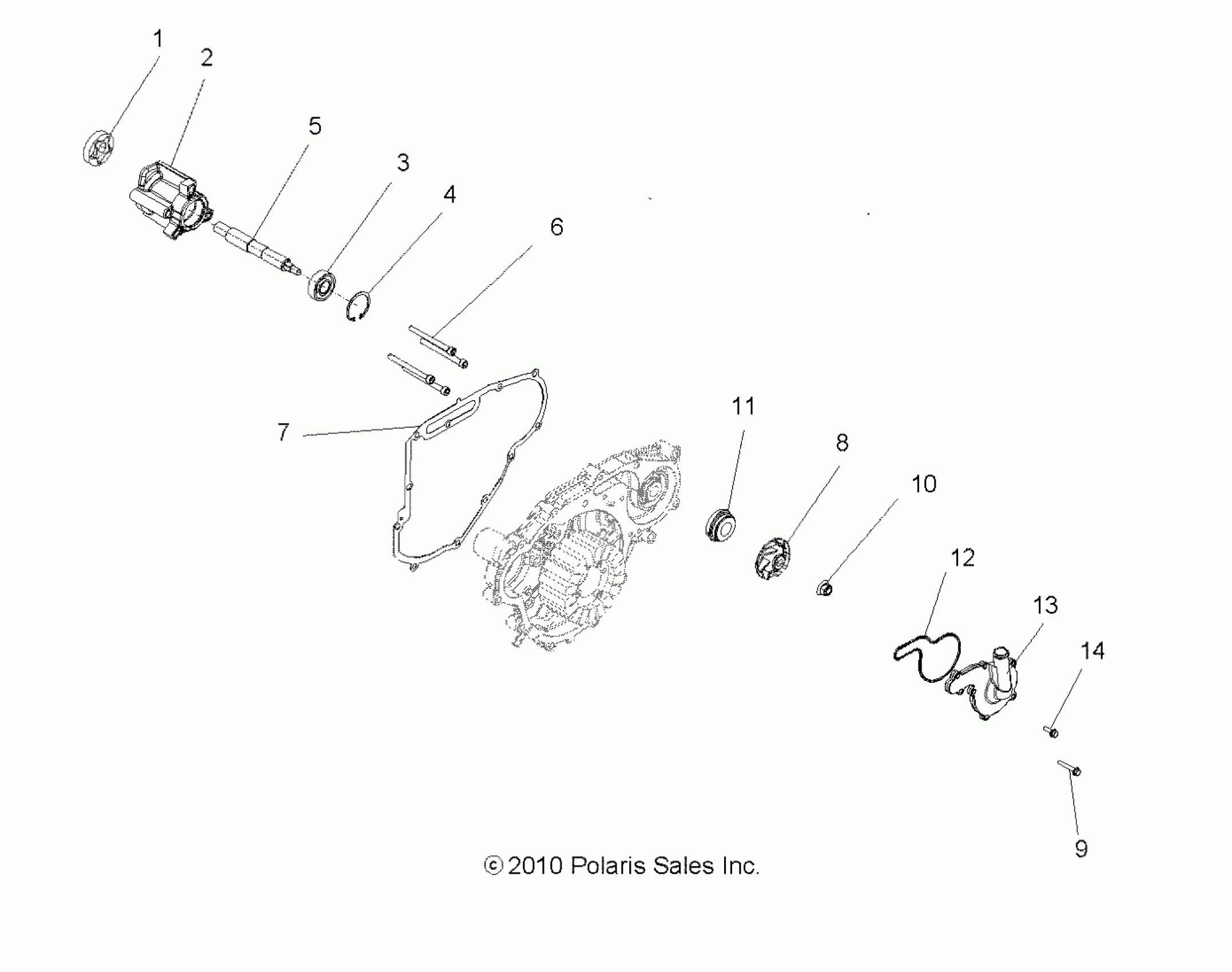

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ENGINE, OIL PUMP and WATER PUMP - A13MH76AD/AX/AZ (49ATVOILPUMP116X6) Diagram

Description

Price

Kit, Oil Pump [Incl. 1-5]

2203012

$215.59

ASM., GEROTOR [BUILT 5/07/13 AND AFTER]

1204577

$59.99

ASM., GEROTOR [BUILT 5/06/13 AND BEFORE]

1202588

Unavailable

HOUSING, OIL PUMP

5135094

Unavailable

BEARING, BALL

3514561

$9.59

RING, RETAINING

7710531

$4.79

SHAFT, OIL/WATER PUMP

5135650

$75.99

SCREW

7517807

$4.79

GASKET, COVER, MAGNETO

5812936

$35.99

IMPELLER, WATER PUMP

5433684

$31.99

SCR-HXFL-M8X1.25X45 10.9ACU

7519209

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SEAL, WATER PUMP

3610075

$72.84

SEAL, WATER PUMP

5812571

$7.99

COVER, WATER PUMP

5632604

$51.99

SCREW

7519224

$4.39
