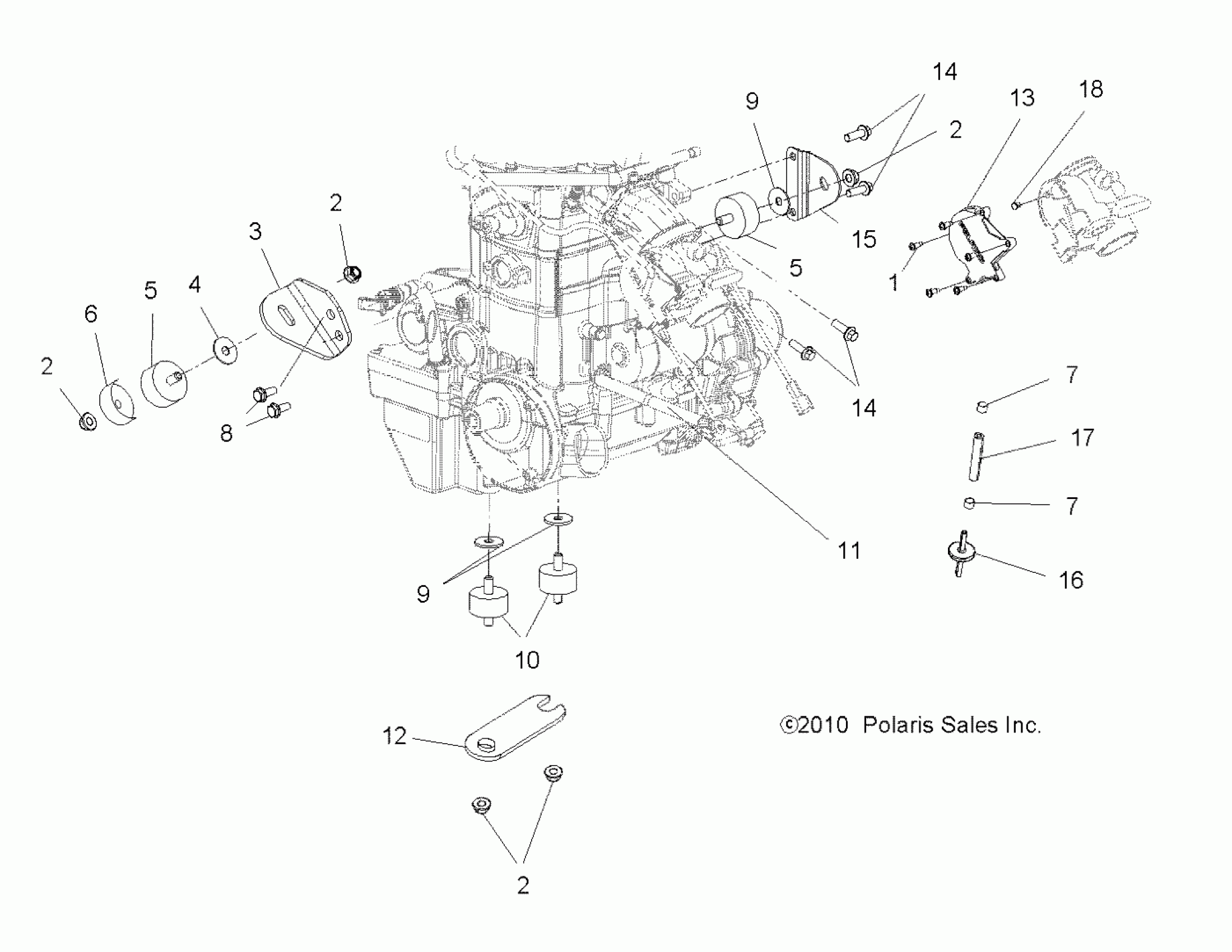

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ENGINE, MOUNTING - A13MH76AD/AX/AZ (49ATVENGINEMTG11SP800) Diagram

#

Description
Price

1

SCREW

3131515

$10.39

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

3

MOUNT, ENGINE, FRONT

5254432

$10.39

4

WASHER

7555823

Unavailable

5

ISOLATOR

3022071

$38.60

5

ISOLATOR

3022071

$38.60

6

BRACKET, TORQUE STOP

5245043

$15.83

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

8

Bolt

7518364

$1.59

9

WASHER, FLAT

7556468

$3.99

9

WASHER, FLAT

7556468

$3.99

10

ISOLATOR

3022076

Unavailable

11

CABLE, BATTERY/FRAME, BLACK

4011139

$43.99

12

STRAP, FRAME SUPPORT, BLACK

5224658-067

Unavailable

13

ASM., COVER AND O-RING

1202578

Unavailable

14

SCREW

7516734

$3.19

14

SCREW

7516734

$3.19

15

BRACKET, MOUNT, ENGINE, TOP

5250318

Unavailable

16

VALVE, CHECK

7052038

$10.51

17

HOSE

8450113-04

Unavailable

18

Guide, Throttle Cable

3131514

Unavailable
