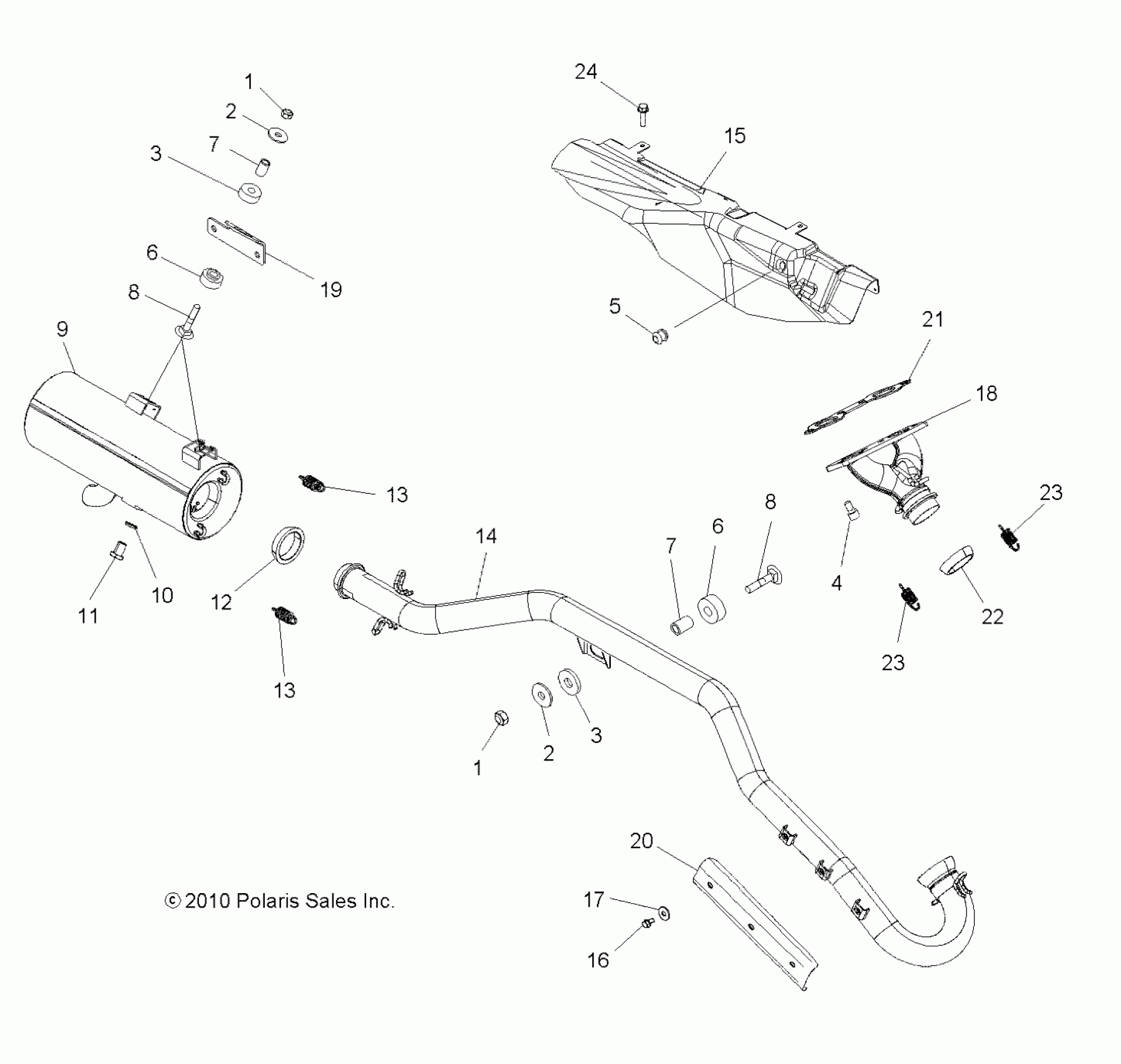

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ENGINE, EXHAUST - A13MH76AD/AX/AZ (49ATVEXHAUST11SP800) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

SCREW

7518984

$7.94

5

GROMMET

5414139

$3.17

6

DAMPENER, VIBRATION

5412659

$3.97

6

DAMPENER, VIBRATION

5412659

$3.97

7

BUSHING

5010192

$6.35

7

BUSHING

5010192

$6.35

8

BOLT, CARRIAGE

7515316

$2.38

8

BOLT, CARRIAGE

7515316

$2.38

9

SILENCER

1261223-489

$629.99

10

WASHER, CLEAN OUT

7556230

$1.19

11

BOLT

7512666

$2.38

12

SEAL, EXHAUST

3610047

$36.41

13

SPRING, EXHAUST

7041804

$8.89

13

SPRING, EXHAUST

7041804

$8.89

14

PIPE, EXHAUST

1262212-489

$539.99

15

SHIELD, EXHAUST, OUTER

5254444

$64.75

16

SCREW

7518490

$1.19

17

WASHER, FLAT

7556586

$15.99

18

MANIFOLD, BLACK

1261564-489

$104.99

19

BRACKET, SILENCER, FRAME

5241663

$10.51

20

SHIELD, HEAT, EXHAUST

5250184

$42.74

21

GASKET

5811511

$48.56

22

SEAL, EXHAUST

3610119

$20.22

23

SPRING-EXHAUST

7041789

$8.89

23

SPRING-EXHAUST

7041789

$8.89

24

SCREW

7517386

$1.19
