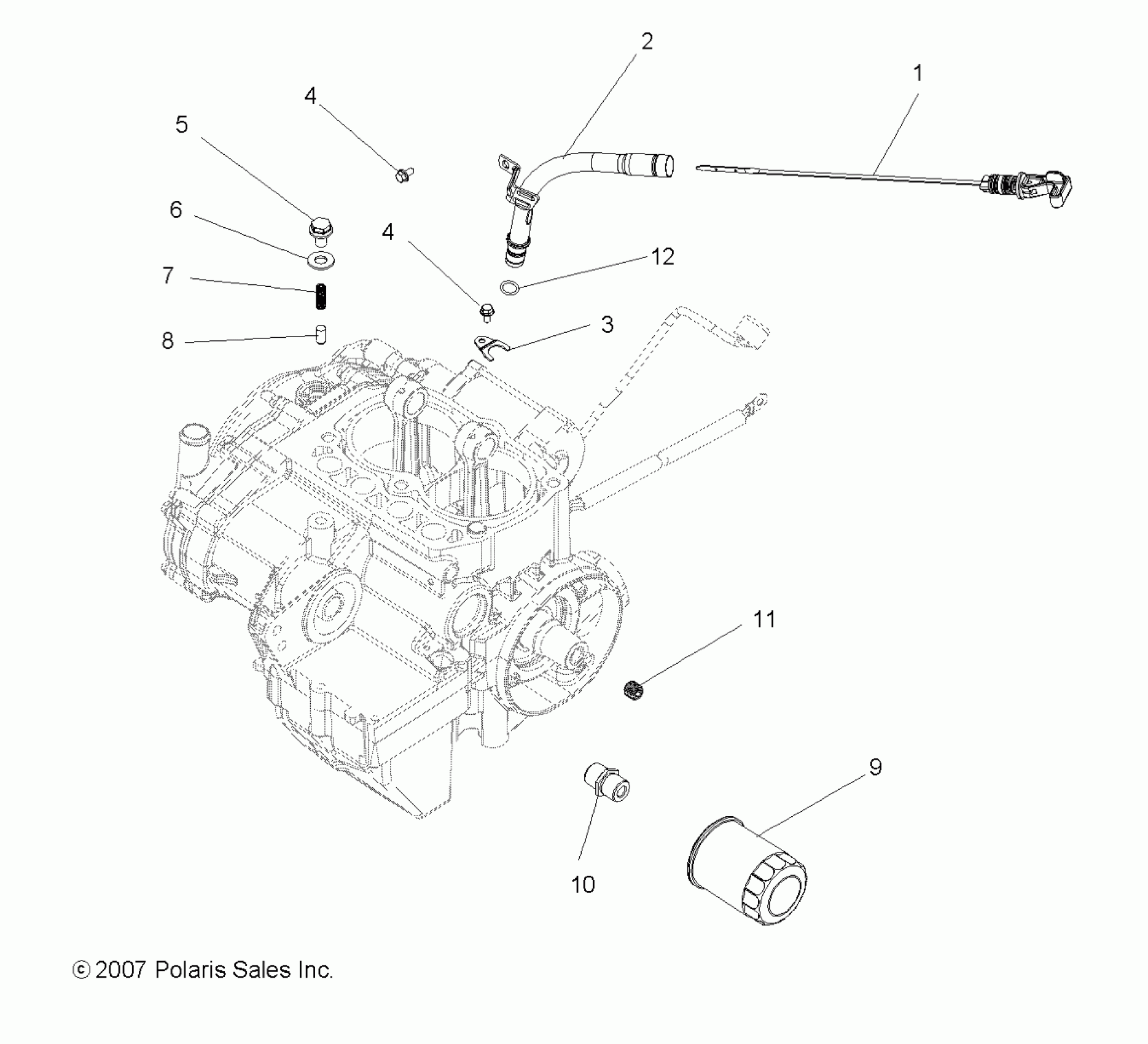

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ENGINE, DIPSTICK and OIL FILTER - A13MH76AD/AX/AZ (49ATVDIPSTICK08SP800EFI) Diagram

#

Description
Price

1

ASM., DIPSTICK [INCL. O-RING]

1204368

Unavailable

2

TUBE, OIL FILL

1202881

$28.32

3

CLAMP, OIL FILL TUBE

5254118

$30.79

4

SCREW

7517277

$3.19

4

SCREW

7517277

$3.19

5

SCREW

7516824

$39.99

6

WASHER

7556005

$5.59

7

SPRING, PRESSURE RELIEF

7043880

$12.79

8

PIN, DOWEL

7661127

$12.94

9

FILTER-OIL (10 MICRON)

2540086

$11.99

9

FILTER-HD,OIL [HD OPTION]

2522485

$15.99

10

NIPPLE, OIL FILTER [BUILT 1/30/13 AND BEFORE]

2540115

Unavailable

10

NIPPLE, OIL FILTER [BUILT 1/31/13 AND AFTER]

2521388

$27.99

11

PLUG, SOCKET

7518835

$5.59

12

O-RING

5414047

$3.59
