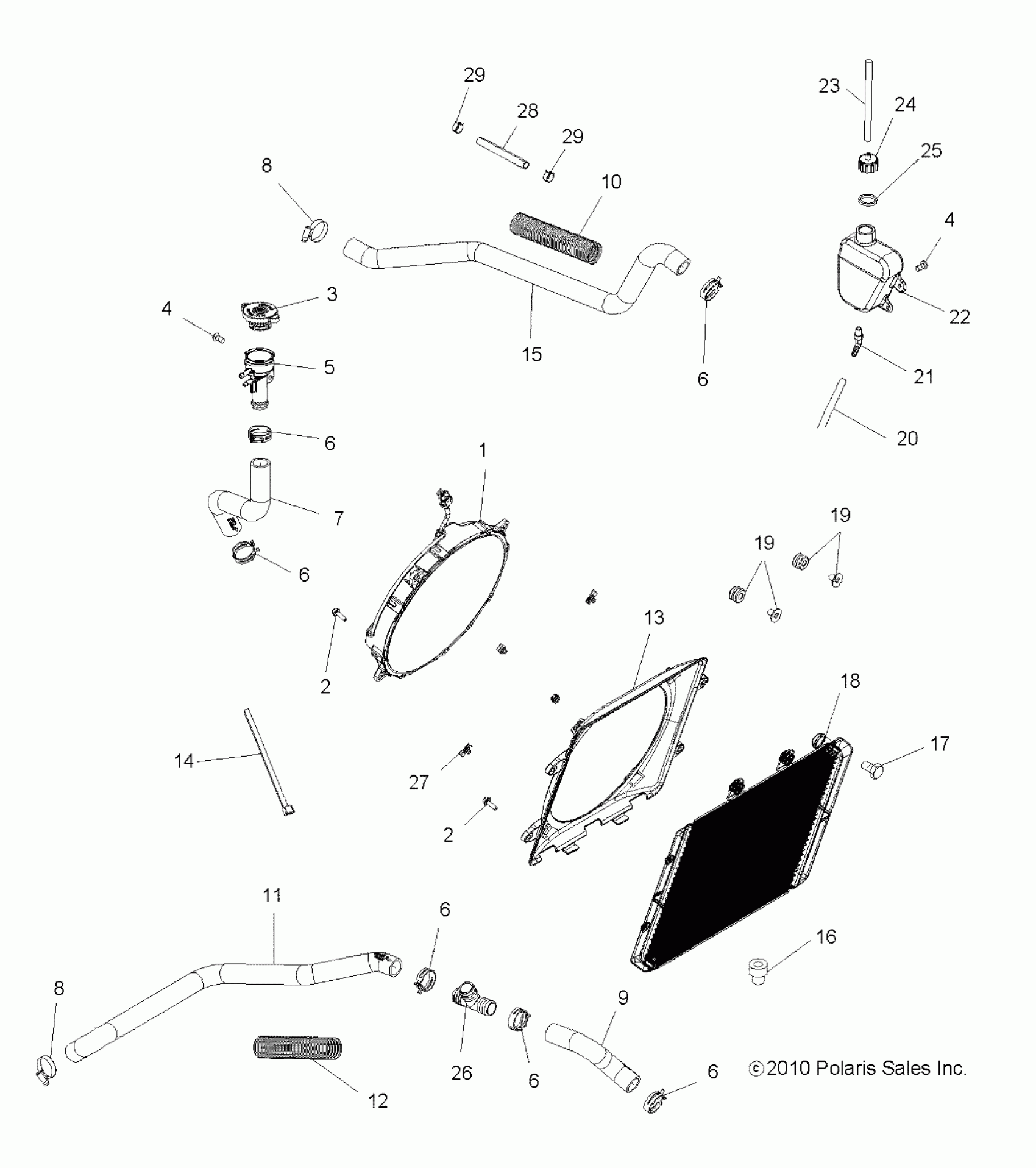

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ENGINE, COOLING SYSTEM - A13MH76AD/AX/AZ (49ATVCOOL11SP800) Diagram

#

Description
Price

1

ASM., FAN

2410413

$251.99

2

SCREW

7516822

$2.39

2

SCREW

7516822

$2.39

3

Cap, Pressure

1240508

$48.56

4

Screw

7512084

$1.49

4

Screw

7512084

$1.49

5

FILLER, REMOTE COOLANT

5438110

Unavailable

6

CLAMP, SPRINGBACK

7080843

$3.99

6

CLAMP, SPRINGBACK

7080843

$3.99

6

CLAMP, SPRINGBACK

7080843

$3.99

6

CLAMP, SPRINGBACK

7080843

$3.99

6

CLAMP, SPRINGBACK

7080843

$3.99

6

CLAMP, SPRINGBACK

7080843

$3.99

7

HOSE, FILLER NECK

5414229

$31.99

8

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

8

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

9

HOSE, RADIATOR, LOWER

5414222

$27.99

10

CONDUIT, FLEX

5521794-17

Unavailable

11

HOSE, ENGINE, LOWER

5414220

$51.99

12

CONDUIT, FLEX

5521794-17

Unavailable

13

SHROUD, FAN

5437845

$47.99

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

HOSE, RADIATOR, UPPER

5414219

$51.99

16

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

17

Screw

7515179

$2.39

18

ASM., RADIATOR [INCL. 19]

1240521

$421.19

19

ASM., GROMMET AND INSERT

5413155

$3.99

19

ASM., GROMMET AND INSERT

5413155

$3.99

20

Line, Fuel

8450003-1525

$84.99

21

FITTING, 90 DEGREE

7052065

$7.19

22

TANK-SURGE

5436936

$75.99

23

LINE, FUEL

8360009-600

Unavailable

24

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.79

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

CONNECTOR, TEE

7052373

$10.39

27

CLIP-"U",M6.0X1.0

7547366

$5.99

28

HOSE

8450120-600

Unavailable

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49
