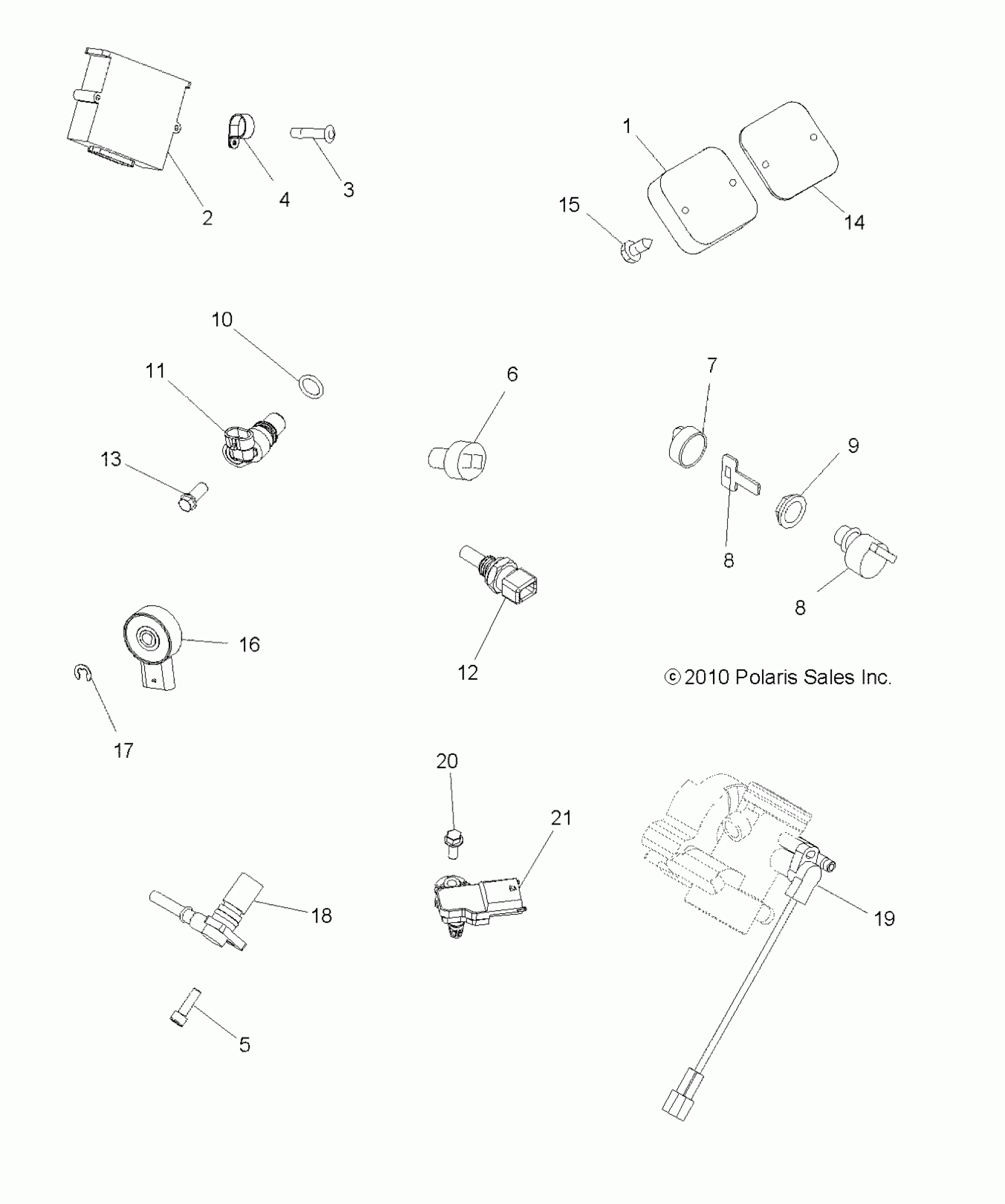

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ELECTRICAL, SWITCHES and SENSORS and ECM - A13MH76AD/AX/AZ (49ATVELECT11SP800) Diagram

Regulator

4012748

$251.74

ECU

4011599

$612.74

SCR-TXPH-10-24X2 CHS ZY3

7518486

$3.17

CLAMP

7080585

$3.97

SCREW

7519224

$4.74

SWITCH [BRAKE LIGHTS]

4110164

$204.24

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH, KEY, 3 POSITION [INCL. KEY, SWITCH, COVER]

4012165

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

SWITCH, KEY, 3 POSITION [INCL. KEY, SWITCH, COVER]

4012165

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

O-RING

3234302

$7.27

SENSOR, SPEED

4012167

$109.27

SENSOR-THERMISTER

4010644

$91.97

SCREW

3234247

$5.56

COVER, VOLTAGE REGULATOR

5253294

$11.32

Screw

7515179

$2.38

SWITCH, ROTARY [GEAR POSITION]

3233835

$142.49

RING, RETAINING

3233834

$10.32

SENSOR, CRANK POSITION

2410720

$117.37

Sensor, Throttle Position [Must also order O-Ring]

2410342

$105.22

O-Ring, TPS [Used w/2410342]

5413812

$2.02

Screw

7517658

$5.56

Sensor, T-Map

2410422

$97.13
