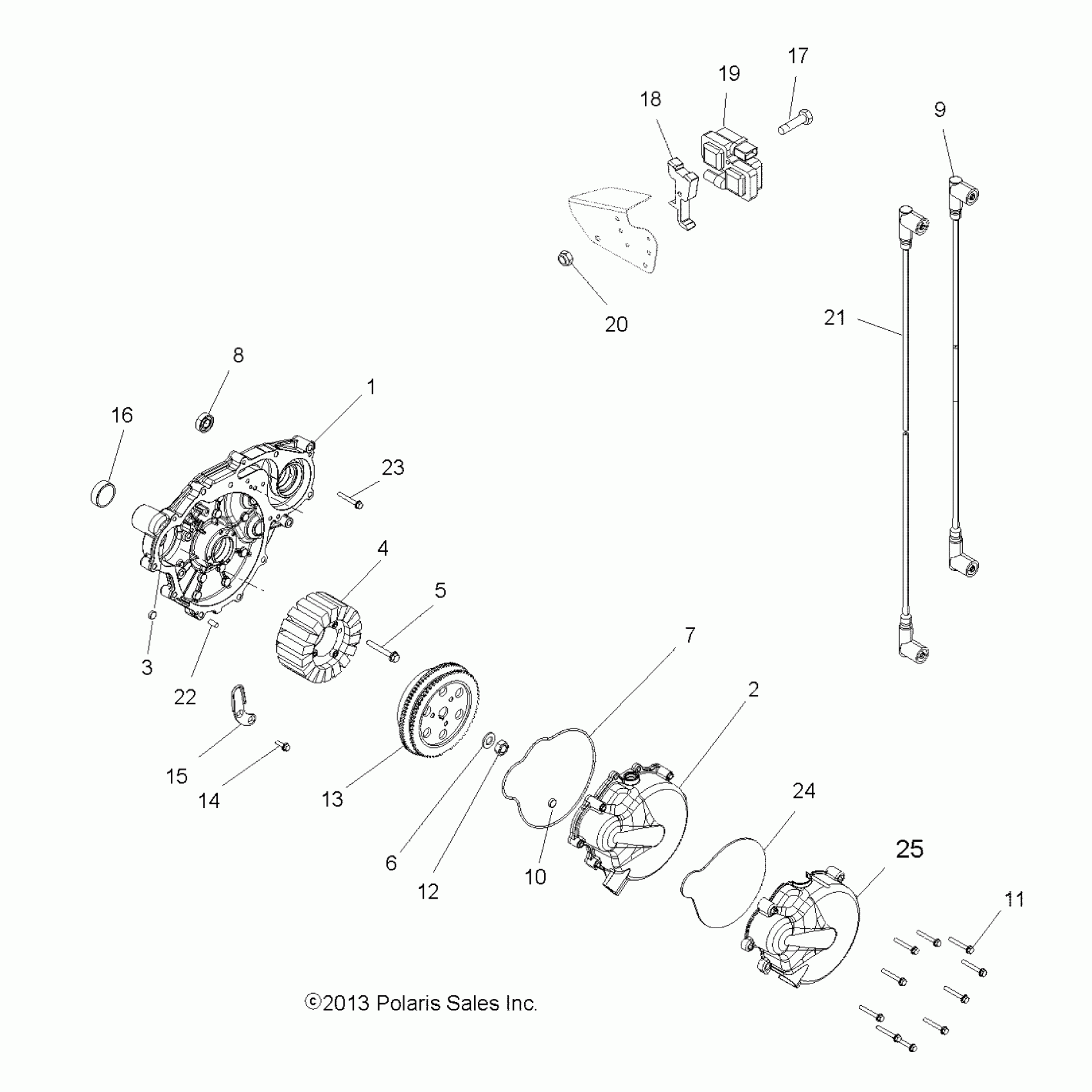

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ ELECTRICAL, IGNITION SYSTEM - A13MH76AD/AX/AZ (49ATVIGNITION13SP6X6) Diagram

#

Description
Price

1

ASM., ENGINE COVER, MAGNETO [INCL. 3,22]

1204712

$203.99

2

ASM., COVER, STATOR, EFI [INCL. BUSHING]

1204144

$189.19

3

BUSHING

-------

Unavailable

4

STATOR

4014034

$452.39

5

SCREW

7517848

$5.59

6

WASHER

7555907

$5.59

7

SEAL, STATOR COVER

5413972

$3.99

8

SEAL, OIL

5412455

$24.27

9

WIRE, SPARK PLUG

4012438

$55.99

10

BUSHING

3514553

Unavailable

11

Screw

7517950

$5.59

12

NUT

7547213

$4.79

13

FLYWHEEL

4013968

$335.99

14

SCREW

7517598

$11.33

15

BRACKET, STATOR, HOLDDOWN

5256627

$31.99

16

SEAL, FLANGED

5412881

$31.99

17

SCREW

7515156

$3.99

18

SPACER-COIL MOUNT

5436577

$3.99

19

KIT, IGNITION COIL [INCL. 17-20]

2876049

$227.99

20

Nut, Nylok

7542122

$1.49

21

WIRE, SPARK PLUG

4012439

$55.99

22

PIN, DOWEL

7661946

Unavailable

23

SCREW

7516818

$5.59

24

COVER, SOUND DAMPENING

5813050

$31.99

25

COVER, STATOR, OUTER

5436652

Unavailable
