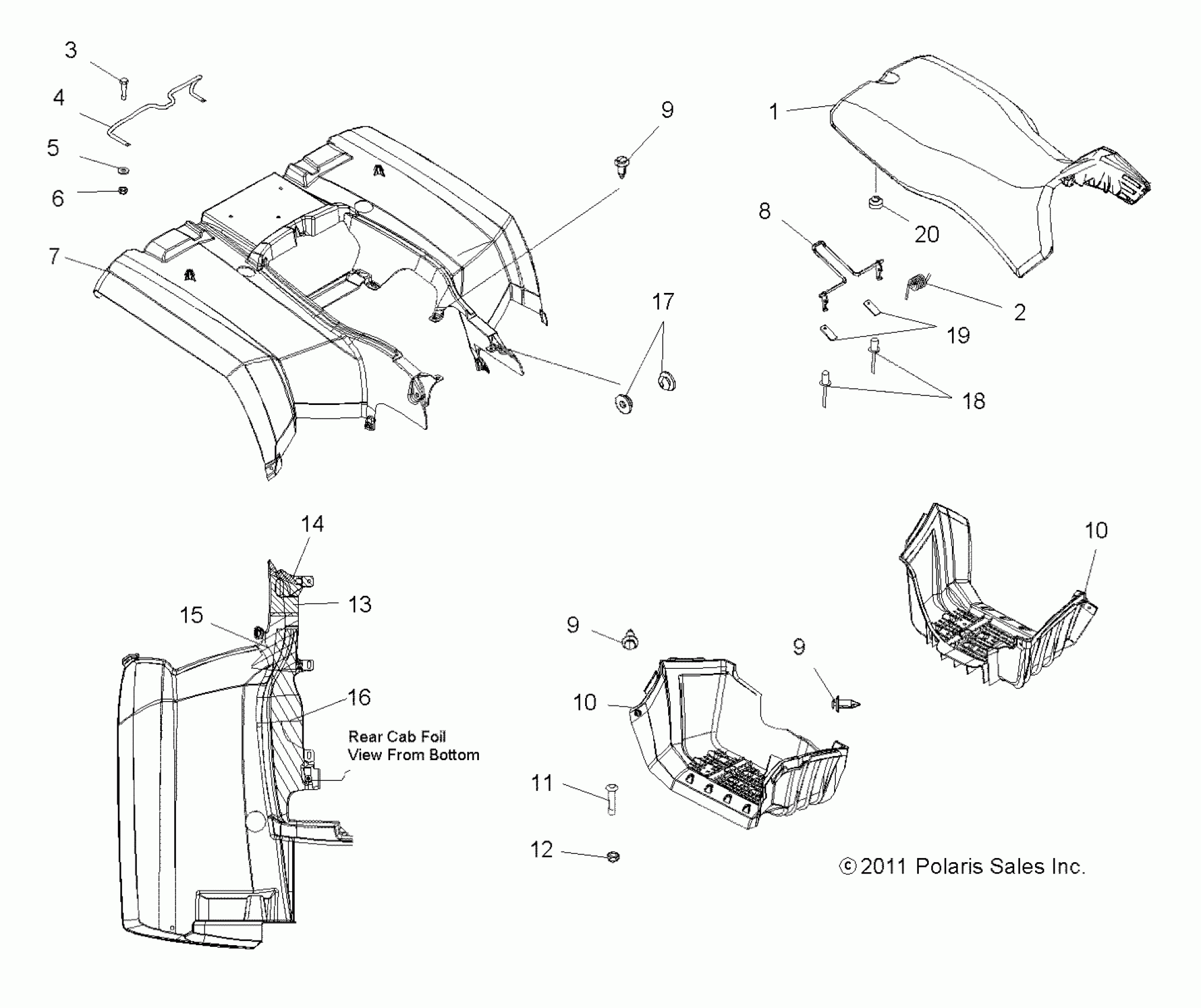

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ BODY, REAR CAB, SEAT and FOOTWELLS - A13MH76AD/AX/AZ (49ATVCABRR13SP800) Diagram

#

Description
Price

1

ASM., SEAT, BLACK [INCL. 2,8,18-20]

2684882-070

$445.22

1

ASM., COVER, SEAT

2684045

$145.70

2

SPRING, LATCH

7041370

$9.52

3

Screw

7511930

$2.38

4

RETAINER, SEAT LATCH

5250745

Unavailable

5

WASHER

7555792

$4.76

6

Nut, Nylok

7541925

$0.79

7

CAB, REAR, INDY RED [AZ]

5436319-293

$396.65

7

CAB, REAR, MEDIUM YELLOW [AD]

5436319-053

Unavailable

7

CAB, REAR, SAGEBRUSH GREEN METALLIC [AX]

5436319-498

Unavailable

8

LATCH, SEAT

1040387

$48.56

9

Rivet

7661855

$1.19

9

Rivet

7661855

$1.19

9

Rivet

7661855

$1.19

10

FOOTWELL, BLACK, LH

5436931-070

$230.70

10

FOOTWELL, CUT, BLACK, RH

5438558-070

$138.89

10

FOOTWELL, BLACK, LH

5436931-070

$230.70

10

FOOTWELL, CUT, BLACK, RH

5438558-070

$138.89

11

SCREW

7517230

$1.19

12

Nut, Nylok

7542122

$1.19

13

FOIL, FRONT

5813177

Unavailable

14

FOIL, CAB, REAR, EDGE

5813029

$52.24

15

FOIL, CAB, REAR, MIDDLE

5813030

Unavailable

16

FOIL, CAB, REAR

5813043

$32.37

17

GROMMET, RUBBER, MOUNT

5412623

$2.38

18

RIVET

7621403

$1.19

19

BRACKET, LEVER RETAINER

5211033

$34.99

20

BUMPER-RUBBER

5412067

$3.97
