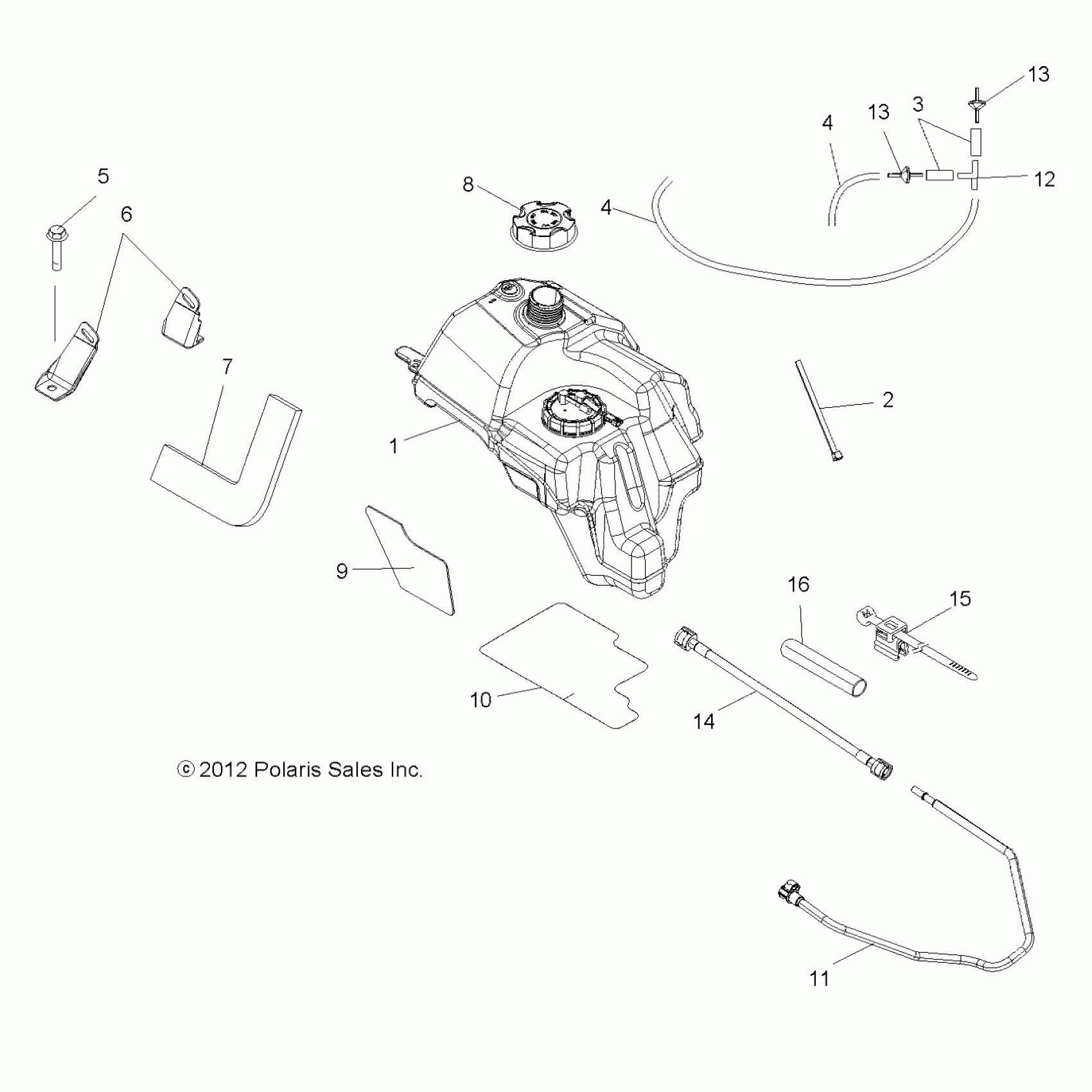

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ BODY, FUEL TANK ASM. - A13MH76AD/AX/AZ (49ATVFUEL13SP800) Diagram

#

Description
Price

1

ASM., TANK, FUEL [INCL. FOIL, PUMP]

2520865

Unavailable

1

KIT, FUEL PUMP [INCL. FUEL PUMP ASM., GASKET, NUT, CLEANING PAD, INSTRUCTIONS]

2204308

$457.59

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

LINE, OIL

8450061-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

SCREW

7517219

$4.79

6

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

6

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

7

SEAL, FOAM

5812265

$27.99

8

CAP-GAS TANK [INCL. SEAL]

5439075

$23.99

9

FOIL

5813282

$7.19

10

FOIL

5813218

$8.79

11

LINE, FUEL, HARD

2520820

$51.99

12

FITTING, T

7052048

$3.99

13

VALVE, CHECK, VENT

7051011

Unavailable

13

VALVE, CHECK, VENT

7051011

Unavailable

14

LINE, FUEL, SOFT

2520821

$51.99

15

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

16

SLEEVE, TUBE, TWIST

5521922

Unavailable
