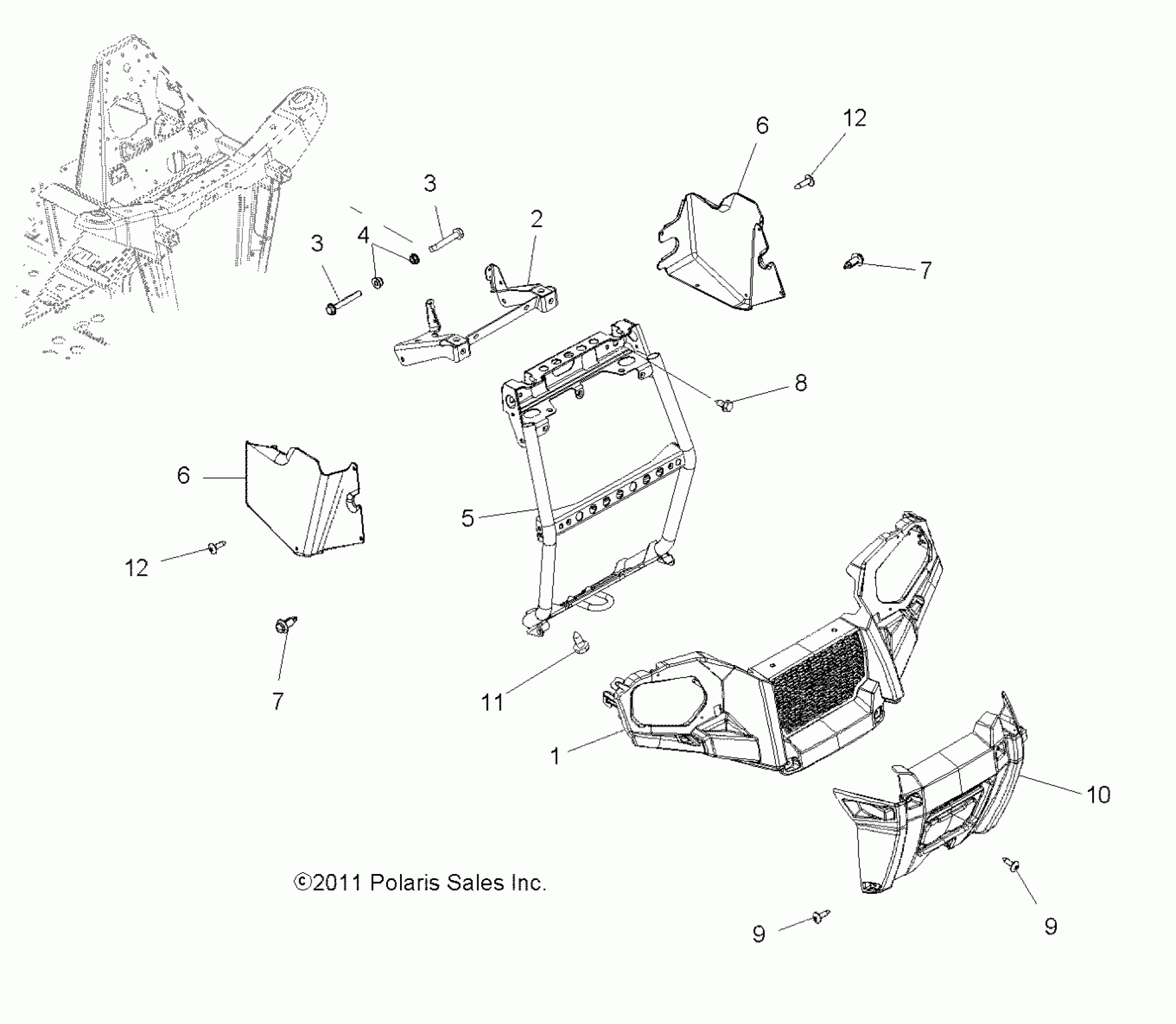

Polaris SPORTSMAN 800 EFI - A13MH76AD/AX/AZ BODY, FRONT BUMPER and MOUNTING - A13MH76AD/AX/AZ (49ATVBUMPER12SP500TRG) Diagram

#

Description
Price

1

BUMPER, FRONT, BLACK

5438559-070

$209.99

2

BRACKET, RADIATOR, UPPER, BLACK

5255572-329

$68.79

3

BOLT, FLANGE

7518341

$4.76

3

BOLT, FLANGE

7518341

$4.76

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

5

FRAME, BUMPER, FRONT, BLACK

1018374-067

Unavailable

6

SHIELD, SIDE, RADIATOR, LH

5438689

$33.24

6

SHIELD, SIDE, RADIATOR, RH

5438690

$34.99

6

SHIELD, SIDE, RADIATOR, LH

5438689

$33.24

6

SHIELD, SIDE, RADIATOR, RH

5438690

$34.99

7

Rivet

7661855

$1.19

7

Rivet

7661855

$1.19

8

SCREW

7517386

$1.19

9

SCREW

7517685

$1.59

9

SCREW

7517685

$1.59

10

COVER, RADIATOR ACCESS, BLACK

5438557-070

$97.13

11

SCREW

7515399

$1.19

12

SCREW

7519092

$1.19

12

SCREW

7519092

$1.19
