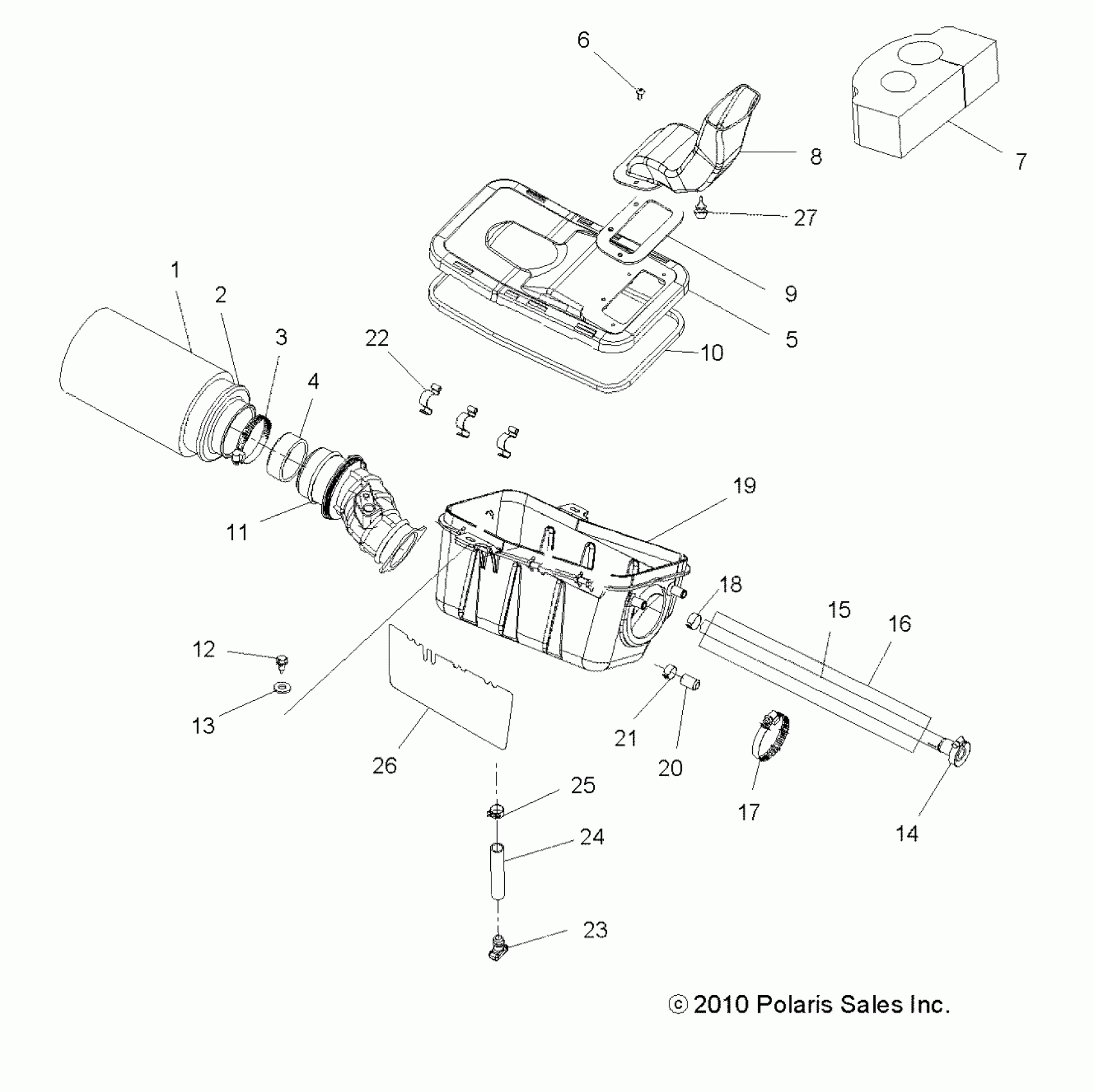

Polaris SPORTSMAN 800 EFI - A11MH76AX/AZ ENGINE, AIR INTAKE SYSTEM - A11MH76AX/AZ (49ATVAIRBOX11SP800) Diagram

#

Description
Price

1

Filter, Preclean Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

4

Sleeve, Carburetor, Inner

5433847

$13.59

5

Cover, Air Box

5432868

$51.99

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Seal, Foam

5811626

$31.99

8

DUCT, AIR INLET

5438625

$47.99

9

Gasket, Intake

5411422

$6.63

10

Seal, Cover

5812829

$27.02

11

BOOT, AIR INTAKE, EFI

5414037

$71.99

12

Screw

7515179

$2.39

13

Washer, Flat

7555859

$1.49

14

Clamp, Hose, Spring

7080694

$6.53

15

HOSE, BREATHER, SPLIT

5414094

Unavailable

16

Sheath, Reflective Sleeve

8450108-34

Unavailable

17

Clamp, Narrow Band

7080511

$4.79

18

Clamp, Hose

7080699

$1.59

19

BOX, AIR

5438552

$135.99

20

Cap, End

5433396

$4.79

21

Clamp, Hose

7080534

$1.59

22

CLIP-AIR BOX

5242044

$9.59

23

Plug, Trap

5435299

$6.39

24

Line, Fuel

8450059-150

Unavailable

25

Clamp, Hose

7080650

$3.99

26

FOIL

5813652

$27.99

27

BUMPER

5412465

$1.59
