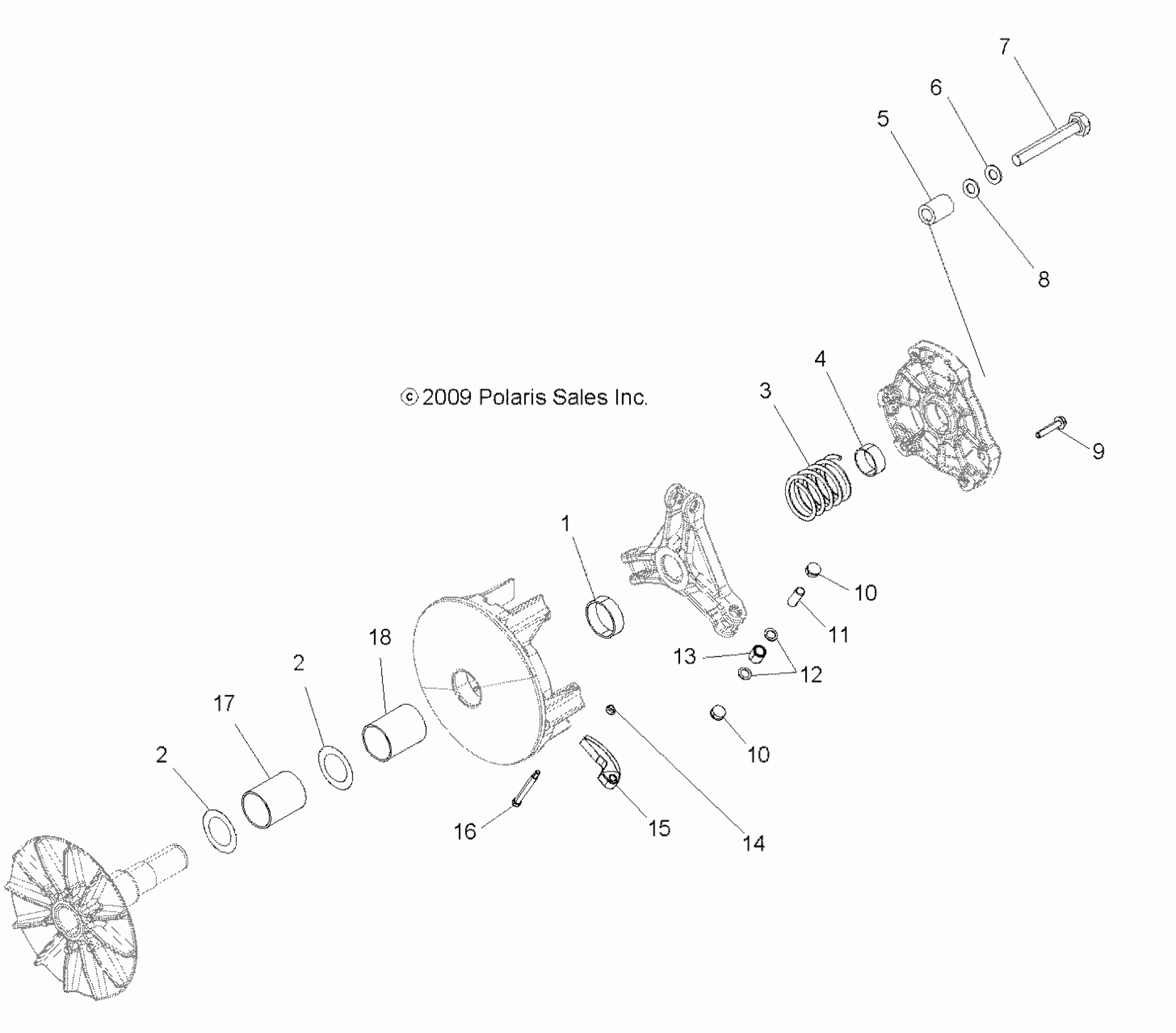

Polaris SPORTSMAN 800 EFI - A11MH76AX/AZ DRIVE TRAIN, PRIMARY CLUTCH (Built 11/12/10 and Before) - A11MH76AX/AZ (49ATVCLUTCH10SP800) Diagram

#

Description
Price

-

Asm., Drive Clutch, Basic, Bearing [Incl. 1,2,4,9-14,16-18][Built 11/12/10 and Before]

1322851

$719.99

1

Bearing, DU 1.75

3514492

$31.99

2

WASHER-CLUTCH,VESPEL

7556335

$6.39

2

WASHER-CLUTCH,VESPEL

7556335

$6.39

3

SPRING-CLUTCH, 35-240

7043594

$47.99

4

Bearing, Cover

3514684

$15.99

5

BUSHING-.437 X.770 X.50

5430261

$7.19

6

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

7

Bolt [Built 1/02/11 and After]

7519287

$34.99

7

Bolt [Built 1/01/11 and Before]

7518197

Unavailable

8

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

9

SCREW

7518062

$4.79

10

BUTTON, CLUTCH

5431936

Unavailable

10

BUTTON, CLUTCH

5431936

Unavailable

11

PIN-ROLLER

5020422

$2.39

12

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

13

ASM-ROLLER AND BUSHING

1321622

$32.37

14

NUT, FLEXLOC

7541906

$3.19

15

Weight, Shift, 23-62G

5632337

$31.99

16

BOLT, SHOULDER

7512266

$3.19

17

Asm., Bearing, Non-Braking

1521185

$59.99

18

SPACER

5632060

$52.79
