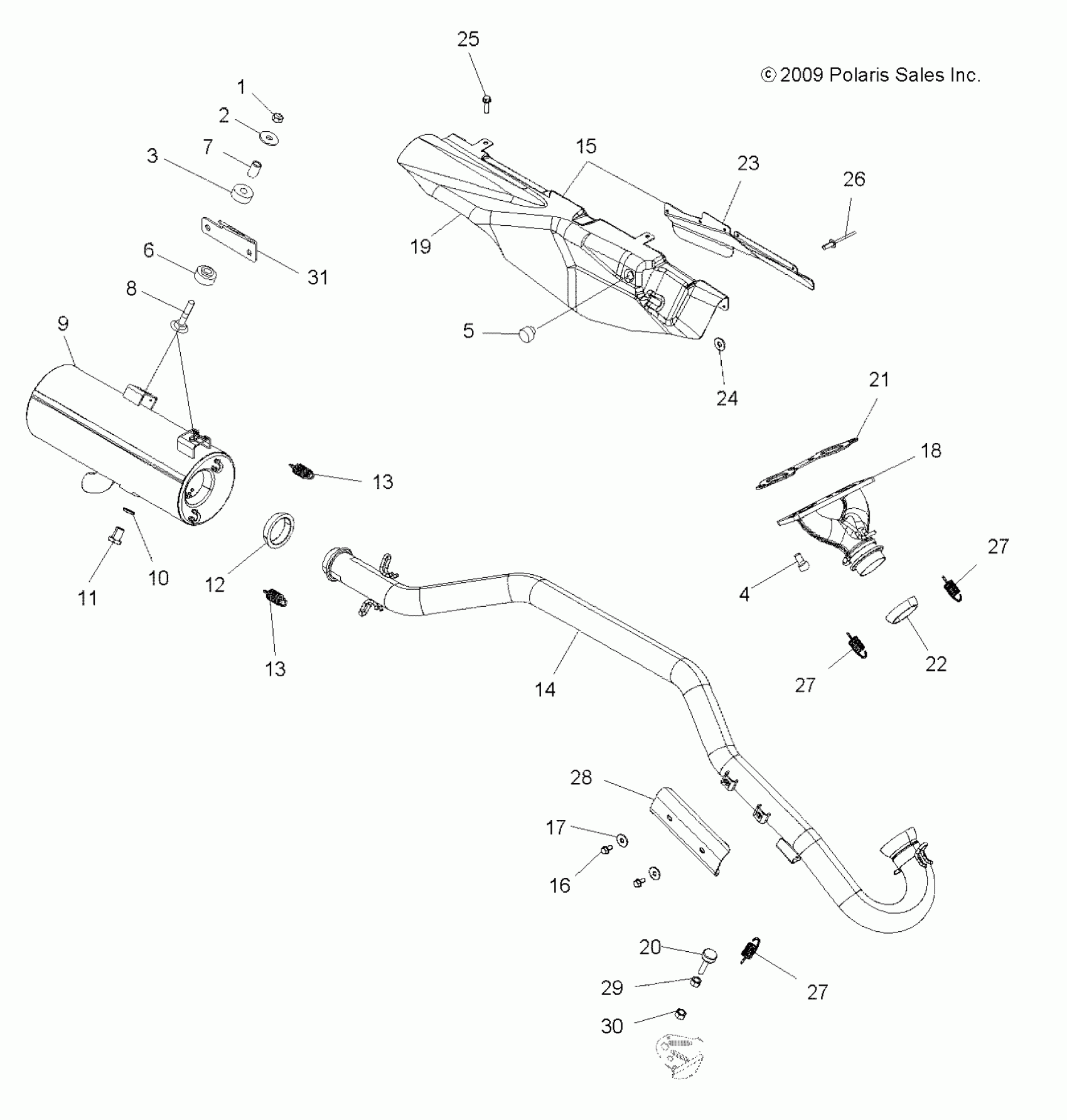

Polaris SPORTSMAN 800 EFI - A10MH76AJ/MN76AX/AZ ENGINE, EXHAUST - A10MH76AJ/MN76AX/AZ (49ATVEXHAUST10SP800) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

SCREW

7518984

$7.99

5

BUMPER-RUBBER

5412067

$3.99

6

DAMPENER, VIBRATION

5412659

$3.99

7

BUSHING

5010192

$6.39

8

BOLT, CARRIAGE

7515316

$2.39

9

SILENCER

1261223-489

$523.59

10

WASHER, CLEAN OUT

7556230

$1.49

11

BOLT

7512666

$2.39

12

SEAL, EXHAUST

3610047

$36.41

13

SPRING, EXHAUST

7041804

$7.99

13

SPRING, EXHAUST

7041804

$7.99

14

Pipe, Exhaust

1262131-489

Unavailable

15

Asm., Shield [Incl. 19,23]

2633625

$214.16

16

SCREW

7518490

$1.49

17

Washer

7555935

$2.39

18

MANIFOLD, BLACK

1261564-489

$92.39

19

SHIELD, OUTER

5251237

$111.33

20

ISOLATOR

3022073

Unavailable

21

GASKET

5811511

$48.56

22

SEAL, EXHAUST

3610119

$19.99

23

SHIELD, INNER

5251532

$54.99

24

WASHER

7555727

$1.49

25

SCREW

7517386

$1.49

26

RIVET

7621330

$1.49

27

SPRING-EXHAUST

7041789

$7.99

27

SPRING-EXHAUST

7041789

$7.99

27

SPRING-EXHAUST

7041789

$7.99

28

SHIELD, HEAT, EXHAUST

5244014

$39.99

29

NUT

7542301

$1.59

30

NUTSERT

7547101

$9.59

31

BRACKET, SILENCER, FRAME

5241663

$10.39
