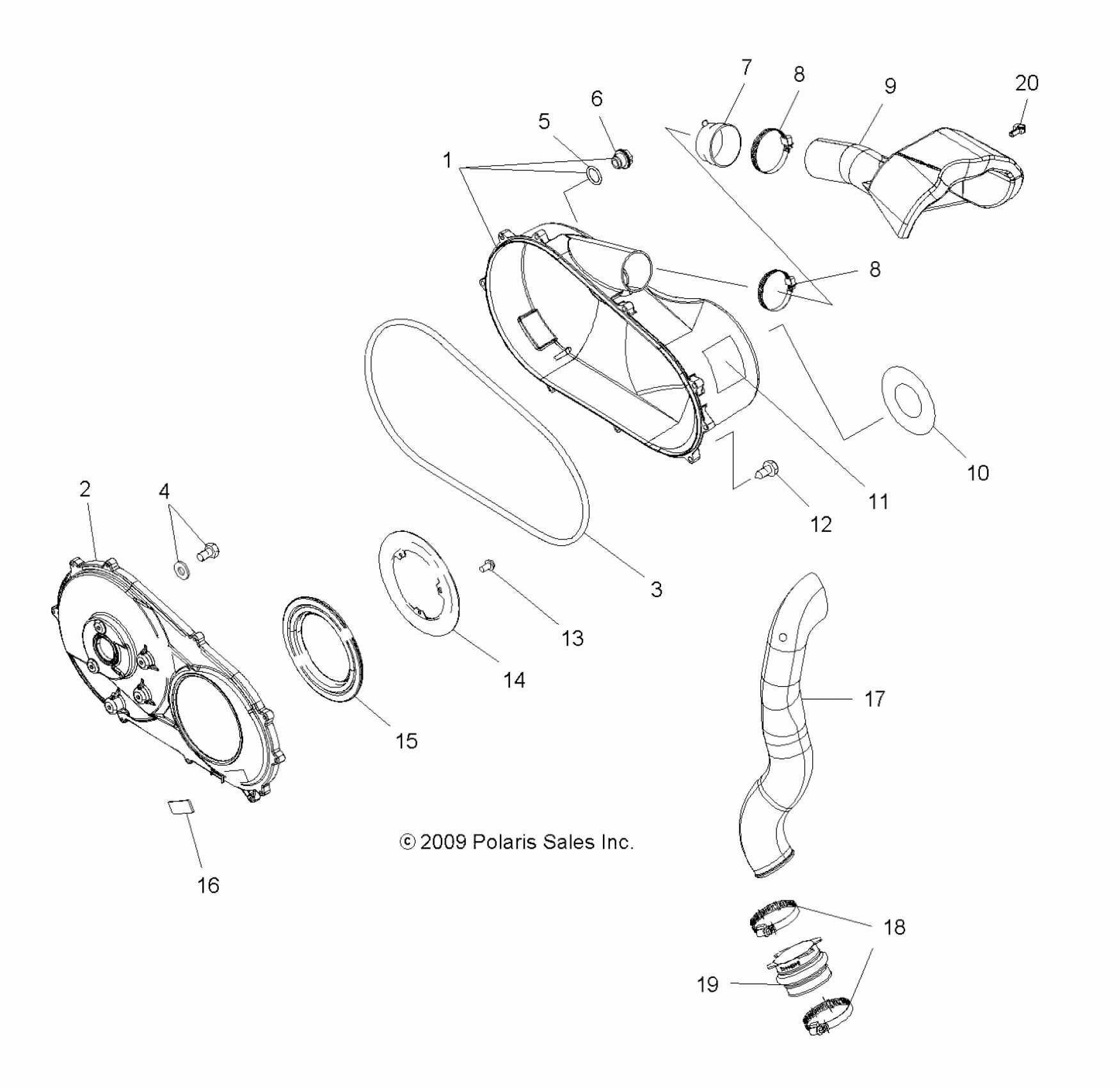

Polaris SPORTSMAN 800 EFI - A10MH76AJ/MN76AX/AZ BODY, CLUTCH COVER and DUCTING - A10MH76AJ/MN76AX/AZ (49ATVCLUTCHCVR10SP800EFI) Diagram

#

Description
Price

1

Asm., Clutch Cover, Outer [Incl. 5,6]

2633926

$175.99

2

Kit, Inner Clutch Cover [Incl. 3,15,16]

2201955

$140.79

3

SEAL, COVER, CLUTCH, OUTER

5521738

$42.46

4

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

5

O RING-.364X.504X.07

5410542

Unavailable

6

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

7

BOOT, DUCT

5412636

$23.99

8

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

8

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

9

DUCT, CLUTCH OUTLET

5436954

$167.19

10

DECAL, AUTOMATIC TRANSMISSION

7172746

Unavailable

11

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

12

SCREW

7512094

$1.59

13

SCREW

7517867

$1.59

14

BRACKET, RETAINER, SEAL, PLATED

5244527

$31.99

15

SEAL, COVER, CLUTCH, INNER

5412635

$43.99

16

STOPPER, INNER CLUTCH COVER

5412675

$8.79

17

Duct, Clutch Air Inlet

5434044

$114.99

18

CLAMP, HOSE

7080451

$7.19

19

BOOT, CLUTCH INTAKE

5412634

$11.19

20

CLIP, SILENCER BOX

7670102

$2.39
