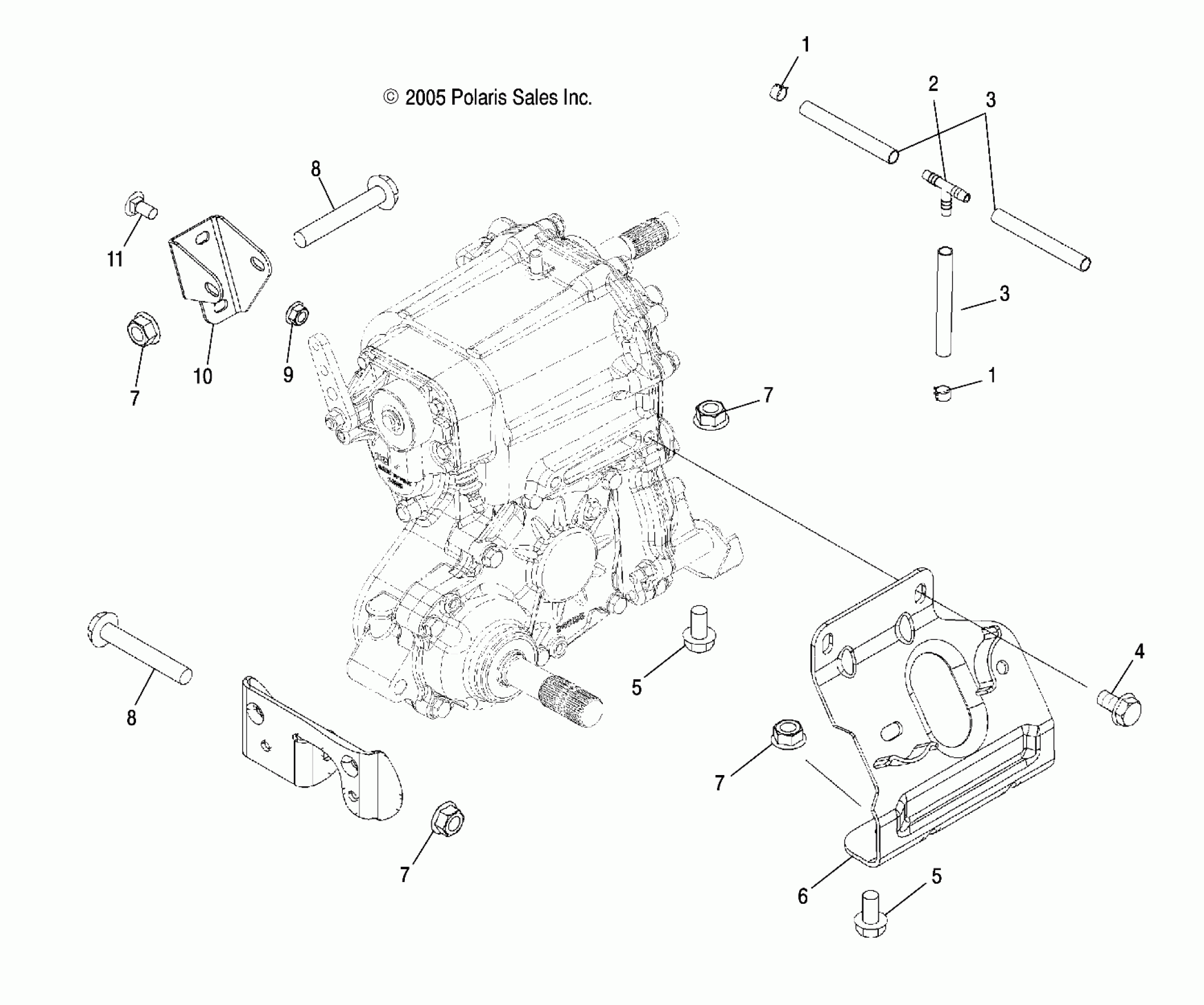

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY TRANSMISSION, MOUNTING - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (4999200299920029C13) Diagram

#

Description
Price

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

2

T-Fitting

7052075

$9.59

3

Line, Fuel

8450003-1525

Unavailable

3

Line, Fuel

8450003-1525

Unavailable

4

SCREW

7517632

$5.59

5

Screw

7517289

$4.79

5

Screw

7517289

$4.79

6

Mount, Rear Engine, Black

1013134-067

$114.39

7

NUT-3/8-24 FLG LOC

7547263

$3.19

7

NUT-3/8-24 FLG LOC

7547263

$3.19

7

NUT-3/8-24 FLG LOC

7547263

$3.19

7

NUT-3/8-24 FLG LOC

7547263

$3.19

8

Bolt, Flange

7518415

$4.79

8

Bolt, Flange

7518415

$4.79

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

Bracket, Mount, Rear Transmission

5247348

$47.99

11

Bolt, Carriage

7512377

$4.79
