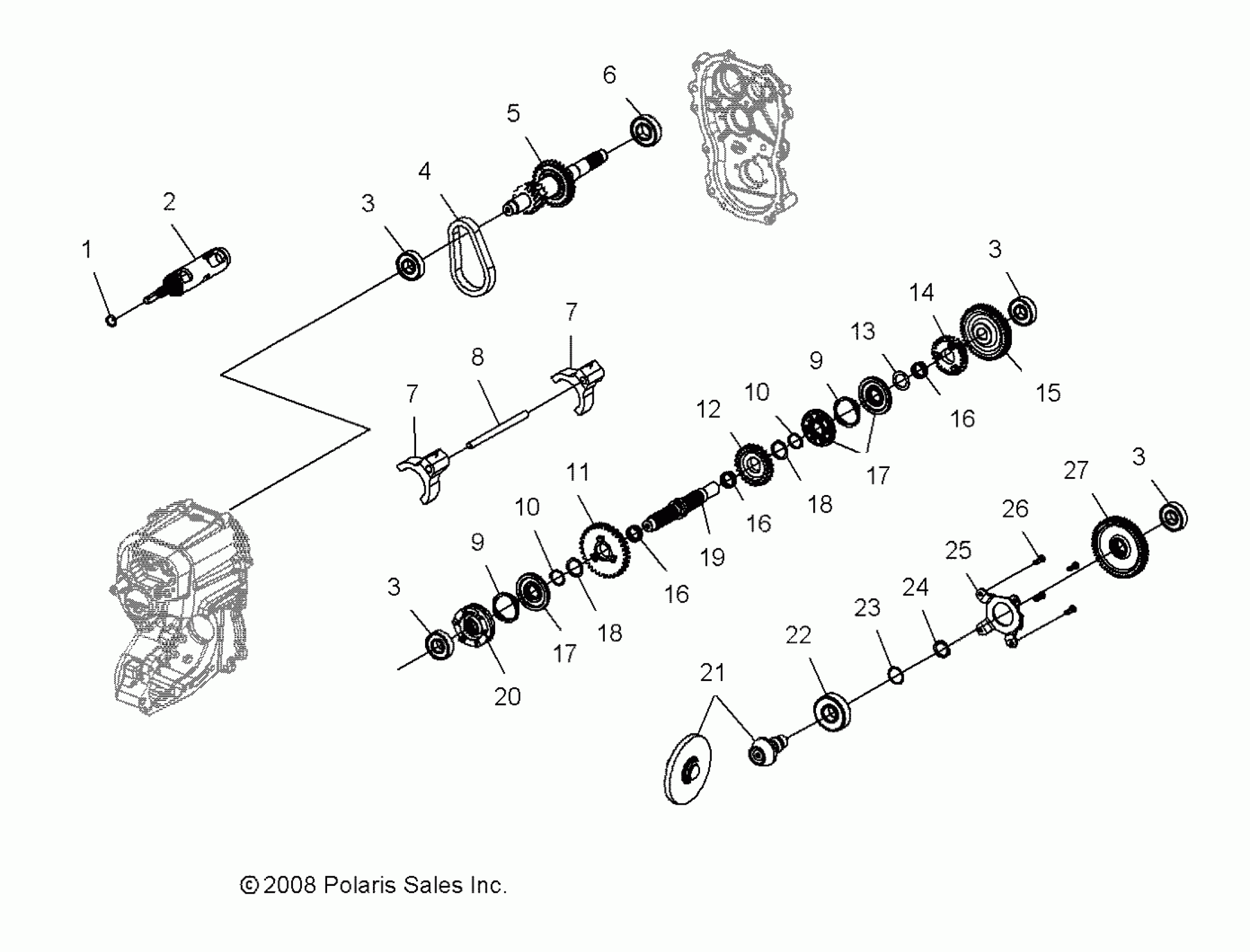

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY TRANSMISSION, INTERNAL - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVTRANSINTL08SP800) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1332459

Unavailable

1

O-Ring

3233548

$27.99

2

DRUM, SHIFT

3234211

$255.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

Chain, Silent

3233036

Unavailable

5

Shaft, Input

3234133

Unavailable

6

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

7

FORK, SHIFT

3234220

$155.99

7

FORK, SHIFT

3234220

$155.99

8

RAIL, SHIFT SHAFT

3233860

$52.79

9

SPRING, WAVE

3234144

$26.39

9

SPRING, WAVE

3234144

$26.39

10

RING, RETAINING

3233850

$10.39

10

RING, RETAINING

3233850

$10.39

11

GEAR, 33T

3233852

$231.99

12

Sprocket, 24T

3233854

$149.59

13

WASHER

3233855

$10.39

14

Gear, 23T

3234135

Unavailable

15

GEAR, 51T

3234136

$223.99

16

BEARING, NEEDLE

3233718

$35.99

16

BEARING, NEEDLE

3233718

$35.99

16

BEARING, NEEDLE

3233718

$35.99

17

ENGAGEMENT DOG

3233875

$155.99

17

ENGAGEMENT DOG

3233875

$155.99

18

WASHER

3233851

$10.39

18

WASHER

3233851

$10.39

19

Shaft, Reverse

3233853

$267.13

20

ENGAGEMENT DOG

3234040

$167.19

21

SUBASM-GRND SPIRL BVL(411466)

3234911

$371.99

22

BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM

3235328

$31.99

23

SPACER

3233357

$21.99

24

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

25

COVER, BEARING

3234122

$65.99

26

SCREW, TORX

3234086

$5.59

27

GEAR, 56T

3234137

Unavailable
