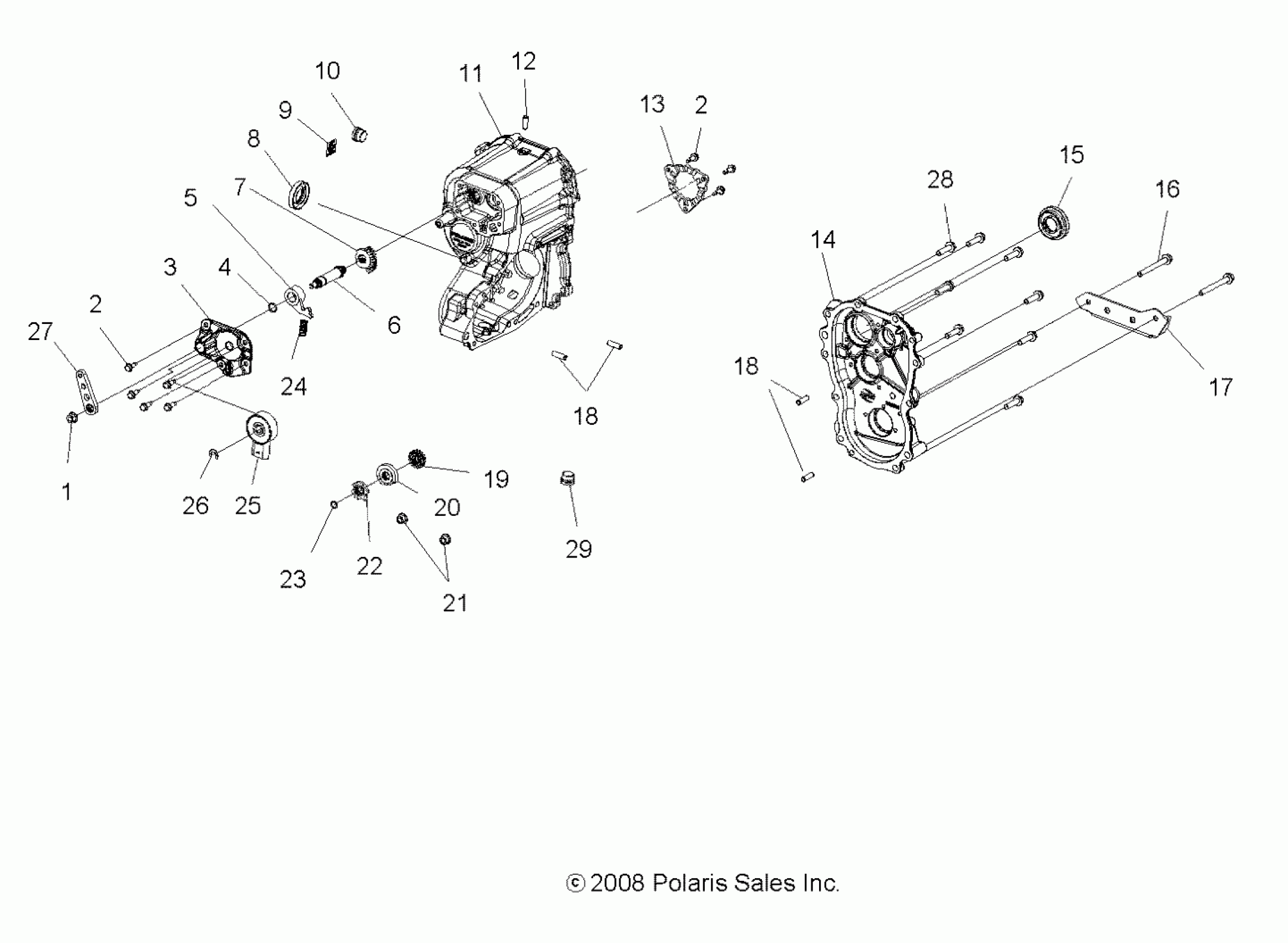

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY TRANSMISSION - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVGEARCASE800EFI) Diagram

#

Description
Price

-

Asm., Gearcase

1332459

Unavailable

1

NUT, LOCK

3233961

$2.79

2

SCREW

3233826

$9.59

2

SCREW

3233826

$9.59

3

COVER

3234188

$107.99

4

O-RING

3233869

$5.59

5

Pawl, Detent

3233829

$31.99

6

SHAFT, SHIFT

3233831

$59.99

7

GEAR-SECTOR,31T

3233832

$31.99

8

Seal, Triple Lip

3233788

$31.99

9

LABEL, OIL FILL/LEVEL CHECK

3234143

Unavailable

10

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.19

11

GEARCASE, MAIN

3234358

Unavailable

12

TUBE, VENT

3233524

$7.19

13

PLATE, PARK

3233915

$39.99

14

COVER, MAIN, LH

3234221

$339.99

15

Seal, Dual Lip

3233874

$31.99

16

SCREW

3234042

$7.19

17

BRACKET, TRANSMISSION MOUNT

3234142

$27.99

18

PIN, DOWEL

3233247

$7.19

18

PIN, DOWEL

3233247

$7.19

19

GEAR, 16T

3233839

$31.99

20

DISC, LOCKOUT

3233838

$26.39

21

NUT

3234043

$5.59

22

Star, Detent

3233909

$23.99

23

O-RING

3233076

$6.39

24

Spring, Compression

3234359

$8.79

25

SWITCH

3233835

Unavailable

26

RING, RETAINING

3233834

$10.39

27

Bellcrank

3234232

$23.99

28

SCREW

3234114

$7.19

29

PLUG, MAGNETIC

3234529

Unavailable
