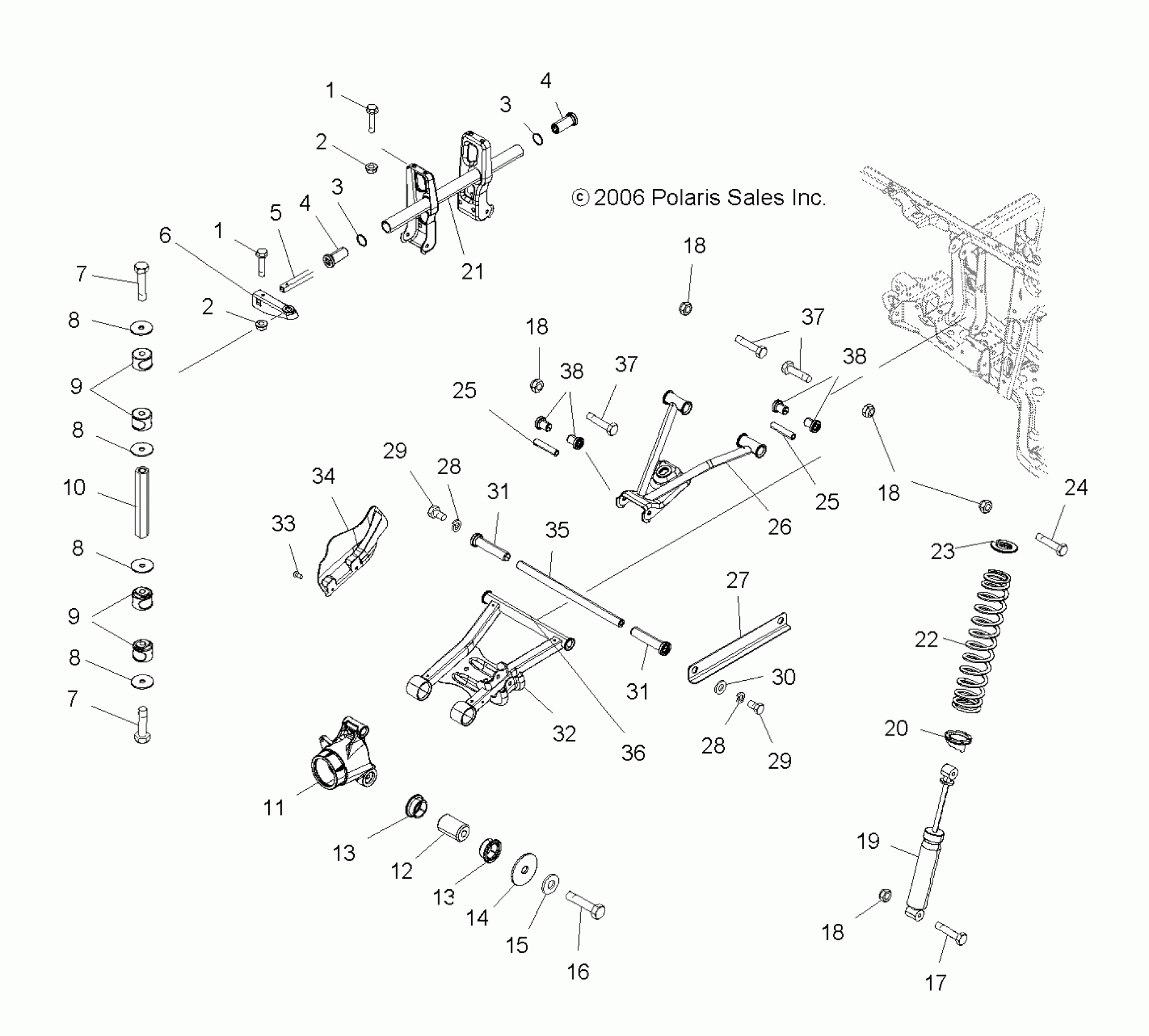

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY SUSPENSION, REAR - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVSUSPRR800EFI) Diagram

#

Description
Price

1

BOLT, FLANGE

7518341

$4.79

1

BOLT, FLANGE

7518341

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

Washer

7555939

Unavailable

3

Washer

7555939

Unavailable

4

Bushing, Stabilizer Tube

5434549

$8.48

4

Bushing, Stabilizer Tube

5434549

$8.48

5

BAR, STABILIZER TUBE, BLACK

5334114-067

$111.33

6

Arm, Stabilizer Bar, Black

1580107-067

$62.92

7

SCREW

7517231

$7.19

7

SCREW

7517231

$7.19

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

9

Bushing, Stabilizer, Link

5436576

Unavailable

9

Bushing, Stabilizer, Link

5436576

Unavailable

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

11

CARRIER, WHEEL BEARING

5135563

$71.99

12

Bushing, Bearing Carrier

5631142

$23.16

13

Bushing, Control, Lower

5434550

$4.62

13

Bushing, Control, Lower

5434550

$4.62

14

WASHER, FLAT

7555740

$1.59

15

WASHER-LOCK, 7/16-B

7552614

$1.59

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

17

Screw

7515415

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

19

SHOCK, REAR

7043100

$87.99

20

CAM, ADJUSTING, SPRING

5630551

$31.99

21

Support, Stabilizer, Black

1541801-067

$117.37

22

Spring, Compression, Rear, Black

7043091-067

$97.76

23

Retainer, Spring

5631887

$10.03

24

Screw

7515433

$1.59

25

SHAFT, A-ARM, SHORT

5020826

$11.99

25

SHAFT, A-ARM, SHORT

5020826

$11.99

26

Arm, Control, Upper, Black, LH

1014320-067

$95.99

26

Arm, Control, Upper, Black, RH

1014321-067

$95.99

27

Strap, Black

5245140-067

Unavailable

28

Washer, Spring Lock

7552603

$1.49

28

Washer, Spring Lock

7552603

$1.49

29

Screw

7512492

$1.49

29

Screw

7512492

$1.49

30

WSHR-.813X.406X.105-Y

7555832

$2.39

31

Bushing, A-Arm, Long

5434551

$5.01

31

Bushing, A-Arm, Long

5434551

$5.01

32

Arm, Control, Lower, Black, LH

1015117-067

Unavailable

32

Arm, Control, Lower, Black, RH

1015118-067

Unavailable

33

Screw

7512084

$1.49

34

SHIELD, CV, REAR, BLACK, LH

5435008-070

$23.99

34

SHIELD, CV, REAR, BLACK, RH

5435009-070

$23.99

35

Shaft, A-Arm

5133806

$30.79

36

Fitting, Lub

7080433

$1.49

37

BOLT

7515472

$2.39

37

BOLT

7515472

$2.39

38

Bushing, A-Arm, Short

5434548

$2.38

38

Bushing, A-Arm, Short

5434548

$2.38
