- SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY
SUSPENSION, FRONT - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVAARM800EFI)

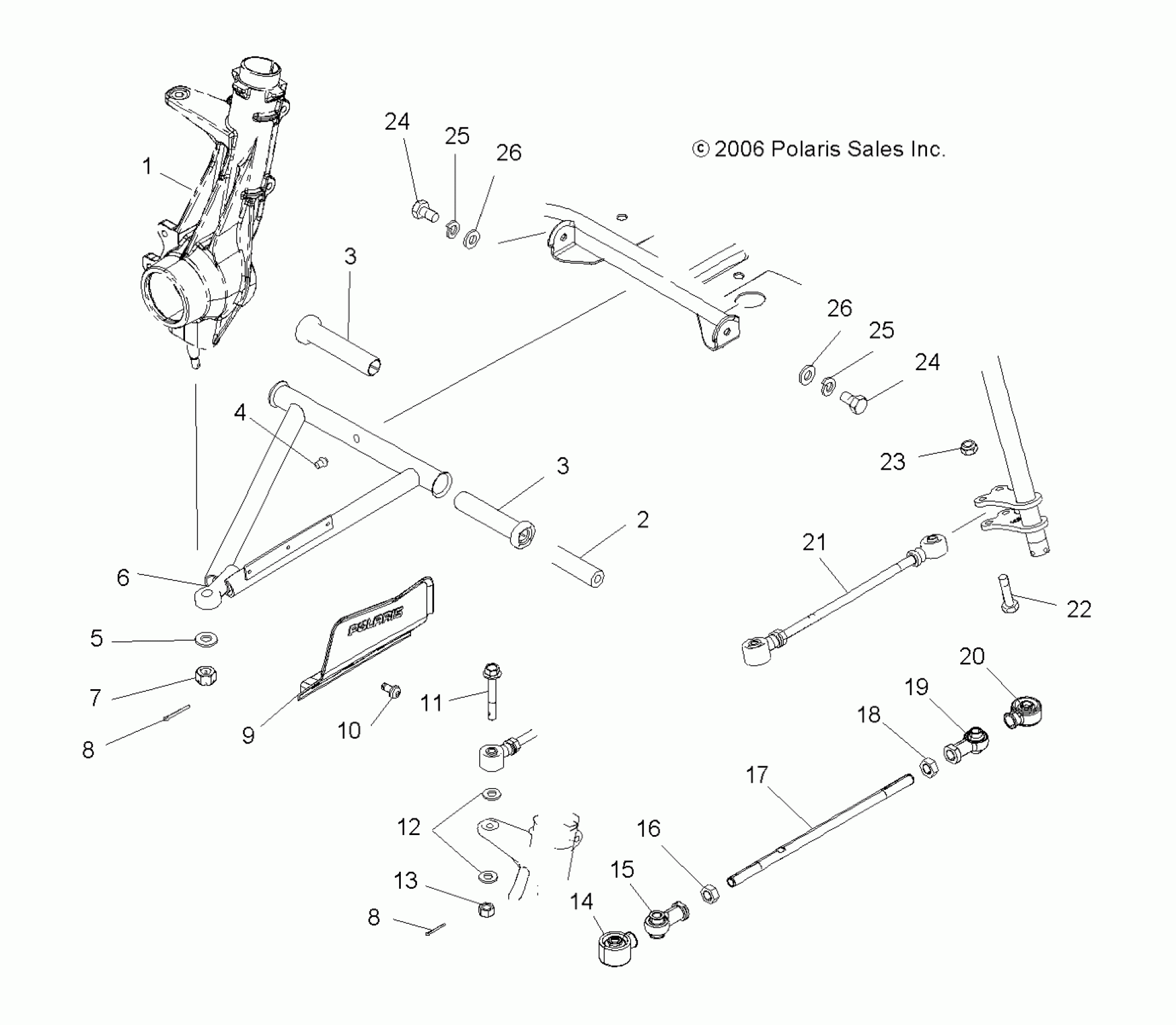

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY SUSPENSION, FRONT - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVAARM800EFI) Diagram
#
Description
Price
1
SUPPORT, HUBSTRUT [See Front Strut Page, Ref. 12]
-------
Unavailable
2
Shaft, A-Arm
5133806
$30.79
3
Bushing, A-Arm, Long
5434551
$5.01
3
Bushing, A-Arm, Long
5434551
$5.01
4
Fitting, Lub
7080433
$1.49
5
Washer [If built before 10/27/06]
7555957
$4.79
6
Kit, A-Frame, RH [Incl. 2,3,8,24,25]
2202866
$169.99
6
Kit, A-Frame, LH [Incl. 2,3,8,24,25]
2202865
$135.99
7
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
8
Pin, Cotter
7661203
$1.49
8
Pin, Cotter
7661203
$1.49
9
Shield, CV Front, Black, LH
5435028-070
$23.99
9
Shield, CV Front, Black, RH
5435029-070
$23.99
10
Screw
7512084
$1.49
11
Bolt
7517909
$5.59
12
Washer
7556099
$1.59
13
Nut
7547177
$2.39
14
Boot, Seal, Rod End
5412929
$11.19
15
Rod End, LH
7061138
$51.99
16
Nut, Jam, LH
7547028
$2.39
17
Tie Rod
5134242
$39.99
18
Nut, Jam
7542711
$2.39
19
ROD END, RH
7061139
$55.99
20
Boot, Seal, Rod End
5412928
$11.32
21
Asm., Tie Rod [Incl. 15-20]
1822851
$103.99
22
Screw
7515415
$1.49
23
Nut, Nylok
7542439
$1.49
24
Screw
7512492
$1.49
24
Screw
7512492
$1.49
25
Washer, Spring Lock
7552603
$1.49
25
Washer, Spring Lock
7552603
$1.49
26
WSHR-.813X.406X.105-Y
7555832
$2.39
26
WSHR-.813X.406X.105-Y
7555832
$2.39
