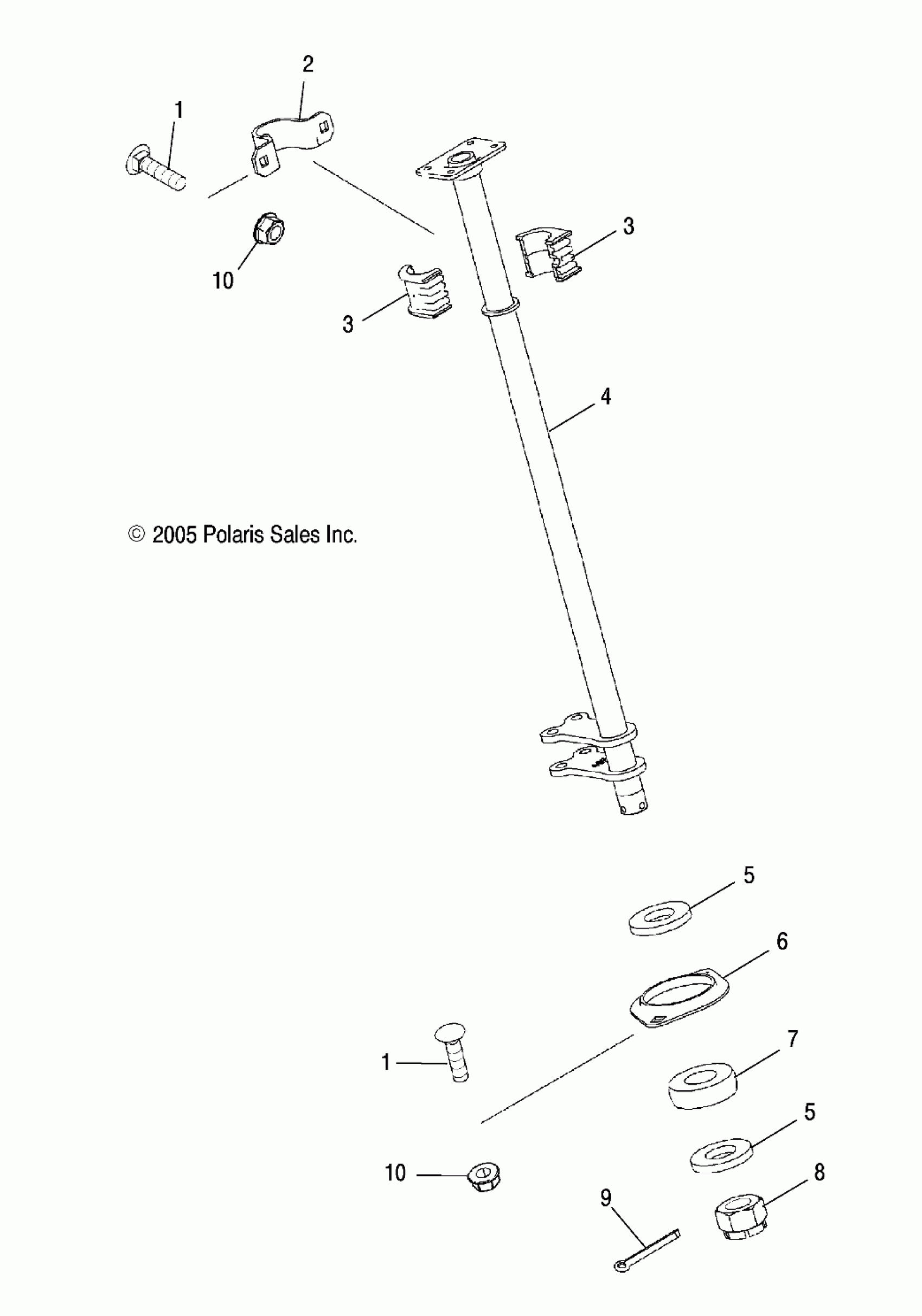

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY STEERING POST and TIE RODS - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (4999200299920029C04) Diagram

#

Description
Price

1

BOLT

7517428

$2.38

1

BOLT

7517428

$2.38

2

Bracket, Upper, Bushing

5246732

$32.37

3

Bushing, Upper

5433866

$6.35

3

Bushing, Upper

5433866

$6.35

4

Post, Steering, Black

1822630-067

$226.65

5

Bushing

7556162

$3.97

5

Bushing

7556162

$3.97

6

Flangette

5222393

$20.22

7

Bearing

3514352

$31.75

8

Nut, Slotted, Hex

7547158

Unavailable

9

Pin, Cotter

7661633

Unavailable

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76
