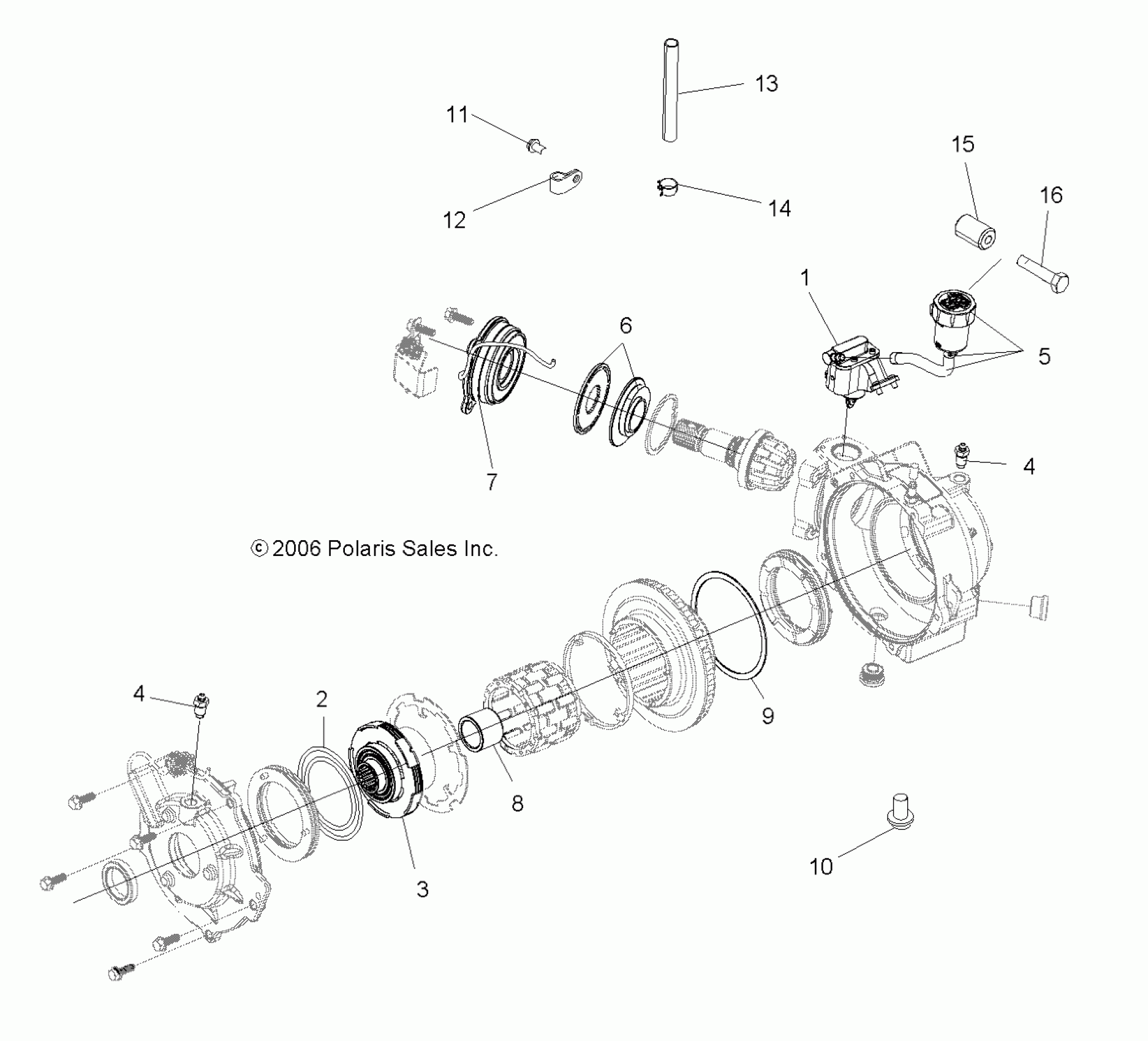

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY GEARCASE, FRONT (ACTIVE DESCENT CONTROL)(If Built Before 7/17/06) - MN76AF/AT/AY (49ATVGEARCASEFWBD800EFI) Diagram

Gearcase, FWBD [Incl. All Less 10-16]

1332387

Unavailable

Asm., Pump, FWBD [Incl. Pump Only]

3234429

$2,099.99

Kit, Piston Seal, FWBD [Incl. Inner, Outer Seal]

3234430

$102.99

Kit, Gear, Ring and Pinion [Incl. Drive/Driven Plates, Output Hub]

3235058

$699.99

Kit, Bleeder Valve, FWBD [Incl. 2 Valves]

3234432

Unavailable

Kit, Bleeder Valve, FWBD [Incl. 2 Valves]

3234432

Unavailable

Asm., Remote Reservoir, FWBD [Incl. Reservoir, Cap, Hose, Clamps]

3234433

$2,099.99

Kit, Cam and Armature, FWBD [Incl. Cam, Armature]

3234434

$179.99

Asm., Pinion Cover, FWBD [Incl. Cover, Seal]

3234435

$232.74

Bushing

3234436

$27.78

SPACER-RING GEAR

3234437

$19.84

SCREW

7517632

$5.56

SCREW

7512024

$4.76

CLAMP, HOSE

7080693

$5.56

Line, Fuel

8450003-1525

Unavailable

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

Spacer

5133658

$7.14

Screw

7518306

$3.97
