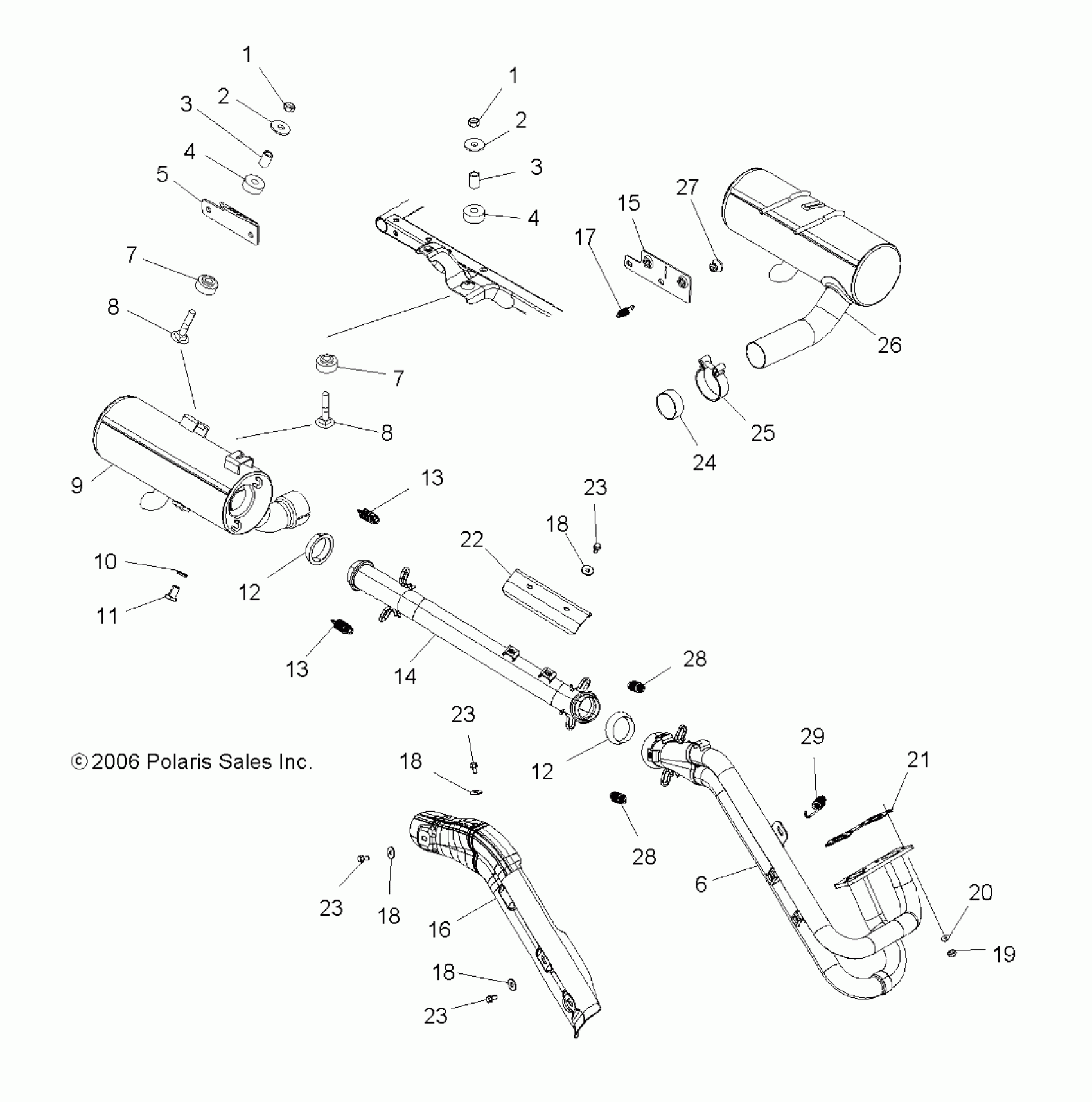

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY EXHAUST SYSTEM, DUAL - A07MH76AL/MN76AF/AT/AY (49ATVEXHAUST800EFIDL) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

BUSHING

5010192

$6.39

3

BUSHING

5010192

$6.39

4

WASHER, RUBBER

5410436

$1.59

4

WASHER, RUBBER

5410436

$1.59

5

BRACKET, SILENCER, FRAME

5241663

$10.39

6

Pipe, Exhaust, Front, Dual, Black

1261730-029

Unavailable

7

DAMPENER, VIBRATION

5412659

$3.99

7

DAMPENER, VIBRATION

5412659

$3.99

8

BOLT

7515316

$2.39

8

BOLT

7515316

$2.39

9

Exhaust, Silencer, RH [MN76AF]

1261579

Unavailable

9

Exhaust, Silencer, RH, Black [MH76AL][MN76AT]

1261736-489

Unavailable

10

WASHER, CLEAN OUT

7556230

$1.49

11

BOLT

7512666

$2.39

12

Seal, Exhaust, Socket

3610047

$36.41

12

Seal, Exhaust, Socket

3610047

$36.41

13

SPRING

7041804

$7.99

13

SPRING

7041804

$7.99

14

Pipe, Exhaust, Black

1261729-029

Unavailable

15

Bracket, Silencer, Mount

5248723

Unavailable

16

Shield, Exhaust, Silver [MH76AL][MN76AF]

5250299-385

$27.79

17

Spring

7042266

$6.99

18

Washer

7555935

$2.39

18

Washer

7555935

$2.39

18

Washer

7555935

$2.39

18

Washer

7555935

$2.39

19

NUT

7547076

$2.60

20

Washer, Lock

7556111

$1.59

21

GASKET

5811511

$48.56

22

Shield, Heat

5244014

$39.99

23

SCREW

7518490

$1.49

23

SCREW

7518490

$1.49

23

SCREW

7518490

$1.49

23

SCREW

7518490

$1.49

24

Seal, Exhaust

5246375

$40.46

25

Clamp, Exhaust

7081284

Unavailable

26

Exhaust, Silencer, LH [MN76AF]

1261448

Unavailable

26

Exhaust, Silencer, LH, Black [MH76AL][MN76AT]

1261735-489

Unavailable

27

Grommet, Silencer, Mount

5412727

Unavailable

28

SPRING-EXHAUST

7041789

$7.99

28

SPRING-EXHAUST

7041789

$7.99

29

Spring, Exhaust

7042029

$4.84
