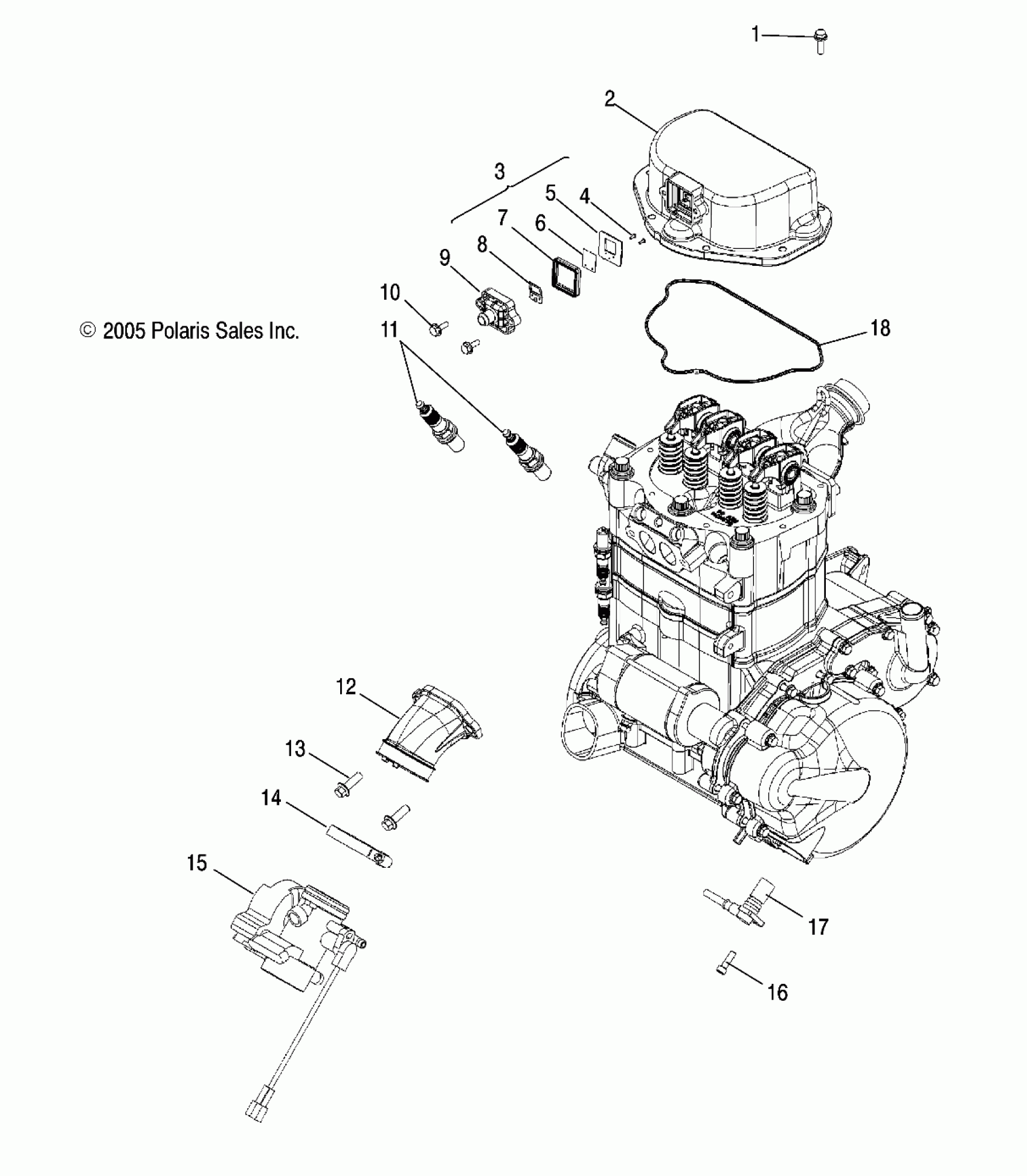

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY ENGINE, THROTTLE BODY MOUNTING - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (4999200299920029D09) Diagram

#

Description
Price

1

SCREW

7516822

$2.39

2

Cover, Valve

5134427

Unavailable

3

ASM-REED W/GASKET [INCL. 4-8]

3021352

$28.32

4

RIVET

-------

Unavailable

5

PLATE, REED, BREATHER

-------

Unavailable

6

REED, CASE BREATHER

-------

Unavailable

7

GASKET, BREATHER

-------

Unavailable

8

BRACKET, REED SUPPORT

-------

Unavailable

9

Cover, Breather

5432533

Unavailable

10

SCREW

7517277

$3.19

11

PLUG, SPARK, CHAMPION RC7YC3

3021671

$3.99

12

Adapter

1253564

Unavailable

13

Screw

7518488

Unavailable

14

Clamp, Hose

7081193

Unavailable

15

Asm., Throttle Body

1202836

Unavailable

15

Sensor, Throttle Position [Must also order O-Ring]

2410342

Unavailable

15

O-Ring, TPS [Used w/2410342]

5413812

$1.99

16

Screw

7517384

$8.79

17

Sensor, Crank Position

2410513

$99.99

18

Seal, Valve Cover

5412632

Unavailable
