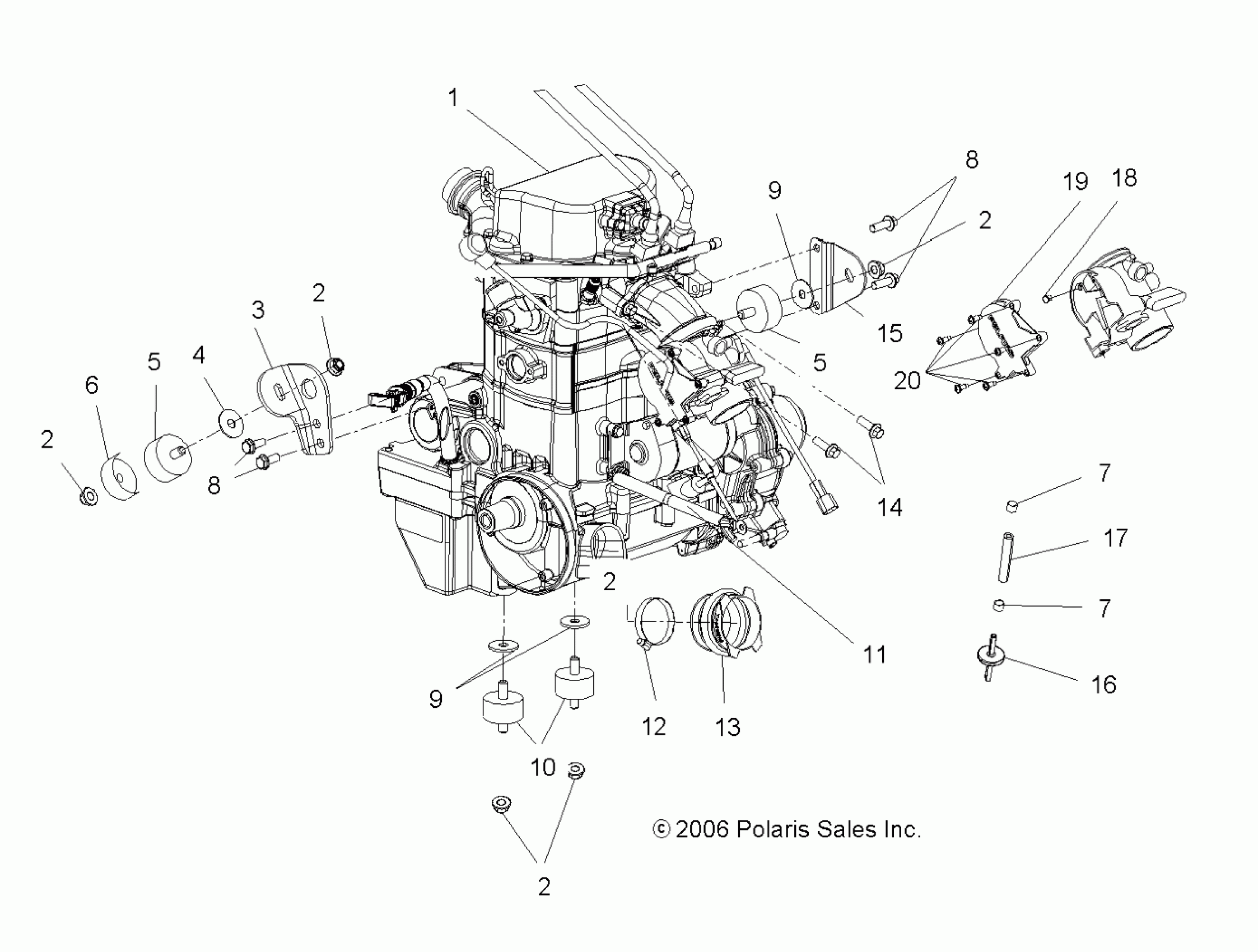

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY ENGINE, MOUNTING - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVENGINE800EFI) Diagram

Description

Price

Kit, Short Block, 800 EFI NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warr

2203066

Unavailable

NUT, FLANGE LOCK

7547108

$4.76

NUT, FLANGE LOCK

7547108

$4.76

NUT, FLANGE LOCK

7547108

$4.76

NUT, FLANGE LOCK

7547108

$4.76

NUT, FLANGE LOCK

7547108

$4.76

MOUNT, ENGINE, LOWER, FRONT, BLACK

5244771-067

$144.99

WASHER

7555823

Unavailable

Mount, Rubber, Top

3110044

$44.51

Mount, Rubber, Top

3110044

$44.51

BRACKET, TORQUE STOP

5245043

$17.99

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

Bolt

7518364

$1.59

Bolt

7518364

$1.59

WASHER, FLAT

7555815

$3.97

WASHER, FLAT

7555815

$3.97

Mount, Rubber, Rear

3021119

Unavailable

Cable, Ground, Starter/Frame

4011139

$44.51

CLAMP, HOSE

7080451

$7.14

BOOT, INTAKE

5412634

$11.32

SCREW

7516734

$3.17

BRACKET, MOUNT, ENGINE, TOP

5247368

$54.99

VALVE, CHECK

7052038

$11.32

HOSE

8450113-04

$12.13

Guide, Throttle Cable

3131514

$32.37

ASM., COVER AND O-RING

1202578

Unavailable

SCREW

3131515

$10.32
