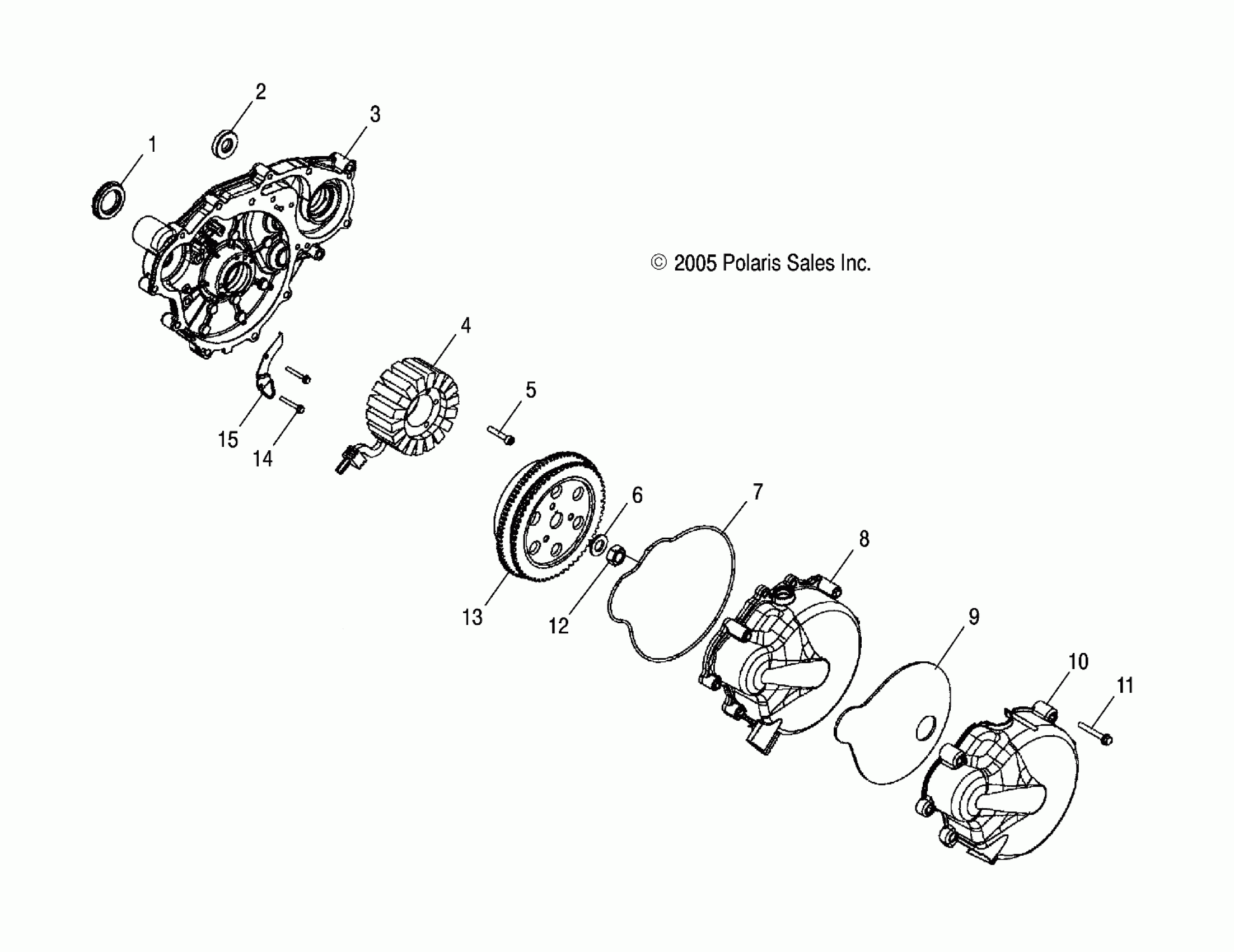

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY ENGINE, MAGNETO - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (4999200299920029D14) Diagram

#

Description
Price

1

SEAL, FLANGED

5412881

$32.37

2

SEAL, OIL

5412455

$24.27

3

Pin, Dowel

7663002

$4.76

3

Bushing

3514378

$12.30

3

Asm., Engine Cover, Magneto

1203096

$261.41

4

Stator

4011609

Unavailable

5

SCREW

7517848

$5.56

6

WASHER

7555907

$5.56

7

O-Ring

5412458

Unavailable

8

BUSHING

3514553

Unavailable

8

Asm., Cover, Stator

1203334

Unavailable

9

COVER, SOUND DAMPENING

5813050

$32.37

10

COVER, STATOR, OUTER

5436652

Unavailable

11

Screw

7517950

$5.56

12

NUT

7547213

$4.76

13

Flywheel

4010912

$1,196.99

14

Screw

7517950

$5.56

15

Bracket, Stator, Wire Holddown

5245364

$49.99
