- SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY
ENGINE, CRANKCASE and CRANKSHAFT - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (4999200299920029D06)

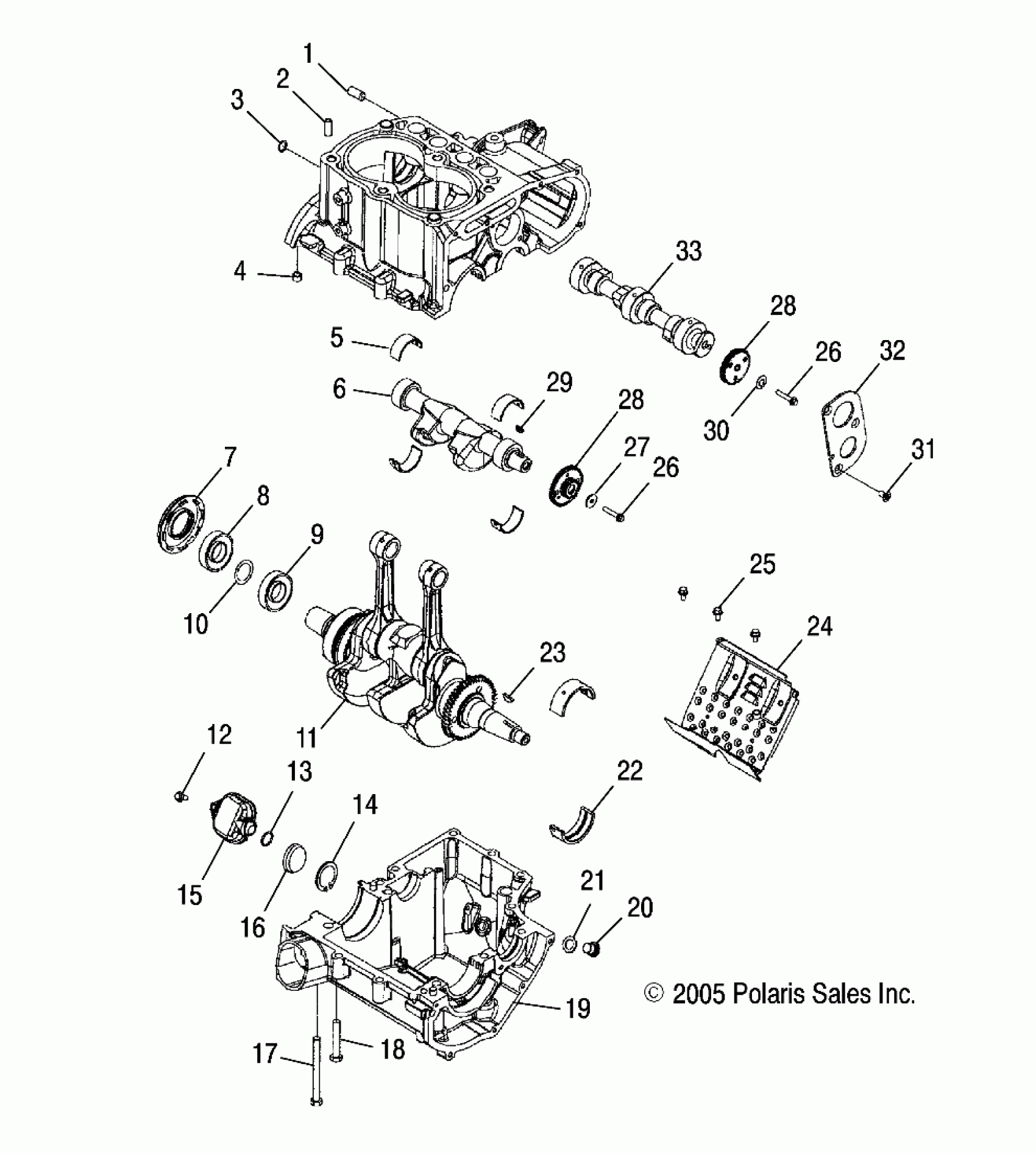

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY ENGINE, CRANKCASE and CRANKSHAFT - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (4999200299920029D06) Diagram
#
Description
Price
1
Plug
7518007
$5.65
2
DOWEL
7661175
$5.59
3
PLUG-EXPANSION,19MM
7051530
$7.19
4
PIN-DOWEL,M8 X 16 SS
7663001
$11.19
5
BEARING
5132753
Unavailable
6
Shaft, Balance
5134837
$203.99
7
SEAL
5412676
$39.99
8
BEARING, BALL
3514361
Unavailable
9
BEARING, BALL
3514318
$43.99
10
BUSHING
7556194
$3.99
11
Kit, Crankshaft
2203068
Unavailable
12
BOLT
7516603
$10.39
13
SEAL, O-RING
5812016
$3.19
14
RING, RETAINING
7710512
$3.99
15
ASM., OIL PICKUP
1202663
$51.99
16
PLUG
3060004
$15.19
17
SCREW
7517792
$2.39
18
SCREW
7517793
$5.59
19
Kit, Crankcase
2203300
Unavailable
20
PLUG, SOCKET
7052306
$15.37
21
WASHER, COPPER
5812232
$1.59
22
BEARING
3585704
$28.56
23
KEY, WOODRUFF
7721117
$24.99
24
PLATE, BAFFLE
5211785
$39.99
25
SCREW
7518045
$10.39
26
SCREW
7517865
$11.19
26
SCREW
7517865
$11.19
27
WASHER-RETAINING,8.5X28X3
7555982
Unavailable
28
KIT, GEAR SET
2203106
Unavailable
28
KIT, GEAR SET
2203106
Unavailable
29
KEY, WOODRUFF
7721131
$23.99
30
WASHER, SPRING
7556183
$9.59
31
SCREW
7517598
$11.33
32
PLATE, THRUST
5244286
$51.99
33
Kit, Camshaft [Incl. Cam and Lifters]
2202918
$549.99
