Description

Price

1

Bolt

7517975

$5.56

2

U-Clip

7547197

$6.19

3

Asm., Fan [If built after 10/05/06]

2410413

$267.13

3

Asm., Fan [If built before 10/05/06]

2410366

Unavailable

4

Screw w/Washer

7547220

Unavailable

5

HOSE CLAMP, RED

7080003

$1.19

6

Line

8450040-600

$72.84

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

10

Cap, Pressure

1240044

$48.56

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

12

Guard, Hose

5521597

Unavailable

13

Hose, Engine, Upper

5412391

$44.51

14

Trim, Edge

5521131

Unavailable

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

TANK-SURGE

5436936

$80.94

19

FITTING, 90 DEGREE

7052065

$7.14

20

Line, Fuel

8450003-1525

$89.99

21

Guard, Hose [If built after 10/05/06]

5521749

$3.81

22

Bracket, Radiator Mount, Upper

5246656

Unavailable

23

Hose, Filler Neck

5412311

$21.99

24

Guard, Hose [Qty. 1 if built after 10/05/06]

5521644

Unavailable

24

Guard, Hose [Qty. 1 if built after 10/05/06]

5521644

Unavailable

25

T-Connector

7052397

$23.81

26

Hose, Lower Radiator

5412392

Unavailable

27

ASM., GROMMET AND INSERT

5411975

$3.17

28

Screw

7515179

$2.38

29

Radiator [If built before 10/05/06]

1240190

$461.41

29

Radiator [If built after 9/04/06]

1240301

$461.41

30

Bracket, Radiator, Lower, Black

5245773-067

Unavailable

31

SCREW

7517386

$1.19

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

33

Valve, Drain

7052296

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Hose, Engine, Lower

5412585

$56.65

36

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

37

Retainer, Hose

7042089

$6.98

38

Shroud, Fan

5434853

Unavailable

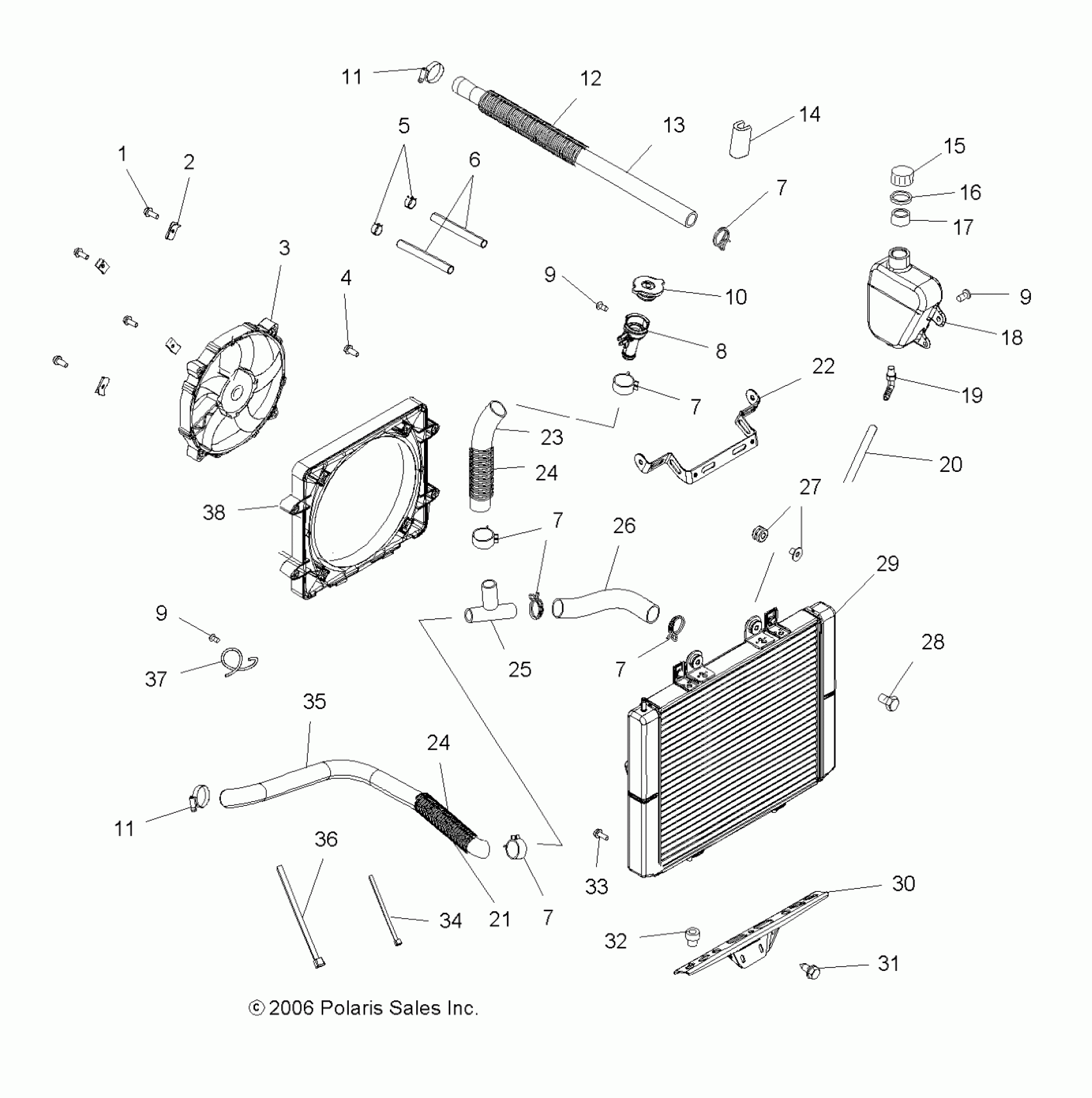

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY COOLING SYSTEM - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVCOOL800EFI) Diagram

Bolt

U-Clip

Asm., Fan [If built after 10/05/06]

Asm., Fan [If built before 10/05/06]

Screw w/Washer

HOSE CLAMP, RED

Line

Clamp

Clamp

Clamp

Clamp

Clamp

Filler, Neck

Screw

Screw

Screw

Cap, Pressure

CLAMP-HOSE(WORM DR)25-40MM

CLAMP-HOSE(WORM DR)25-40MM

Guard, Hose

Hose, Engine, Upper

Trim, Edge

CAP-OVER FLOW BOTTLE,DRILLED

GASKET-OVERFLOW CAP

PLUG-CAP 9X(GREEN) FLEX TEMP

TANK-SURGE

FITTING, 90 DEGREE

Line, Fuel

Guard, Hose [If built after 10/05/06]

Bracket, Radiator Mount, Upper

Hose, Filler Neck

Guard, Hose [Qty. 1 if built after 10/05/06]

Guard, Hose [Qty. 1 if built after 10/05/06]

T-Connector

Hose, Lower Radiator

ASM., GROMMET AND INSERT

Screw

Radiator [If built before 10/05/06]

Radiator [If built after 9/04/06]

Bracket, Radiator, Lower, Black

SCREW

BUSHING-MOUNT,LOWER RADIATOR

Valve, Drain

CABLE-TIE,DIA12-50MM,WTHR-RES.

Hose, Engine, Lower

CABLE-TIE,25-76MM,WEATH.-RES.

Retainer, Hose

Shroud, Fan
